Welcome
Database Management System

Today

1. Review Topics
2. Review Syllabus

Module 1
Introduction to Databases Management System

Before 1900: Manual Systems

• Before 1440 - Manual Writing: Information was written by hand, making copying and dissemination extremely slow and labor-intensive
• 1440 - Printing Press: Invented by Johannes Gutenberg, it enabled faster copying and dissemination of written information
• 1800s - Shipping Letters: Physical mail was sent by ship. A letter from here to Hawaii could take up to two weeks to arrive

20th Century: The Digital Revolution

• 1970 - Relational Databases: Edgar F. Codd introduced the relational model, which became the foundation of modern database management systems (DBMS)
• 1980s - SQL Standardization: Structured Query Language (SQL) became the standardized way to interact with relational databases
• 1990s - Client-Server Databases: Systems like Oracle and Microsoft SQL Server facilitated centralized databases accessible by multiple users over a network

21st Century: Connectivity and Real-Time Revolution

• 2000s - NoSQL Databases: Non-relational databases like MongoDB and Cassandra emerged to handle unstructured and semi-structured data
• 2010s - Cloud Databases: Platforms like AWS and Azure enabled scalable, distributed databases accessible over the internet
• 2010s - Big Data: Systems like Hadoop and Spark allowed storage and processing of massive datasets across distributed environments
• 2020s - AI Integration: Artificial intelligence began improving query optimization, data analysis, and automated insights in databases
• 2020s - Edge Databases: Localized databases for IoT and real-time applications reduced latency and improved data processing efficiency

What is Databases Management System 🤔

Databases solve problems of managing, storing, and retrieving vast amounts of data efficiently.

• Why centralize data? To avoid duplication and inconsistencies
• Why organize data? To make access faster and more reliable
• Why automate data management? To save time and reduce errors

Why Databases Management System 🤔

More reasons

• Explosion of Data: The amount of data generated globally is growing exponentially, requiring systems that can store, manage, and retrieve it efficiently
• Core Value Across Domains: Data is the foundation of industries like healthcare, finance, e-commerce, and social media, driving insights and innovation
• Reliability and Efficiency: DBMS ensure data integrity, availability, and security in critical applications
• Provides a foundation for understanding unstructured data and the evolution of NoSQL databases

Why Relational Databases Management System?

Module 2
ERM and SQL

Every Database Management System Starts with Requirements

Requirement

The system should allow users to rent bikes easily

Requirement

The system should allow registered users to rent a bike by selecting a location, choosing an available bike, and completing payment through the application within three steps

Requirement

Purpose:Bike Rental Database System to Manage rentals and track customers, bikes, and transactions

• Track the availability of bikes, including their unique ID, condition, and location
• Log rental transactions, incl. the bike ID, customer ID, rental start and return time
• Maintain customer records, including name, contact details, and rental history

Translating Requirements into Entities and Relationships

What Are Entities?

What Are Entities?

Entities are nouns

Examples: Customer, Bike, Rental Transaction

What Are Relationships?

Definition: Relationships define how entities are connected

What Are Relationships?

Relationships are verbs

Examples: Rents, Is part of

Question?

Can Two Entities Have the Same Name?

Conceptually (ERD) yes, technically no

Are Entity Names Case-Sensitive?

Does it matter if you name an entity Customer or customer

Conceptually (ERD) no, technically it depends (Windows MySQL: no, Unix MySQL: yes)

Is it an Entity or a Relationship?

Question: A "Customer rents a Bike."

Answer: This is a Relationship connecting the "Customer" and "Bike" entities.

Is it an Entity or a Relationship?

Question: A "Bike."

Answer: This is an Entity representing a real-world object with attributes like "BikeID," "Model," and "Color."

Requirement

A travel booking system should allow users to search for, compare, and book flights, hotels, and rental cars. Users must be able to filter results by price, date, and location, and securely complete payments

Requirement

A travel booking system should allow users to search for, compare, and book flights, hotels, and rental cars. Users must be able to filter results by price, date, and location, and securely complete payments

Question?

Translating Textual Requirements into Visual Requirements

Entity-Relationship Diagram (ERD)

Each Entity has a list of Attributes

Technical Mandatory Attributes

ID Attributes: IDs are technically mandatory and serve as the primary key to uniquely identify each entity record.

ERD with primary key attribute

Conceptual Attributes

Description: Optional attributes provide additional details about an entity but are not required to uniquely identify it

ERD with additional attributes

Each Attribute Has a Data Type

Entity Attributes with Data Types

SQL Standard Data Types

Question?

What Data Type Do You Recommend?

INTEGER, BIGINT, DECIMAL(p, s), FLOAT, CHAR(n), VARCHAR(n), TEXT, DATE, TIME, TIMESTAMP, BOOLEAN, BLOB

Question?

Each Attribute Can Have Constraints

Entity Attributes with Constraints

SQL Attribute Constraints

Question?

From ERD to Database Schema

Conceptual vs. Technical (SQL) Terms

Question?

Practice SQL Queries

    CREATE TABLE Customer (
        CustomerID INTEGER PRIMARY KEY AUTOINCREMENT,
        Name VARCHAR(100) NOT NULL,
        Email VARCHAR(100) UNIQUE,
        Phone VARCHAR(15)
    );

    CREATE TABLE Bike (
        BikeID INTEGER PRIMARY KEY AUTOINCREMENT,
        Model VARCHAR(100) NOT NULL,
        Color VARCHAR(50),
        Condition VARCHAR(50),
        Availability BOOLEAN DEFAULT TRUE
    );

    CREATE TABLE RentalTransaction (
        RentalID INTEGER PRIMARY KEY AUTOINCREMENT,
        CustomerID INTEGER NOT NULL,
        BikeID INTEGER NOT NULL,
        BookingDate DATE NOT NULL,
        ReturnDate DATE,
        FOREIGN KEY (CustomerID) REFERENCES Customer(CustomerID),
        FOREIGN KEY (BikeID) REFERENCES Bike(BikeID)
    );


Today: January 17, 2025

• Review Questions
• Case Study:
• Plant Watering Database Application
• Entity Relationship Diagram
• SQLite: Embedded Device Database
• SQLite: Installation
• SQLite: CRUD Query
• Review Lab 1, Homework 1

Review Questions

Why must Front-End, Back-End, and Database data types be aligned?

Examples of Misaligned Data Types

Challenges of Misaligned Data Types

• Validation Errors
• Data Loss
• Format Mismatch
• Database Rejections
• Unexpected Behavior

Entity-Relationship Diagram: Quiz (1/3)

Question 1: What does an entity represent in an ERD?

• A. A database table
• B. A real-world object or concept
• C. A relationship between tables
• D. A data attribute

Correct Answer: B. A real-world object or concept

Entity-Relationship Diagram: Quiz (2/3)

Question 2: What is the purpose of a relationship in an ERD?

• A. To store data
• B. To define data types
• C. To show how entities connect
• D. To create unique identifiers

Correct Answer: C. To show how entities connect

Entity-Relationship Diagram: Quiz (3/3)

Question 3: What is the purpose of the primary key in a database?

• A. To allow duplicate rows in a table
• B. To uniquely identify each row in a table
• C. To establish a relationship between two tables
• D. To enforce data types for attributes

Correct Answer: B. To uniquely identify each row in a table

Database Quiz: Tables (1/3)

Question 1: What does a table in a database represent?

• A. A collection of databases
• B. A structured collection of rows and columns
• C. A single data type
• D. A relationship between entities

Correct Answer: B. A structured collection of rows and columns

Database Quiz: Table Attributes (2/3)

Question 2: What does a table attribute represent?

• A. A row in the table
• B. A unique identifier
• C. A column that defines a property of the entity
• D. A collection of tables

Correct Answer: C. A column that defines a property of the entity

Database Quiz: Data Types (3/3)

Question 3: Which of the following is a valid SQL data type?

• A. INTEGER
• B. COLUMN
• C. TABLE
• D. RELATION

Correct Answer: A. INTEGER

Database Quiz: Tables (1/3)

Question 1: What does a table in a database represent?

• A. A collection of databases
• B. A structured collection of rows and columns
• C. A single data type
• D. A relationship between entities

Correct Answer: B. A structured collection of rows and columns

Database Quiz: Constraints (1/3)

Question 1: What is the purpose of a primary key?

• A. To ensure a column accepts NULL values
• B. To uniquely identify each row in a table
• C. To define relationships between databases
• D. To store default values

Correct Answer: B. To uniquely identify each row in a table

Database Quiz: Constraints (2/3)

Question 2: What does the NOT NULL constraint ensure?

• A. A column cannot have duplicate values
• B. A column cannot have NULL values
• C. A column must be a primary key
• D. A column stores only numeric values

Correct Answer: B. A column cannot have NULL values

Database Quiz: SQL Queries (1/2)

Question 1: How do you select all bicycles that are available?

• A. SELECT * FROM Bicycle WHERE Available = TRUE;
• B. SELECT BicycleID FROM Bicycle;
• C. SELECT * FROM Bicycle WHERE Available = FALSE;
• D. SELECT All FROM Bicycle;

Correct Answer: A. SELECT * FROM Bicycle WHERE Available = TRUE;

Database Quiz: SQL Queries (2/2)

Question 2: How do you update bicycle 2 to set it as unavailable?

• A. UPDATE Bicycle SET Available = TRUE WHERE BicycleID = 2;
• B. UPDATE Bicycle SET Available = FALSE WHERE BicycleID = 2;
• C. UPDATE Bicycle SET BicycleID = 2 WHERE Available = FALSE;
• D. UPDATE Bicycle SET Availability = FALSE;

Correct Answer: B. UPDATE Bicycle SET Available = FALSE WHERE BicycleID = 2;

Question?

Case Study

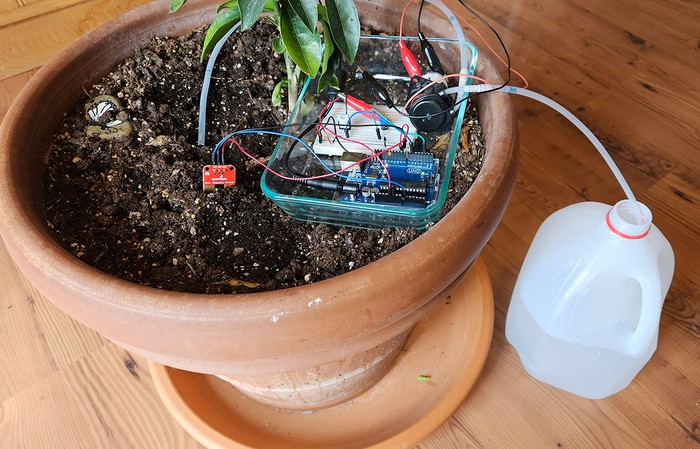

Plant Watering Database Application

Plant Watering Database Application

Database Requirements

• Store sensor readings
• Save plant-specific moisture thresholds
• Log watering events and timestamps

What entities do you recommend?

PlantUML Template Editor

@startuml
entity "Entity1" as E1 {
    +Attribute1 :
    +Attribute2 :
    +Attribute3 :
}

entity "Entity2" as E2 {
    +Attribute1 :
    +Attribute2 :
    +Attribute3 :
}

entity "Entity3" as E3 {
    +Attribute1 :
    +Attribute2 :
    +Attribute3 :
}
@enduml


Which SQL Database do you Recommend?

Why SQLite?

• Lightweight and fast
• Zero configuration required
• Self-contained, no server needed
• Widely used in embedded systems
• Reliable with extensive testing
• Open source and free to use

Chronology of SQLite Versions

• Version 1.0 (2000): Initial release, basic SQL support
• Version 2.0 (2001): Added transactions and improved stability
• Version 3.0 (2004): Major update with support for UTF-8, BLOBs, and more queries

View the complete SQLite timeline

Install SQLite

• SQLite Download Page
• Download SQLite Tools for Windows (x64)
• Unzip the downloaded file
• Add the folder to your system's PATH variable for command-line use

SQLite Workflow

1. Create Database:

sqlite3 database_name.db


2. Create Table:

CREATE TABLE table_name (
    column1 datatype,
    column2 datatype,
    ...
);


3. Insert Data:

INSERT INTO table_name (column1, column2, ...)
VALUES (value1, value2, ...);


Executing SQL Commands

• From a File:

sqlite3 database_name.db < script.sql


• Directly in Command Line:

sqlite3 database_name.db
> .read script.sql
> SELECT * FROM table_name;


SQLite Dot Commands

• .databases: Lists all attached databases
• .tables: Displays all tables in the current database
• .schema: Shows the schema of a table or the entire database
• .read: Execute SQL scripts without typing them manually (e.g., create.sql).
• .exit: Exits the SQLite shell
• .help: Lists all available dot commands

Documentation

SQL Query: Plants Needing Water

SELECT
    PlantID,
    Name,
    WaterLevel,
    WaterThreshold
FROM
    SensorData
WHERE
    WaterLevel < (SELECT WaterThreshold FROM Plant WHERE Plant.PlantID = SensorData.PlantID)
ORDER BY
    Name;


Plant Watering Application: ERD to SQL (1/3)

                entity "Plant" as Plant {
                    +PlantID : INTEGER
                    +Name : VARCHAR(100)
                    +WaterThreshold : FLOAT
                }


                CREATE TABLE Plant (
                    PlantID INTEGER PRIMARY KEY,
                    Name VARCHAR(100) NOT NULL,
                    WaterThreshold FLOAT
                );


Plant Watering Application: ERD to SQL (2/3)

                entity "Sensor" as Sensor {
                    +SensorID : INTEGER
                    +Location : VARCHAR(100)
                    +Type : VARCHAR(50)
                }


                CREATE TABLE Sensor (
                    SensorID INTEGER PRIMARY KEY,
                    Location VARCHAR(100),
                    Type VARCHAR(50)
                );


                entity "SensorData" as SensorData {
                    +SensorDataID : INTEGER
                    +SensorID : INTEGER
                    +PlantID : INTEGER
                    +WaterLevel : FLOAT
                    +Timestamp : DATETIME
                }


                CREATE TABLE SensorData (
                    SensorDataID INTEGER PRIMARY KEY,
                    SensorID INTEGER NOT NULL,
                    PlantID INTEGER NOT NULL,
                    WaterLevel FLOAT,
                    Timestamp DATETIME,
                    FOREIGN KEY (SensorID) REFERENCES Sensor(SensorID),
                    FOREIGN KEY (PlantID) REFERENCES Plant(PlantID)
                );


Plant Watering Application: ERD to SQL (3/3)

                entity "WateringLog" as WateringLog {
                    +LogID : INTEGER
                    +PlantID : INTEGER
                    +WateredAt : DATETIME
                }


                CREATE TABLE WateringLog (
                    LogID INTEGER PRIMARY KEY,
                    PlantID INTEGER NOT NULL,
                    WateredAt DATETIME,
                    FOREIGN KEY (PlantID) REFERENCES Plant(PlantID)
                );


Today: January 22, 2025

• Review Questions
• Modeling Relationship in ERM
• Modeling Relationship in SQL
• Query Types in SQL
• Review Lab 1, Homework 1

SQLite Queries

What is a difference between SQL and SQLite?

• A. SQL is a standard language, while SQLite is a database management system
• B. SQLite is serverless, while SQL databases usually require a server
• C. SQL does not support transactions, but SQLite does
• D. SQLite can only be used with web applications

Correct Answers: A. and B

SQLite Queries

Which SQLite command is used to display the table schema?

• A. .show table_name;
• B. DESCRIBE table_name;
• C. .schema table_name;
• D. SHOW COLUMNS FROM table_name;

Correct Answer: C. .schema table_name;

SQLite Queries

Which SQLite command executes SQL statements from a file?

• A. .import file_name.sql;
• B. .run file_name.sql;
• C. .execute file_name.sql;
• D. .read file_name.sql;

Correct Answer: D. .read file_name.sql;

SQL Queries

Which is the correct syntax to create a table in SQLite?

• A. CREATE DATABASE Students;
• B. CREATE TABLE Students (ID INTEGER PRIMARY KEY, Name TEXT, Age INTEGER);
• C. CREATE Students TABLE (ID INTEGER PRIMARY KEY, Name TEXT, Age INTEGER);
• D. MAKE TABLE Students (ID INTEGER, Name TEXT, Age INTEGER);

Correct Answer: B

SQL Queries

Which syntax updates the age of student 'Alice' in the table?

• A. UPDATE Students SET Age = 23 WHERE Name = 'Alice';
• B. MODIFY Students SET Age = 23 WHERE Name = 'Alice';
• C. CHANGE Students SET Age = 23 WHERE Name = 'Alice';
• D. ALTER Students SET Age = 23 WHERE Name = 'Alice';

Correct Answer: A

SQL Queries

How do you write an SQL query to create a table named 'Book' with columns for ID, Title, and Author?

Please write answer here

Question?

Today: January 22, 2025

• Review Questions ✓
• Modeling Relationship in ERM
• Modeling Relationship in SQL
• Query Types in SQL
• Review Lab 1, Homework 1

How to model relationships between entities in ERD?

Why Use Minimum Relationships?

• Performance: Fewer relationships mean faster queries
• Simplicity: Easier to design, maintain, and understand
• Storage Efficiency: Reduces unnecessary data duplication
• Query Optimization: Minimizes complex joins and indexing overhead
• Consistency: Less chance of data inconsistencies

Relationship Types (Cardinality)

When to Use Relationship Type?

How to query relationships between entities in ERD?

SELECT Book.title FROM Book WHERE Book.isbnId = '978-1-';

SELECT Book.title FROM Book, ISBN WHERE Book.bookId = ISBN.bookId AND ISBN.isbnId = '978-1-';

SELECT Book.title FROM Book, ISBN, Book_ISBN WHERE Book.bookId = Book_ISBN.bookId AND ISBN.isbnId = Book_ISBN.isbnId AND ISBN.isbnId = '978-1-';


Which Relationship?

Today: January 22, 2025

• Review Questions ✓
• Modeling Relationship in ERM ✓
• Modeling Relationship in SQL
• Query Types in SQL
• Review Lab 1, Homework 1

Implement Relationships in SQL

Implement Relationships in SQL

• Primary Key: Uniquely identifies a record in a table
• Foreign Key: A reference to a primary key in another table

Implement Relationships in SQL

Implement Relationships in SQL

libraryId INTEGER FOREIGN KEY REFERENCES Library(libraryId) -- establishes a one-to-many relationship:

• One Library: A single library can have multiple books
• Many Books: Each book belongs to exactly one library
• Foreign Key: Ensures referential integrity by linking Book.libraryId to Library.libraryId
• Cardinality: 1:N (One library to many books)

SQL Queries on Book and Library

-- Insert data into Library
INSERT INTO Library (libraryId, name, location)
VALUES (1, 'Central Library', 'Downtown');

-- Insert data into Book
INSERT INTO Book (bookId, title, libraryId)
VALUES (101, 'Database Design', 1);

-- Retrieve books and their library details
SELECT Book.title, Library.name, Library.location
FROM Book, Library
WHERE Book.libraryId = Library.libraryId;


SQL Queries on Book and Library

Question?

Today: January 22, 2025

• Review Questions ✓
• Modeling Relationship in ERM ✓
• Modeling Relationship in SQL ✓
• Query Types in SQL
• Review Lab 1, Homework 1

SQL Query Types

SQL Query Types

Today: January 22, 2025

• Review Questions ✓
• Modeling Relationship in ERM ✓
• Modeling Relationship in SQL ✓
• Query Types in SQL ✓
• Review Lab 1, Homework 1

Lab 1 & Homework 1

• Lab 1: Introduction to SQL and basic queries
• Homework 1: Read literature and answer questions
• Reminder: Please install SQLite by Friday

Today: January 24, 2025

Lab Exercise: Relationships and Foreign Keys in SQLite

GitHub Repository

Module 3
Relational Algebra

Today: January 27, 2025

• Practice Questions
• Set Theory
• Relational Algebra
• Core Operations
• Advanced Operations
• Optimization and Efficiency
• Application Use Case

How to create a table with a foreign key reference in SQLite?

                A. CREATE TABLE Orders (
                       orderId INTEGER,
                       customerId INTEGER FOREIGN KEY REFERENCES Customers(customerId)
                   );
                B. CREATE TABLE Orders (
                       orderId INTEGER PRIMARY KEY,
                       customerId INTEGER REFERENCES Customers(customerId)
                   );
                C. CREATE TABLE Orders (
                       orderId INTEGER,
                       customerId INTEGER,
                       FOREIGN KEY (customerId) REFERENCES Customers(customerId)
                   );

Correct Answer: B, C

What happens (default) if a referenced row in the parent table?

• A. The related rows in the child table are automatically deleted
• B. The delete operation is blocked to maintain referential integrity
• C. The related rows are set to NULL
• D. The related rows remain unchanged

Correct Answer: B

How to add a foreign key constraint to an existing SQLite table?

                A. ALTER TABLE Orders ADD FOREIGN KEY (customerId) REFERENCES Customers(customerId);

                B. MODIFY TABLE Orders ADD FOREIGN KEY (customerId) REFERENCES Customers(customerId);

                C. SQLite does not support adding foreign keys to existing tables;

                D. UPDATE TABLE Orders SET FOREIGN KEY (customerId) REFERENCES Customers(customerId);


Correct Answer: C

Which of the following table names are permitted in SQLite?

                A. CREATE TABLE customer_data (...);
                B. CREATE TABLE order (...);
                C. CREATE TABLE _sales_record (...);
                D. CREATE TABLE Sales-Report (...);


Correct Answer: C, A (Table names should not use SQL keywords like 'order', and should avoid special characters)

Question?

Set Theory

• Origin: Developed by Georg Cantor in the late 19th century
• Purpose: To formally define collections of objects and their relationships
• Key Concept: Elements, subsets, unions, intersections, and complements
• No Duplicates: Ensures clarity, consistency, and prevents ambiguity in set operations
• Impact: Foundation for modern mathematics, logic, and computer science
• Why It Matters: Provides a universal language for data organization and problem-solving

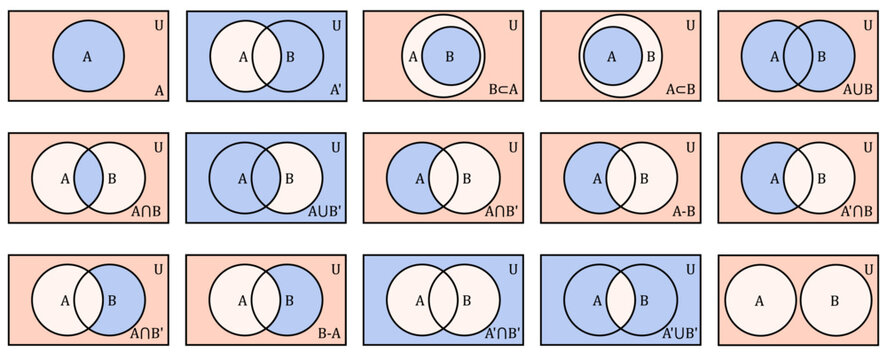

Set Theory Concepts

Concept	Description	Example
Union (⋃)	Combines elements from two sets, removing duplicates
Intersection (∩)	Finds common elements between two sets
Set Difference (−)	Elements present in one set but not in the other

Set Theory Concepts

Example of a Set: Fruits

Example of a Set: Cars

In set theory, a set is a collection of any distinct elements

• Numbers (e.g., {1, 2, 3, 4})
• Fruits (e.g., {Apple, Banana, Orange})
• Vehicles (e.g., {Car, Bike, Bus})
• Concepts (e.g., {Love, Peace, Joy})
• People (e.g., {Alice, Bob, Charlie})

Relational Algebra ⊆ Set Theory

Sets in Relational Algebra

• Relations: Tables representing structured data
• Tuples: Rows within a table representing records
• Attributes: Columns defining data properties
• Keys: Uniquely identify records within relations
• Operations: Selection, Projection, Join, etc

What is a Tuple?

In relational algebra, a tuple is a single unique row in a relation

• (1, 'Trek', 'Mountain', 1200)
• (2, 'Giant', 'Road', 1500)
• (3, 'Cannondale', 'Hybrid', 1000)

Different Relations in Relational Algebra

• Bike Relation: (bikeId, brand, type, price)
• Flower Relation: (flowerId, name, color, season)
• Pet Relation: (petId, name, species, age)
• Book Relation: (bookId, title, author, genre)
• Gadget Relation: (gadgetId, name, category, price)

Relational Algebra

• Collections: Set theory deals with collections of any objects
• Elements: In relational algebra, elements are tuples
• Relations: Relational algebra organizes tuples into structured relations
• Operations: Both use union, intersection, and difference
• Focus: Relational algebra emphasizes structured relationships, unlike general sets

Origins of Relational Algebra

• Augustus De Morgan (1806–1871) introduced relational concepts in mathematics
• Charles Sanders Peirce (1839–1914) expanded and formalized relation theory
• Alfred Tarski (1901–1983) developed relational algebra as a formal system
• Edgar F. Codd (1923–2003) invented relational algebra for databases while at IBM

It was created to logically analyze relationships between elements

Relational Algebra Operators from Set Theory

• Union (⋃): Combines tuples from two relations, removing duplicates
• Intersection (∩): Finds common tuples between two relations
• Set Difference (−): Returns tuples present in one relation but not the other
• Cartesian Product (×): Combines all tuples from two relations

Why Relational Algebra for DBMS 🤔

IBM had vast data but struggled with fast and accurate queries

Edgar F. Codd - Why Relational Algebra for DBMS?

• Selecting: Retrieving specific data from relations
• Combining: Joining data from multiple relations
• Filtering: Narrowing down data based on conditions

Edgar F. Codd - Relational Algebra for Databases

• Edgar F. Codd (1923–2003) invented relational algebra in 1970
• He developed it to provide a formal way to manage and query data
• His work led to the foundation of modern relational databases like SQL
• Codd aimed to improve data organization, consistency, and accessibility

Edgar F. Codd - Why Relational Algebra for DBMS

• Set Operations: Finding common elements in two sets using intersection
• Ordering Relations: Determining if one number is greater than another (e.g., x > y)
• Equivalence Relations: Checking if two elements are related by symmetry or transitivity
• Graph Theory: Analyzing connections between nodes in a directed graph
• Logic: Representing predicates and logical relationships using relational algebra

Added Operators Unique to Relational Algebra

• Selection (σ): Filters tuples based on a condition
• Projection (π): Selects specific attributes (columns)
• Join (⨝): Combines related tuples from different relations
• Division (÷): Finds tuples that match all values in another relation

Set Difference (−)

• Finds bicycles available in stock but not sold
• Example: Bicycles_Available − Bicycles_Sold

                        @startuml
                        entity Bicycles_Available {
                            bikeId INTEGER
                            brand VARCHAR(50)
                        }
                        entity Bicycles_Sold {
                            bikeId INTEGER
                            brand VARCHAR(50)
                        }
                        Bicycles_Available ||--o{ Bicycles_Sold : Difference
                        @enduml


Cartesian Product (×)

• Combines all bicycles with stores
• Example: Bicycles × Stores

                        @startuml
                        entity Bicycles {
                            bikeId INTEGER
                            brand VARCHAR(50)
                        }
                        entity Stores {
                            storeId INTEGER
                            location VARCHAR(100)
                        }
                        Bicycles ||--|| Stores : Product
                        @enduml


Natural Join (⨝)

• Matches bicycles and sales data using common attributes
• Example: Bicycles ⨝ Sales

                        @startuml
                        entity Bicycles {
                            bikeId INTEGER
                            brand VARCHAR(50)
                        }
                        entity Sales {
                            saleId INTEGER
                            bikeId INTEGER
                        }
                        Bicycles ||--|| Sales : Join
                        @enduml


Division (÷)

• Finds bicycle models available in all stores
• Example: Bicycles ÷ Stores

                        @startuml
                        entity Bicycles {
                            bikeId INTEGER
                            model VARCHAR(50)
                        }
                        entity Stores {
                            storeId INTEGER
                        }
                        Bicycles ||--o{ Stores : Division
                        @enduml


Aggregation Operations

• Used to compute the total sales of bicycles
• Example: π(SUM(price))(Sales)

                        @startuml
                        entity Sales {
                            saleId INTEGER
                            price INTEGER
                        }
                        @enduml


Renaming (ρ)

• Renames the bicycle relation for clarity
• Example: ρ(BikeInventory)(Bicycles)

                        @startuml
                        entity BikeInventory {
                            bikeId INTEGER
                            brand VARCHAR(50)
                        }
                        @enduml


Relational Algebra Operators

Query Optimization

Pushing Selection Down

Before Optimization:

                        π(brand) (σ(price < 500) (Bicycles × Stores))


After Optimization:

                        σ(price < 500) (π(brand) (Bicycles × Stores))


Reducing Cartesian Product

Before Optimization:

                        σ(Bicycles.storeId = Stores.storeId) (Bicycles × Stores)


After Optimization:

                        Bicycles ⨝ Stores


Combining Projections

Before Optimization:

                        π(brand) (π(bikeId, brand) (Bicycles))


After Optimization:

                        π(brand) (Bicycles)


Eliminating Unnecessary Joins

Before Optimization:

                        π(brand) (Bicycles ⨝ Stores ⨝ Suppliers)


After Optimization:

                        π(brand) (Bicycles ⨝ Stores)


Reordering Joins

Before Optimization:

                        (Bicycles ⨝ Stores) ⨝ Suppliers


After Optimization:

                        (Stores ⨝ Suppliers) ⨝ Bicycles


Breaking Complex Queries

Before Optimization:

                        σ(price < 500) (π(brand, price) (Bicycles ⨝ Stores))


After Optimization:

                        σ(price < 500) (Bicycles) ⨝ π(brand) (Stores)


Avoiding Calculated Fields in Joins

Before Optimization:

                        Bicycles ⨝ σ(DiscountedPrice = price * 0.9) (Stores)


After Optimization:

                        Precompute DiscountedPrice column and then join


Today: January 27, 2025

• Practice Questions ✓
• Query Optimization ✓
• Combine Operations ✓
• Advanced Operations ✓
• Application Use Case

1. What does the selection (σ) operator do in relational algebra?
2. Which operator is used to retrieve specific columns from a relation?
3. What is the symbol for the union operator in relational algebra?
4. How does the Cartesian product (×) operation combine relations?
5. Which operator is used to eliminate duplicate rows when combining relations?
6. What is the purpose of the projection (π) operator?
7. How is a join (⨝) different from a Cartesian product?
8. Which operator finds records that exist in one relation but not in another?
9. What does the renaming (ρ) operator do?

Today: January 29, 2025

• Practice Questions
• Query Optimization
• Nested Operators/Relations
• Application Use Case
• Assignments 1 and 2

Which of the following is a set?

• {1, 2, 2, 3, 4}
• (∅)
• {1, 2, 3, 4}
• {"Hello", 2, 3, 4}

Which of the following is a tuple?

• {1, "Alice", 25, "Engineer"}
• (1, "Alice", 25, "Engineer")
• [1, "Alice", 25, "Engineer"]
• "1, Alice, 25, Engineer"

What is a relation?

• A collection of duplicate tuples
• A single row in a table
• A function mapping keys to values
• A set of unique tuples with the same attributes

Which relational algebra operator filters rows based on a condition?

• Projection (π)
• Selection (σ)
• Cartesian Product (×)
• Union (∪)

Which relational algebra operator is used to retrieve specific attributes (columns)?

• Projection (π)
• Selection (σ)
• Join (⨝)
• Intersection (∩)

Which relational algebra operator combines two relations and removes duplicates?

• Cartesian Product (×)
• Difference (-)
• Union (∪)
• Selection (σ)

Which relational algebra operator returns tuples that are in both relations?

• Intersection (∩)
• Projection (π)
• Join (⨝)
• Selection (σ)

Which relational algebra operator pairs every tuple from one relation with every tuple from another?

• Join (⨝)
• Cartesian Product (×)
• Union (∪)
• Difference (-)

Which relational algebra operator combines tuples from two relations based on a common attribute?

• Join (⨝)
• Selection (σ)
• Projection (π)
• Cartesian Product (×)

Query Optimization

Find all roses over $10 from local suppliers

Without Optimization

Comparisons: 1,000 × 500 = 500K

With Optimization

Comparisons: 100 × 50 = 5K

Pushing Selection Down (first)

Filtering first reduces data size, making both the join and select the result faster

Query Processing Flow

            ┌───────────────┐      ┌────────────┐      ┌───────────────┐
            │   Relation    │ ───► │  Operator  │ ───► │   Relation    │
            └───────────────┘      └────────────┘      └───────────────┘


Nested Relations - Relational Algebra

                        π Name (
                            σ Price > 10 (
                                Flowers ⨝ (
                                    σ Location = 'Local' (
                                        Suppliers ⨝ (
                                            σ Revenue > 1000 (
                                                Companies
                                            )
                                        )
                                    )
                                )
                            )
                        )


Nested Relations - Relational Algebra

π Name (                               -- (6) Project only the "Name" attribute
    σ Price > 10 (                     -- (5) Select flowers priced over $10
        Flowers ⨝ (                   -- (4) Join Flowers with filtered Suppliers
            σ Location = 'Local' (     -- (3) Select only local suppliers
                Suppliers ⨝ (         -- (2) Join Suppliers with filtered Companies
                    σ Revenue > 1000 ( -- (1) Select companies with revenue > $1000
                        Companies      -- Input relation: Companies
                    )                  -- Output relation: High-revenue companies
                )                      -- Output relation: Local suppliers from revenue companies
            )                          -- Output relation: Flowers with local suppliers
        )                              -- Output relation: Flowers priced over $10
    )                                  -- Output relation: Names of flowers
)


Before vs After Query Optimization

Before                                 |   After
-------------------------------------- | --------------------------------------
π Name (                               |   π Name (
    σ Price > 10 (                     |       (σ Price > 10 (Flowers)) ⨝ (
        Flowers ⨝ (                   |           (σ Location = 'Local' (Suppliers)) ⨝ (
            σ Location = 'Local' (     |               σ Revenue > 1000 (Companies)
                Suppliers ⨝ (         |           )
                    σ Revenue > 1000 ( |       )
                        Companies      |   )
                    )                  |
                )                      |
            )                          |
        )                              |
    )                                  |
)                                      |


Optimized Nested Relations - SQL

            SELECT f.Name
            FROM (
                (SELECT * FROM Flowers WHERE Price > 10) f
                JOIN (
                    (SELECT * FROM Suppliers WHERE Location = 'Local') s
                    JOIN (SELECT * FROM Companies WHERE Revenue > 1000) c
                    ON s.CompanyID = c.CompanyID
                )
                ON f.SupplierID = s.SupplierID
            );


Relational Algebra Use Case

Application Use Case

Assignments 1 and 2

• Lab 1: Introduction to SQL and basic queries
• Lab 2 and Homework 2: Create and Alter tables
• Reminder: Please install SQLite by Friday

Relational Algebra and SQL

Assignments 1 and 2

• Lab 1: Introduction to SQL and basic queries
• Lab 2 and Homework 2: Create and Alter tables

Module 4
Relational Database Interfaces

Today: February 3, 2025

• Practice Questions
• Relational Database Interfaces:
  • Admin Interface
  • Command-Line Interface (CLI)
  • Application Programming Interface (API)
  • Application User Interface (UI)
• Homework 2, Lab 2, Project Part 1

What is a relation?

• A collection of duplicate tuples
• A single row in a table
• A function mapping keys to values
• A set of unique tuples with the same attributes

Which SQL clause is used to filter rows before processing?

• WHERE
• HAVING
• GROUP BY
• ORDER BY

Which relational algebra operation eliminates duplicate tuples?

• Selection (σ)
• Projection (π)
• Union (∪)
• Difference (-)

Which SQL statement correctly defines a foreign key constraint?

    CREATE TABLE Orders (OrderID INT PRIMARY KEY, CustomerID INT FOREIGN KEY REFERENCES Customers(CustomerID)); -- A

    CREATE TABLE Orders (OrderID INT, CustomerID INT, FOREIGN KEY (CustomerID) REFERENCES Customers(CustomerID)); -- B

    CREATE TABLE Orders (OrderID INT, CustomerID INT, FOREIGN KEY REFERENCES Customers(CustomerID)); -- C

    CREATE TABLE Orders (OrderID INT PRIMARY KEY, FOREIGN KEY (CustomerID) REFERENCES Customers(CustomerID)) -- D;


Which SQL query is optimized by predicate pushdown?

• σ_{age > 30} (Users ⨝ Orders)
• (σ_{age > 30} Users) ⨝ Orders
• σ_{age > 30} ((Users ⨝ Orders))
• (Users ⨝ Orders) ⨝ σ_{age > 30} (Users)

Which SQL statement is correct?

CREATE TABLE Table (ID INT PRIMARY KEY, Name VARCHAR(50));

CREATE TABLE Orders (OrderID INT, CustomerID INT, FOREIGN KEY (CustomerID) REFERENCES Customers(CustomerID))

CREATE TABLE Orders (OrderID INT, CustomerID INT, FOREIGN KEY REFERENCES Customers(CustomerID));

CREATE TABLE Orders (OrderID INT, FOREIGN KEY (CustomerID) REFERENCES Customers(CustomerID), CustomerID INT);

CREATE TABLE Orders (OrderID INT, CustomerID INT, FOREIGN KEY (CustomerID) REFERENCES Customers(CustomerID));


What is the relationship between Customers and Orders, where one customer can have multiple orders?

• One-to-One (1:1)
• One-to-Many (1:N)
• Many-to-Many (N:N)
• One-to-Many (N:1)

Which of the following is a key difference between SQLite and PostgreSQL?

• SQLite supports advanced concurrency control, while PostgreSQL does not
• PostgreSQL is an embedded database, while SQLite is client-server based
• PostgreSQL supports ACID transactions, while SQLite does not
• SQLite is lightweight and serverless, and PostgreSQL is a full-featured relational database

Which relational algebra operator is used to retrieve specific attributes?

• Projection (π)
• Selection (σ)
• Cartesian Product (×)
• Union (∪)

In query optimization, which heuristic helps reduce the number of tuples early?

• Predicate Pushdown
• Join Reordering
• Expression Flattening
• Index Lookup

Evolution of Relational Database Interfaces

• 1970s: Early Databases
• 1980s: Admin Tools Emerge
• 1990s: Command-Line Interface (CLI)
• 2000s: APIs Enable Integration
• 2010s: Web-Based Interfaces
• Today: Hybrid & Automated Systems

Database Interfaces by Role & Purpose

What is a Direct Database API Interface?

Direct Database API

• Connects online directly to a database using drivers

Database Connection

• Uses a connection string:

postgresql://user:password@host:port/database?sslmode=require

Direct DB API vs. REST API

• Direct DB API: Uses drivers (e.g., psycopg2) for queries

Security

• Use authentication (username/password, certificates)
• Restrict access with roles and permissions
• Enable SSL/TLS for encryption

Python Connection

        import psycopg2
        conn = psycopg2.connect("postgresql://user:pass@host/db?sslmode=require")
        cur = conn.cursor()
        cur.execute("SELECT version();")
        print(cur.fetchone())


Best Practices

• Use connection pooling
• Restrict database exposure
• Sanitize inputs to prevent SQL injection

Checkout DMS Repository

• Clone the repository:

git clone https://github.com/SE4CPS/DMS.git

• Navigate to the project directory:

cd DMS

Database Interfaces by Role & Purpose

What is a Admin Tool Interface?

Today: February 5, 2025

• Introduction PostgreSQL
• Relational Database Admin Interfaces
• Relational Database Developer Interfaces
• Relational Database User Interfaces
• Practice Questions
• Homework 2, Lab 2, Project Part 1

PostgreSQL: An Introduction

• What is PostgreSQL? Open-source, enterprise-class relational database
• License: PostgreSQL License (permissive open-source)
• ACID Compliance: Ensures data integrity
• Extensibility: Supports custom functions and data types
• Advanced Features: JSON, full-text search, geospatial support
• Concurrency Control: Uses MVCC for efficient transactions
• Cross-Platform: Runs on Linux, Windows, macOS, and cloud
• Community: Strong open-source support and documentation

PostgreSQL: A Timeline

• 1986: Developed at UC Berkeley by Michael Stonebraker
• 1989: POSTGRES 1.0 released
• 1994: Renamed to PostgreSQL
• 1996: Open-source development begins
• 2000: MVCC introduced in PostgreSQL 7.0
• 2005: Native Windows support added
• 2010: Streaming replication introduced
• 2016: Logical replication and partitioning added
• 2020: Improved indexing and query performance
• 2023: PostgreSQL 16 improves parallelism and SQL features

PostgreSQL: Open Source License Requirements

PostgreSQL License Notice

        PostgreSQL Database Management System
        Copyright (c) 1996-2024, The PostgreSQL Global Development Group

        Permission to use, copy, modify, and distribute this software and its
        documentation for any purpose, without fee, and without a written
        agreement is hereby granted, provided that the above copyright notice
        and this paragraph appear in all copies.

        IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY
        CLAIM, DAMAGES, OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
        TORT OR OTHERWISE, ARISING FROM, OUT OF, OR IN CONNECTION WITH THE
        SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.


Why Was PostgreSQL Invented?

• Ingres Limitations: Lacked extensibility and support for complex data types
• Advanced Data Needs: Required better handling of objects and relationships
• Scalability: Needed a more flexible and efficient query engine
• ACID Compliance: Improved transaction reliability and consistency
• Open-Source Model: Encouraged community contributions and innovation

PostgreSQL Feature Matrix

PostgreSQL Query Transformer

View Code

Relational Database Admin Interfaces

Neon Database Admin Functions

• Database Management – Create, delete, and manage databases
• Branching – Instantly create database branches for development and testing
• Connection Monitoring – View active connections and resource usage
• Role & Access Control – Manage user roles and permissions
• Performance Insights – Analyze query performance and optimize execution

pg_stat_statements

• Tracks execution statistics of SQL queries
• Records query text, execution time, and I/O stats
• Helps identify slow or expensive queries
• Requires the pg_stat_statements extension
• Useful for database performance tuning

Questions?

Task 1: Creating a Database Backup

Is this an Admin Task, Developer Task, or User Task?

Task 2: Writing a New API Endpoint

Is this an Admin Task, Developer Task, or User Task?

Task 3: Managing User Permissions

Is this an Admin Task, Developer Task, or User Task?

Task 4: Debugging an Application Error

Is this an Admin Task, Developer Task, or User Task?

Task 5: Updating Software Dependencies

Is this an Admin Task, Developer Task, or User Task?

Relational Database Developer Interfaces

Developers: The Bridge

• Connect frontend applications to databases
• Handle business logic and data processing
• Develop APIs for frontend communication
• Ensure data security and integrity
• Optimize performance between UI and storage

Backend to Database Connection

• Uses API key for authentication
• Connects to PostgreSQL database
• Ensures secure communication with SSL

PostgreSQL API Connection String Breakdown

• Protocol: postgresql://
• Username: neondb_owner
• Password: *********
• Host: ep-shrill-tree-a819xf7v-pooler.eastus2.azure.neon.tech
• Database: neondb
• SSL Mode: require (ensures secure connection)

Backend to Frontend via REST API

• Exposes endpoints for frontend access
• Uses HTTP methods (GET, POST, etc.)
• Requires authentication for secure access

REST API Request Example

            @app.route('/flowers')
            def manage_flowers():
                conn = get_db_connection()
                cur = conn.cursor()
                cur.execute("SELECT * FROM flowers")
                flowers = cur.fetchall()
                cur.close()
                conn.close()
                return render_template('flowers.html', flowers=flowers)


Task 1: Designing a Database Schema

Is this a Backend Database Developer Task?

Task 2: Implementing a REST API

Is this a Backend Database Developer Task?

Task 3: Styling a Web Page

Is this a Backend Database Developer Task?

PostgreSQL Backend Code Example

Questions?

Relational Database User Interfaces

Frontend Database-Related Tasks

• Fetching data from APIs
• Displaying database records in UI
• Sending user input to backend
• Handling API authentication (e.g., tokens)
• Managing client-side caching
• Managing client-side validation

PostgreSQL Backend Code Example

Question 1

Is fetching data from an API a frontend or backend task?

Question 2

Who is responsible for validating user input before storing it in the database?

Question 3

Does the frontend directly modify the database?

Today: February 7, 2025

• Practice Question
• Database Interface and ID
• Lab - Github and Python
• Team Project Part 1
• Homework 2, Lab 2

Database Interface and ID

Which component is responsible for ensuring data validation and access control?

• Frontend
• Backend
• Database
• All of the above

Which component plays a key role in optimizing system performance and preventing security breaches?

• Frontend
• Backend
• Database
• All of the above

Which component is essential for managing user requests, processing data, and ensuring secure communication?

• Frontend
• Backend
• Database
• All of the above

Which component typically handles REST API requests and responses?

• Frontend
• Backend
• Database
• All of the above

Which component is primarily responsible for handling database connection strings?

• Frontend
• Backend
• Database
• All of the above

Relational Database Interfaces and ID

Database Interface and ID

Book Table Schema

          CREATE TABLE Book (
              book_id SERIAL PRIMARY KEY,
              uuid UUID DEFAULT gen_random_uuid(),
              electronic_article_number VARCHAR(50) UNIQUE NOT NULL,
              isbn VARCHAR(512) UNIQUE NOT NULL,
              title VARCHAR(200) NOT NULL,
              author VARCHAR(100) NOT NULL,
              price DECIMAL(10,2) NOT NULL,
              stock INT NOT NULL
          );


Database Interfaces and ID

What is UUID?

UUID (Universally Unique Identifier) is a 128-bit unique identifier

UUID Format

Example: 550e8400-e29b-41d4-a716-446655440000

UUID Format

• 550e8400 - Time-based or random value
• e29b - Time-mid segment
• 41d4 - Version and variant identifier
• a716 - Clock sequence or unique identifier
• 446655440000 - Node (often MAC address or random)

Why UUID over Auto Increment?

• Globally Unique: Prevents ID conflicts in distributed databases
• Security: Harder to guess compared to sequential auto-increment IDs
• Scalability: Works well in multi-node environments without synchronization issues
• Decentralized: No need for a central authority to generate IDs

Database Structures and ID Comparison

Generate UUID in SQL

              -- Supported in PostgreSQL, MySQL (8.0+), MariaDB, and others
              CREATE TABLE Users (
                  user_id UUID DEFAULT gen_random_uuid() PRIMARY KEY,
                  name VARCHAR(100) NOT NULL
              );


Generate UUID in Python

              import uuid

              # Generate a new UUID
              user_id = uuid.uuid4()
              print("Generated UUID:", user_id)


Generate UUID in JavaScript (Server)

              import { v4 as uuidv4 } from 'uuid';

              // Generate a new UUID
              const userId = uuidv4();
              console.log("Generated UUID:", userId);


Generate UUID in JavaScript (Browser)

              // Generate a UUID using the browser's crypto API
              function generateUUID() {
                  return crypto.randomUUID();
              }

              console.log("Generated UUID:", generateUUID());


Questions?

UUID Specification

UUID RFC 4122

Lab - GitHub and Python

SQL Query: Get all flowers

              SELECT * FROM flowers;


SQL Query: Find the most expensive flower

              SELECT * FROM flowers ORDER BY price DESC LIMIT 1;


SQL Query: Get all customers

              SELECT * FROM customers;


SQL Query: Get all orders with customer names

              SELECT orders.order_id, customers.name, orders.order_date, orders.total
              FROM orders
              JOIN customers ON orders.customer_id = customers.customer_id;


SQL Query: Find customers who have placed orders

              SELECT DISTINCT customers.name, customers.email
              FROM customers
              JOIN orders ON customers.customer_id = orders.customer_id;


SQL Query: Find the total number of orders

              SELECT COUNT(*) FROM orders;


SQL Query: Find the total revenue generated from orders

              SELECT SUM(total) FROM orders;


SQL Query: Get all order details for a specific order ID

              SELECT * FROM order_details WHERE order_id = 1;


SQL Query: Find all flowers that are in stock

              SELECT * FROM flowers WHERE stock > 0;


SQL Query: Find all orders placed after 2024-01-01

              SELECT * FROM orders WHERE order_date > '2024-01-01';


SQL Query: Find flowers that cost more than $10

              SELECT * FROM flowers WHERE price > 10.00;


SQL Query: Find customers who have a phone number listed

              SELECT * FROM customers WHERE phone IS NOT NULL;


SQL Query: Find orders with a total amount greater than $50

              SELECT * FROM orders WHERE total > 50.00;


SQL Query: Find customers with a Gmail address

              SELECT * FROM customers WHERE email LIKE '%@gmail.com';


SQL Query: Find orders placed on 2024-02-01

              SELECT * FROM orders WHERE DATE(order_date) = '2024-02-01';


SQL Query: Find flowers that are red

              SELECT * FROM flowers WHERE color = 'Red';


SQL Query: Find flowers that are red

              SELECT * FROM flowers WHERE LOWER(color) = 'red';


SQL Query: Find customers who do not have an address

              SELECT * FROM customers WHERE address IS NULL;


Module 5
Relational Database Advanced SQL

Today: February 10, 2025

• Practice Question
• SQL JOIN
• SQL Aggregation
• SQL Constraint
• Team Project Part 1
• Homework 2, Lab 2

ER Model Question

Which of the following best describes an entity in an ER Model?

• A real-world object with attributes
• A table in a database
• A primary key in a table
• A stored procedure

Correct Answer: A real-world object with attributes

SQL Question

Which SQL clause is used to filter records based on a condition?

• ORDER BY
• GROUP BY
• WHERE
• HAVING

Correct Answer: WHERE

SQLite Question

Which of the following is a major limitation of SQLite compared to PostgreSQL?

• No support for basic queries
• No support for full outer joins
• No support for indexing
• No support for SELECT statements

Correct Answer: No support for full outer joins

Relational Algebra Question

Which relational algebra operation is used to retrieve specific attributes from a relation?

• Selection (σ)
• Projection (π)
• Cartesian Product (×)
• Union (∪)

Correct Answer: Projection (π)

Foreign Key Question

What is the primary purpose of a foreign key in a relational database?

• To enforce referential integrity
• To improve query performance
• To store primary key values
• To increase storage capacity

Correct Answer: To enforce referential integrity

Why SQL Joins?

• Merge data (rows) from multiple tables
• Avoid redundancy & maintain consistency

Bike Store Requirements

The bike store needs a database to manage its inventory, sales, and customer interactions

Inventory Management

The store wants to keep track of all bikes and accessories, along with their suppliers

They need to see which products have suppliers and which do not

Customer Orders

Customers can place orders for bikes and accessories

The store wants a report showing all customers and their orders, but also customers who have never ordered

Sales Performance

The store needs to generate reports comparing all products, including those that have never been sold

Employee Management

Employees handle sales and inventory updates

They need a way to see all employees and the sales they have made, while also seeing employees with no recorded sales

Which Join to Use?

Inner Join

Returns only matching rows from both tables

          SELECT *
          FROM A
          INNER JOIN B
          ON A.id = B.id;


Left Join

Returns all rows from the left table and matching rows from the right

          SELECT *
          FROM A
          LEFT JOIN B
          ON A.id = B.id;


Right Join

Returns all rows from the right table and matching rows from the left

          SELECT *
          FROM A
          RIGHT JOIN B
          ON A.id = B.id;


Natural Join with Multiple Columns

Automatically joins columns with the same name and identical values

          SELECT *
          FROM A
          NATURAL JOIN B;


Table A

Table B

Result of Natural Join

Matches rows where both id and name are the same

Full Outer Join

Returns all rows from both tables

Includes unmatched rows with NULL values where no match is found

Full Outer Join Query

          SELECT *
          FROM A
          FULL OUTER JOIN B
          ON A.id = B.id;


Table A

Table B

Result of Full Outer Join

Includes unmatched rows from both tables

What is a CROSS JOIN?

Generates the Cartesian product of two tables

CROSS JOIN Query

      SELECT * FROM A CROSS JOIN B;


Example Tables

Result of CROSS JOIN

All possible combinations of rows

Which Join to Apply?

Consider the following use cases on a flower database

Flower Database Use Cases

Which Join Would You Use?

• Inner Join?
• Left Join?
• Full Outer Join?

SQLite and PostgreSQL Syntax Differences

PostgreSQL Meta Commands Table

How to Get All Astronauts and Their Missions?

SQL Query

          SELECT A.name, A.role, M.name AS mission_name
          FROM Astronauts A
          LEFT JOIN Missions M
          ON A.missions = M.id;


How to Find Missions with No Assigned Astronauts?

SQL Query

          SELECT M.name, M.destination
          FROM Missions M
          LEFT JOIN Astronauts A
          ON M.id = A.missions
          WHERE A.id IS NULL;


How to Get All Alien Encounters with Mission Names?

SQL Query

          SELECT AE.species, AE.communication, M.name AS mission_name
          FROM AlienEncounters AE
          INNER JOIN Missions M
          ON AE.missionId = M.id;


Today: February 12, 2025

• Practice Question
• SQL Aggregation
• SQL Constraints
• SQL JOINS
• Practice Code
• Homework 3, Lab 3, Team Project Part 1

The Dashboard Effect

• Real-Time Data Monitoring
• Improved Decision-Making
• improved Team Collaboration
• Increased Efficiency and Productivity
• Better Performance Tracking

Which type of SQL JOIN returns only the matching rows between two tables?

• LEFT JOIN
• RIGHT JOIN
• INNER JOIN
• FULL OUTER JOIN

Answer: INNER JOIN

Query:

SELECT bikes.model, sales.price
        FROM bikes
        INNER JOIN sales ON bikes.id = sales.bike_id;

        Bikes
        +----+-----------+------+
        | id | model    | type |
        +----+-----------+------+
        | 1  | RoadX    | Road |
        | 2  | SpeedPro | Road |
        | 3  | TrailMax | MTB  |
        +----+-----------+------+


        Sales
        +----+----------+--------+
        | id | bike_id | price  |
        +----+----------+--------+
        | 1  | 1       | 1200   |
        | 2  | 2       | 1500   |
        +----+----------+--------+


        Result
        +-----------+--------+
        | model     | price  |
        +-----------+--------+
        | RoadX     | 1200   |
        | SpeedPro  | 1500   |
        +-----------+--------+


What happens when a LEFT JOIN is used between two tables?

• It returns only the matching rows from both tables
• It returns all rows from the left table and only matching rows from the right table
• It returns all rows from both tables, filling gaps with NULLs
• It returns only the non-matching rows between both tables

Answer: LEFT JOIN

Query:

SELECT bikes.model, sales.price
        FROM bikes
        LEFT JOIN sales ON bikes.id = sales.bike_id;

        Bikes
        +----+-----------+------+
        | id | model    | type |
        +----+-----------+------+
        | 1  | RoadX    | Road |
        | 2  | SpeedPro | Road |
        | 3  | TrailMax | MTB  |
        | 4  | CityRide | City |
        +----+-----------+------+


        Sales
        +----+----------+--------+
        | id | bike_id | price  |
        +----+----------+--------+
        | 1  | 1       | 1200   |
        | 2  | 2       | 1500   |
        +----+----------+--------+


        Result
        +-----------+--------+
        | model     | price  |
        +-----------+--------+
        | RoadX     | 1200   |
        | SpeedPro  | 1500   |
        | TrailMax  | NULL   |
        | CityRide  | NULL   |
        +-----------+--------+


Which JOIN will return all records from the right table and only the matching records from the left table?

• LEFT JOIN
• INNER JOIN
• RIGHT JOIN
• CROSS JOIN

Answer: RIGHT JOIN

Query:

SELECT bikes.model, sales.price
        FROM bikes
        RIGHT JOIN sales ON bikes.id = sales.bike_id;

        Bikes
        +----+-----------+------+
        | id | model    | type |
        +----+-----------+------+
        | 1  | RoadX    | Road |
        | 2  | SpeedPro | Road |
        | 3  | TrailMax | MTB  |
        +----+-----------+------+


        Sales
        +----+----------+--------+
        | id | bike_id | price  |
        +----+----------+--------+
        | 1  | 1       | 1200   |
        | 2  | 2       | 1500   |
        | 3  | 5       | 800    |
        +----+----------+--------+


        Result
        +-----------+--------+
        | model     | price  |
        +-----------+--------+
        | RoadX     | 1200   |
        | SpeedPro  | 1500   |
        | NULL      | 800    |
        +-----------+--------+


What is Aggregation?

• Combines multiple values into a single summary
• Helps in decision-making by reducing complexity
• Used in databases, financial reports, and AI models
• Common aggregation types: sum, min, max, avg, count, and grouping

What is a Metric?

A metric is a measurable value used to track performance

• Example: Total sales, number of users
• Aggregation: SUM(sales), COUNT(users)

What is a KPI?

A KPI (Key Performance Indicator) is a metric that measures success

• Example: Revenue growth rate
• Aggregation: AVG(revenue_growth)

What is a Target?

A target is a predefined goal for a metric or KPI

• Example: Achieve $1M in sales
• Aggregation: Compare SUM(sales) to target

What is a Benchmark?

A benchmark is a standard used for comparison

• Example: Industry average sales
• Aggregation: Compare AVG(company_sales) vs. AVG(industry_sales)

How It Relates to Aggregation

• Metrics and KPIs rely on SUM, AVG, COUNT
• Targets track progress using aggregated values
• Benchmarks compare aggregated data across companies

SQL Aggregation Functions

• SUM() – Adds up values (e.g., total sales)
• AVG() – Calculates the average (e.g., average price)
• COUNT() – Counts rows (e.g., number of orders)
• MAX() – Finds the highest value (e.g., max salary)
• MIN() – Finds the lowest value (e.g., min salary)

SQL Aggregation Questions

SELECT SUM(sales) FROM orders;

SELECT AVG(sales) FROM orders;

SELECT COUNT(DISTINCT customer_id) FROM orders;

SELECT MAX(sales) FROM orders;

SELECT SUM(sales), 100000 AS target FROM orders;

What is GROUP BY?

The GROUP BY clause groups rows with the same values in specified columns

• Used with aggregation functions like SUM(), COUNT(), AVG()
• Groups data to analyze trends and summaries
• Prevents duplicate calculations in reports

GROUP BY Syntax


        SELECT column, AGG_FUNCTION(column)
        FROM table
        GROUP BY column;



HAVING Syntax


        SELECT column, AGG_FUNCTION(column)
        FROM table
        GROUP BY column
        HAVING condition;




        SELECT product, SUM(sales) AS total_sales
        FROM sales
        GROUP BY product
        HAVING SUM(sales) > 900;



        +----+------------+--------+
        | id | product   | sales  |
        +----+------------+--------+
        | 1  | Bike A    | 500    |
        | 2  | Bike B    | 700    |
        | 3  | Bike A    | 300    |
        | 4  | Bike C    | 900    |
        | 5  | Bike B    | 400    |
        +----+------------+--------+


        Result:
        +------------+-------------+
        | product   | total_sales |
        +------------+-------------+
        | Bike B    | 1100       |
        | Bike C    | 900        |
        +------------+-------------+


SQL CHECK Constraint

The CHECK constraint enforces rules on column values

• Ensures data integrity by restricting invalid values
• Applied at column or table level
• Rejects any data that does not meet the condition

Example: CHECK Constraint in a Bike Store


        CREATE TABLE bikes (
            id INT PRIMARY KEY,
            model VARCHAR(50),
            price DECIMAL(10,2) CHECK (price > 0),
            stock INT CHECK (stock >= 0),
            category VARCHAR(20) CHECK (category IN ('Road', 'MTB', 'City', 'Hybrid')),
            discount DECIMAL(5,2) CHECK (discount BETWEEN 0 AND 50),
            weight DECIMAL(5,2) CHECK (weight > 5)
        );



How to Get the Total Number of Missions for Each Role?

SQL Query

          SELECT A.role, COUNT(A.missions) AS total_missions
          FROM Astronauts A
          GROUP BY A.role;


Homework 2 and Lab 2

Team Project Part 1 - GitHub

Today: Homework 3, Lab 3, Project Part 1

Flower Watering System

Today: February 14, 2025

• Use Case Scenario
• Documentation
• Homework 3, Lab 3, Team Project Part 1

Who has gone on the most space missions?

            SELECT name, missions FROM Astronauts
            ORDER BY missions DESC LIMIT 1;


Which missions are still ongoing?

            SELECT name, destination FROM Missions
            WHERE status = 'Ongoing';


Which scientists have never been on a mission?

            SELECT name FROM Astronauts
            WHERE role = 'Scientist' AND missions = 0;


Which mission had the largest crew?

            SELECT name, crew FROM Missions
            ORDER BY crew DESC LIMIT 1;


Which spaceships are out of fuel?

            SELECT name FROM Spaceship
            WHERE fuelLevel = 0;


Which missions encountered hostile aliens?

            SELECT m.name, a.species FROM AlienEncounters a
            JOIN Missions m ON a.missionId = m.id
            WHERE a.communication = 'Hostile';


List all engineers and the number of missions they have participated in, if any

            SELECT name, missions FROM Astronauts
            WHERE role = 'Engineer';


Which teams have a score greater than 0?

            SELECT team, score FROM Score
            WHERE score > 0;


Find all missions that visited planets starting with 'P'

            SELECT name, destination FROM Missions
            WHERE destination LIKE 'P%';


List all missions along with any alien species encountered

            SELECT m.name, a.species FROM Missions m
            LEFT JOIN AlienEncounters a ON m.id = a.missionId;


Which mission had the smallest crew?

            SELECT name, crew FROM Missions
            ORDER BY crew ASC LIMIT 1;


Which spaceships have more than 10 fuel?

            SELECT name, fuelLevel FROM Spaceship
            WHERE fuelLevel > 10;


How many completed missions are there?

            SELECT COUNT(*) FROM Missions
            WHERE status = 'Completed';


Find all engineers who have participated in at least one mission

            SELECT name FROM Astronauts
            WHERE role = 'Engineer' AND missions > 0;


Which team has the highest score?

            SELECT team, score FROM Score
            ORDER BY score DESC LIMIT 1;


Find all scientists and their total number of missions

            SELECT name, missions FROM Astronauts
            WHERE role = 'Scientist';


Which mission had the most alien encounters?

            SELECT m.name, COUNT(a.id) AS encounters FROM Missions m
            JOIN AlienEncounters a ON m.id = a.missionId
            GROUP BY m.name
            ORDER BY encounters DESC LIMIT 1;


List all spaceships along with their type and fuel level

            SELECT name, shiptype, fuelLevel FROM Spaceship;


Find all missions that went to planets with names longer than 6 characters

            SELECT name, destination FROM Missions
            WHERE LENGTH(destination) > 6;


Module 6
Relational Database Normalization

Today: February 19, 2025

• Structured and Unstructured Data
• Not Normalized: Redundant data and anomalies
• First Normal Form (1NF): Atomic values, no repeating groups
• Second Normal Form (2NF): Remove partial dependencies
• Third Normal Form (3NF): Remove transitive dependencies
• Practice Exercise: Normalize a sample table
• Discussion: When to denormalize?

Database Engineering Process in Theory

+--------------+
| Requirements | -->
+--------------+


+-----+
| ERD | -->
+-----+


+----------+
| Database | -->
+----------+


+-------+
| Table | -->
+-------+


+------+
| Data |
+------+


Structured (20%) vs. Unstructured Data (80%)

Database Engineering Process in Practice

+------+
| Data | -->
+------+


+--------------+
| Requirements | -->
+--------------+


+-----+
| ERD | -->
+-----+


+----------+
| Database | -->
+----------+


+-------+
| Table |
+-------+


Stuctured Data

+------------+----------------------+---------------------+--------------------+
| customer   | products             | phone               | address            |
+------------+----------------------+---------------------+--------------------+
| Alice      | Laptop, Mouse        | 123-456-7890        | 12 Main St, NY     |
| Bob        | Phone, Charger       | 987-654-3210        | 34 Elm St, CA      |
| Alice      | Keyboard, Monitor    | 123-456-7890        | 12 Main St, NY     |
+------------+----------------------+---------------------+--------------------+


Stuctured Data

+------------+----------------------+---------------------+--------------------+
| customer   | products             | phone               | address            |
+------------+----------------------+---------------------+--------------------+
| Alice      | Laptop, Mouse        | 123-456-7890        | 12 Main St, NY     |
| Bob        | Phone, Charger       | 987-654-3210        | 34 Elm St, CA      |
| Alice      | Keyboard, Monitor    | 123-456-7890        | 12 Main St, NY     |
+------------+----------------------+---------------------+--------------------+


Stuctured Data

+------------+----------------------+---------------------+--------------------+
| customer   | products             | phone               | address            |
+------------+----------------------+---------------------+--------------------+
| Alice      | Laptop, Mouse        | 123-456-7890        | 12 Main St, NY     |
| Bob        | Phone, Charger       | 987-654-3210        | 34 Elm St, CA      |
| Alice      | Keyboard, Monitor    | 123-456-7890        | 12 Main St, NY     |
+------------+----------------------+---------------------+--------------------+


Problems:

• Repeated customer details (Alice appears twice)
• Multiple products in a single field
• Difficult to update customer information
• We can't query the data with SQL

Data is Structured 🙂

Data is not Normalized 😞

Data Engineering Process in Practice

        +--------------+
        | Unstructured | -->
        +--------------+


+------------+
| Structured | -->
+------------+


+--------------+
| Unnormalized | -->
+--------------+


+-----+
| NF1 |
+-----+


First Normal Form (NF1)

Definition: A table is in First Normal Form when all its attributes contain only atomic (indivisible) values, and each record is unique

Key Characteristics of NF1

• Each column contains atomic values (no repeating groups or arrays)
• Each column must hold values of a one type
• Each row must be unique, typically ensured by a primary key
• Order of rows and columns does not affect the data's significance

Example of NF1

+----+-----------+-----------------+
| id | name      | hobbies         |
+----+-----------+-----------------+
| 1  | Alice     | Reading         |
| 2  | Bob       | Cycling         |
| 3  | Charlie   | Reading, Hiking |
+----+-----------+-----------------+


+----+-----------+-----------------+
| id | name      | hobbies         |
+----+-----------+-----------------+
| 1  | Alice     | Reading         |
| 2  | Bob       | Cycling         |
| 3  | Charlie   | Reading         |
| 4  | Charlie   | Hiking          |
+----+-----------+-----------------+


Data in NF1

+------------+---------+----------------+-----------+------------+-------+
| customer_id| name    | phone          | products  | city       | state |
+------------+---------+----------------+-----------+------------+-------+
| 1          | Alice   | 123-456-7890   | Laptop    | New York   | NY    |
| 2          | Alice   | 123-456-7890   | Mouse     | New York   | NY    |
| 3          | Bob     | 987-654-3210   | Phone     | California | CA    |
| 4          | Bob     | 987-654-3210   | Charger   | California | CA    |
| 5          | Alice   | 123-456-7890   | Keyboard  | New York   | NY    |
| 6          | Alice   | 123-456-7890   | Monitor   | New York   | NY    |
+------------+---------+----------------+-----------+------------+-------+


Data in NF1

+------------+---------+----------------+-----------+------------+-------+
| customer_id| name    | phone          | products  | city       | state |
+------------+---------+----------------+-----------+------------+-------+
| 1          | Alice   | 123-456-7890   | Laptop    | New York   | NY    |
| 2          | Alice   | 123-456-7890   | Mouse     | New York   | NY    |
| 3          | Bob     | 987-654-3210   | Phone     | California | CA    |
| 4          | Bob     | 987-654-3210   | Charger   | California | CA    |
| 5          | Alice   | 123-456-7890   | Keyboard  | New York   | NY    |
| 6          | Alice   | 123-456-7890   | Monitor   | New York   | NY    |
+------------+---------+----------------+-----------+------------+-------+


Data in NF1

+------------+---------+----------------+-----------+------------+-------+
| customer_id| name    | phone          | products  | city       | state |
+------------+---------+----------------+-----------+------------+-------+
| 1          | Alice   | 123-456-7890   | Laptop    | New York   | NY    |
| 2          | Alice   | 123-456-7890   | Mouse     | New York   | NY    |
| 3          | Bob     | 987-654-3210   | Phone     | California | CA    |
| 4          | Bob     | 987-654-3210   | Charger   | California | CA    |
| 5          | Alice   | 123-456-7890   | Keyboard  | New York   | NY    |
| 6          | Alice   | 123-456-7890   | Monitor   | New York   | NY    |
+------------+---------+----------------+-----------+------------+-------+


Unnormalized Data to First Normal Form (1NF)

1NF Enables Full SQL Usage

Once data is in 1NF:

• Meets relational algebra requirements
• Has atomic values and no repeating groups
• SQL can be fully utilized

History of First Normal Form (1NF)

• 1970 – Edgar F. Codd introduces 1NF in his relational model
• 1971 – Codd refines 1NF, emphasizing atomic values and eliminating repeating groups
• 1980s – 1NF becomes a standard for relational databases
• 1990s – SQL databases widely adopt 1NF for data consistency
• 2000s-Present – 1NF remains essential, even as denormalized data emerges

Is NF1 sufficient?

+------------+---------+----------------+-----------+------------+-------+
| customer_id| name    | phone          | products  | city       | state |
+------------+---------+----------------+-----------+------------+-------+
| 1          | Alice   | 123-456-7890   | Laptop    | New York   | NY    |
| 2          | Alice   | 123-456-7890   | Mouse     | New York   | NY    |
| 3          | Bob     | 987-654-3210   | Phone     | California | CA    |
| 4          | Bob     | 987-654-3210   | Charger   | California | CA    |
| 5          | Alice   | 123-456-7890   | Keyboard  | New York   | NY    |
| 6          | Alice   | 123-456-7890   | Monitor   | New York   | NY    |
+------------+---------+----------------+-----------+------------+-------+


Historical Cost of Storage (1MB)

• 1970 – $200,000 (Magnetic Core, Early HDDs)
• 1980 – $10,000 (HDDs, Floppy Disks)
• 1990 – $1,000 → $1 (HDDs, CDs)
• 2000 – $0.10 (HDDs, Flash Storage)
• 2020 – $0.00005 (SSDs, Cloud Storage)

Early Storage Was Expensive

• Storage was costly, making efficiency crucial
• Data redundancy had to be avoided to save space

Redundant Data

+------------+---------+----------------+-----------+------------+-------+
| customer_id| name    | phone          | products  | city       | state |
+------------+---------+----------------+-----------+------------+-------+
| 1          | Alice   | 123-456-7890   | Laptop    | New York   | NY    |
| 2          | Alice   | 123-456-7890   | Mouse     | New York   | NY    |
| 3          | Bob     | 987-654-3210   | Phone     | California | CA    |
| 4          | Bob     | 987-654-3210   | Charger   | California | CA    |
| 5          | Alice   | 123-456-7890   | Keyboard  | New York   | NY    |
| 6          | Alice   | 123-456-7890   | Monitor   | New York   | NY    |
+------------+---------+----------------+-----------+------------+-------+


Second Normal Form (2NF)

• Remove partial dependencies
• Non-key attributes must depend on the entire primary key

2NF: Eliminating Partial Dependencies

+------------+----------------+-----------+
| customer_id| phone          | city      |
+------------+----------------+-----------+
| 1          | 123-456-7890   | New York  |
| 3          | 987-654-3210   | California|
+------------+----------------+-----------+


+------------+-----------+
| product_id | product   |
+------------+-----------+
| 1          | Laptop    |
| 2          | Mouse     |
| 3          | Phone     |
+------------+-----------+


+----------+-------------+
| order_id | customer_id |
+----------+-------------+
| 1        | 1           |
| 2        | 3           |
+----------+-------------+


Composite Keys & Storage

• A composite key uses multiple columns as a unique identifier
• A lot intermediate tables in many-to-many relationships
• Reduces storage by avoiding redundant IDs

Defining a Composite Key in SQL

        CREATE TABLE OrderDetails (
            order_id INT,
            product_id INT,
            quantity INT,
            PRIMARY KEY (order_id, product_id)
        );


First Normal Form (1NF) to Second Normal Form (2NF)

2NF: Eliminating Partial Dependencies

+------------+----------------+-----------+
| customer_id| phone          | city      |
+------------+----------------+-----------+
| 1          | 123-456-7890   | New York  |
| 3          | 987-654-3210   | California|
+------------+----------------+-----------+


+------------+-----------+
| product_id | product   |
+------------+-----------+
| 1          | Laptop    |
| 2          | Mouse     |
| 3          | Phone     |
+------------+-----------+


+----------+-------------+
| order_id | customer_id |
+----------+-------------+
| 1        | 1           |
| 2        | 3           |
+----------+-------------+


History of Second Normal Form (2NF)

• 1971 – Edgar F. Codd defines 2NF to remove partial dependencies
• 1980s – 2NF becomes widely used in relational databases to reduce redundancy
• 1990s – SQL databases formally implement 2NF principles
• 2000s-Present – 2NF standard but often relaxed for performance optimization

Why is 2NF Not Enough?

• Does 2NF eliminate all redundancy?
• Can transitive dependencies still exist?
• What problems remain in 2NF?

Why is 2NF Not Enough?

          +------------+----------------+--------------+-------+
          | customer_id| phone          | city         | state |
          +------------+----------------+--------------+-------+
          | 1          | 123-456-7890   | New York     | NY    |
          | 3          | 987-654-3210   | Los Angeles  | CA    |
          +------------+----------------+--------------+-------+


Does City Depend on State?

State depends on City, not the other way around

• Each city belongs to one state
• A state has many cities
• Knowing the city → you can find the state
• Knowing the state → you cannot find a unique city

Third Normal Form (3NF)

• Remove transitive dependencies
• Non-key attributes must depend only on the primary key

3NF Fixed: Remove Transitive Dependency

+------------+----------------+---------+
| customer_id| phone          | city_id |
+------------+----------------+---------+
| 1          | 123-456-7890   | 101     |
| 3          | 987-654-3210   | 102     |
+------------+----------------+---------+


        +---------+-------------+-------+
        | city_id | city       | state  |
        +---------+-------------+-------+
        | 101     | New York   | NY     |
        | 102     | Los Angeles| CA     |
        +---------+-------------+-------+


A table in NF1 is in 3NF if all non-key attributes depend only on the primary key (NF2) and do not depend on other non-key attributes (NF3)

Second Normal Form (2NF) to Third Normal Form (3NF)

History of Third Normal Form (3NF)

• 1971 – Edgar F. Codd introduces 3NF to remove transitive dependencies
• 1980s – 3NF becomes widely adopted to improve data integrity
• 1990s – SQL databases implement 3NF as a best practice
• 2000s-Present – 3NF remains a standard, though often denormalized for performance

Database Normal Forms

Questions?

Unnormalized, 1NF, 2NF, or 3NF?

+----------+------------+-----------------------+
| order_id | customer  | products               |
+----------+------------+-----------------------+
| 1        | Alice     | Laptop, Mouse          |
| 2        | Bob       | Phone, Charger         |
+----------+------------+-----------------------+


Unnormalized, 1NF, 2NF, or 3NF?

+----------+-----------+-------------+
| order_id | customer  | product_id  |
+----------+------------+------------+
| 1        | Alice     | 101         |
| 1        | Alice     | 102         |
| 2        | Bob       | 103         |
| 2        | Bob       | 104         |
+----------+-----------+-------------+


Unnormalized, 1NF, 2NF, or 3NF?

+----------+------------+----------+-------+
| order_id | customer  | product  | city   |
+----------+------------+----------+-------+
| 1        | Alice     | Laptop   | NY     |
| 1        | Alice     | Mouse    | NY     |
| 2        | Bob       | Phone    | CA     |
| 2        | Bob       | Charger  | CA     |
+----------+------------+----------+-------+


Unnormalized, 1NF, 2NF, or 3NF?

+------------+----------------+-------------+-------+---------+
| customer_id| phone          | city        | state | zip_code|
+------------+----------------+-------------+-------+---------+
| 1          | 123-456-7890   | New York    | NY    | 10001   |
| 3          | 987-654-3210   | Los Angeles | CA    | 90001   |
+------------+----------------+-------------+-------+---------+


    +----------+-------------+
    | order_id | customer_id |
    +----------+-------------+
    | 1        | 1           |
    | 2        | 3           |
    +----------+-------------+


Unnormalized, 1NF, 2NF, or 3NF?

+------------+----------------+---------+
| customer_id| phone          | city_id |
+------------+----------------+---------+
| 1          | 123-456-7890   | 101     |
| 3          | 987-654-3210   | 102     |
+------------+----------------+---------+


      +---------+-------------+---------+
      | city_id | city       | zip_code |
      +---------+-------------+---------+
      | 101     | New York   | 10001    |
      | 102     | Los Angeles| 90001    |
      +---------+-------------+---------+


Questions?

Database Engineering Process in Practice

+------+
| Data | -->
+------+


+--------------+
| Requirements | -->
+--------------+


+-----+
| ERD | -->
+-----+


+----------+
| Database | -->
+----------+


+-------+
| Table |
+-------+


Discussion: When to Normalize or denormalize?

Questions?

Recursive JOINS

Sample Data: Car Parts Hierarchy

        +---------+------------+---------------+
        | part_id | name       | parent_part_id|
        +---------+------------+---------------+
        | 1       | Car        | NULL          |  <-- Root (Top-Level Part)
        | 2       | Engine     | 1             |  <-- Engine belongs to Car
        | 3       | Wheel      | 1             |  <-- Wheel belongs to Car
        | 4       | Piston     | 2             |  <-- Piston belongs to Engine
        | 5       | Bolt       | 4             |  <-- Bolt belongs to Piston
        +---------+------------+---------------+


Recursive Self-JOIN with Levels

        WITH RECURSIVE CarParts AS (
            -- Start with the whole car (top-level part)
            SELECT t1.part_id, t1.name AS part_name,
                   t1.parent_part_id AS parent_id,
                   NULL AS parent_name, 1 AS level
            FROM parts AS t1
            WHERE t1.parent_part_id IS NULL

            UNION ALL

            -- Recursively join parts to their parent parts and track levels
            SELECT t2.part_id, t2.name, t2.parent_part_id,
                   c.part_name AS parent_name, c.level + 1
            FROM parts AS t2
            JOIN CarParts AS c ON t2.parent_part_id = c.part_id
        )
        SELECT * FROM CarParts;


Recursive Self-JOIN Output

        +---------+------------+-----------+-------------+--------+
        | part_id | part_name  | parent_id | parent_name | level  |
        +---------+------------+-----------+-------------+--------+
        | 1       | Car        | NULL      | NULL        | 1      |
        | 2       | Engine     | 1         | Car         | 2      |
        | 3       | Wheel      | 1         | Car         | 2      |
        | 4       | Piston     | 2         | Engine      | 3      |
        | 5       | Bolt       | 4         | Piston      | 4      |
        +---------+------------+-----------+-------------+--------+


February 21, 2025

• Practice Question
• Lab Coding
• Project Part 1 (Mar/21), Homework 3 (Feb/24), Lab 3 (Feb/24)

What Normal Form is This?

                +----------+------------+------------------+
                | order_id | customer  | products          |
                +----------+------------+------------------+
                | 1        | Alice     | Laptop, Mouse     |
                | 2        | Bob       | Phone, Charger    |
                +----------+------------+------------------+


What Normal Form is This?

                +----------+------------+----------+-------+
                | order_id | customer  | product  | city   |
                +----------+------------+----------+-------+
                | 1        | Alice     | Laptop   | NY     |
                | 1        | Alice     | Mouse    | NY     |
                | 2        | Bob       | Phone    | CA     |
                | 2        | Bob       | Charger  | CA     |
                +----------+------------+----------+-------+


Which of the following violates 1NF?

• A table with a primary key
• A table where a column stores multiple values (e.g., "Engine, Wheel")
• A table with foreign keys
• A table without NULL values

How do you fix a table that violates 1NF?

• Remove duplicate rows
• Store multi-valued attributes in separate rows
• Use a composite primary key
• Merge columns to reduce table size

Which table violates 2NF?

• A table where all attributes depend on the full primary key
• A table with a non-key column that depends on only part of a composite key
• A table with foreign keys
• A table with NULL values

How do you convert a 1NF table to 2NF?

• Remove transitive dependencies
• Ensure all non-key attributes depend on the whole primary key
• Remove foreign keys
• Merge duplicate records

Which table violates 3NF?

• A table where non-key attributes depend only on the primary key
• A table where a non-key column depends on another non-key column
• A table with foreign keys
• A table without NULL values

How do you fix a table that violates 3NF?

• Remove attributes that do not depend on the primary key
• Create separate tables for attributes with transitive dependencies
• Add composite keys
• Remove NULL values

Which of these real-world cases breaks 1NF?

• A spaceship database storing multiple crew names in one column
• A database with a primary key
• A table using foreign keys
• A table with atomic values

What is the key difference between 2NF and 3NF?

• 2NF focuses on foreign keys, 3NF removes NULL values
• 2NF only works for composite keys
• 3NF does not allow primary keys
• 2NF removes partial dependencies, 3NF removes transitive dependencies

Which is NOT a benefit of normalization?

• Reduces redundancy
• Improves consistency
• Increases update anomalies
• Improves query performance

Which is a possible downside of normalization?

• Too many joins can slow down queries
• It increases redundancy
• It makes updates inconsistent
• It prevents data integrity

Functional vs. Semantic Dependency

• Functional Dependency (2NF) → Every non-key attribute depends on full primary key
• Semantic Dependency (3NF) → Every non-key attribute depends only on the primary key, not on other non-key attributes

Questions?

Unnormalized Space Mission Data

🔗 View Dataset on GitHub

❓ Which missions had the most hostile alien encounters?

🔗 SQL Database

Module 7
Relational Database Table Indexing

February 24, 2025

• Practice Question
• Database Table Indexing
• Project Part 1 (Mar/21), Homework 3 (Feb/24), Lab 3 (Feb/24)

Table: employees

Which SQL query retrieves the names of employees in the IT department?

Table: orders

Write an SQL query to find the total sales amount for all orders placed after 2024-02-10

Table: students

Write an SQL query to count how many students have a GPA greater than 3.6

Table: products

Which SQL query retrieves the most expensive product in the Electronics category?

Table: customers

How would you write an SQL query to count how many customers are from New York?

Which action best helps a table comply with 3NF?

• Combine all attributes into a single column
• Remove transitive dependencies by creating new tables
• Allow multi-valued attributes
• Delete the primary key

How do you resolve a table that violates 2NF?

• Remove NULL values from all columns
• Split the table into separate tables based on partial dependencies
• Add foreign keys to every table
• Ensure all attributes depend on a composite key

What is the first step to ensure a table meets 1NF requirements?

• Remove all non-key attributes
• Eliminate repeating groups and ensure atomic values
• Create a composite key with multiple columns
• Add transitive dependencies

What should you do to normalize a table from 1NF to 2NF?

• Ensure all non-key attributes are fully dependent on the entire primary key
• Add duplicate rows for clarity
• Introduce NULL values in key columns
• Remove all foreign keys

What is the best way to choose a primary key in an entity-relationship diagram (ERD)?

• Use a unique and immutable attribute
• Use a frequently updated attribute
• Choose any attribute arbitrarily
• Use a foreign key from another table

Which SQL query retrieves all employees with a salary greater than 50,000?

• SELECT salary FROM employees WHERE salary > 50000;
• SELECT * FROM employees WHERE salary > 50000;
• SELECT ALL FROM employees WHERE salary > 50000;
• SELECT employees FROM salary WHERE salary > 50000;

Which SQL join returns only matching records from both tables?

• LEFT JOIN
• RIGHT JOIN
• INNER JOIN
• FULL OUTER JOIN

Which statement best describes a foreign key?

• A unique identifier for each row in a table
• A column that establishes a relationship with a primary key in another table
• A key that allows NULL values only
• A key that must always be auto-incremented

Which SQL query correctly finds the total number of employees?

• SELECT COUNT(*) FROM employees;
• SELECT SUM(*) FROM employees;
• SELECT COUNT(salary) FROM employees;
• SELECT TOTAL(*) FROM employees;

How do you fix a table that violates 3NF?

• Remove attributes that do not depend on the primary key
• Create separate tables for attributes with transitive dependencies
• Add composite keys
• Remove NULL values

Which SQL query retrieves departments with more than 10 employees?

• SELECT department, COUNT(*) FROM employees GROUP BY department WHERE COUNT(*) > 10;
• SELECT department, COUNT(*) FROM employees GROUP BY department HAVING COUNT(*) > 10;
• SELECT department FROM employees WHERE COUNT(*) > 10;
• SELECT * FROM employees WHERE department COUNT > 10;

Which condition must be met for a table to be in 1st Normal Form (1NF)?

• No repeating groups or arrays
• Each non-key column must depend on the whole primary key
• No transitive dependencies
• Each column must be a foreign key

Database Table Indexing

How does row count affect query performance?

Table 1: 5 Rows

Table 2: 50 Rows

Table 3: 500 Rows

Full Table Scan Time Complexity

Time estimates assuming 0.01ms (10µs) per row

Real-world examples of data generation

SQL Table as a List of Rows

How Time Complexity Grows (1 to 10k)

From Table to Search Tree data structure

Indexing an Attribute with Multiple Value Occurrences

Table with Scattered Primary Keys

Color is indexed, FlowerID varies widely

How a Color Index Looks (B-tree)

A B-tree groups Color values with pointers

Indexed Attribute Lookup

An indexed attribute can be found in log(n) steps using a B-tree

MariaDB: A Chronological Overview

SQLite vs PostgreSQL vs MariaDB

MariaDB Licensing

• GPLv2 (Community Edition): Open-source, free use under GNU General Public License v2
• Enterprise License: Commercial license additional features, support, and security patches

MariaDB & GPLv2 License

Understanding the implications of the GNU General Public License v2

What Does GPLv2 Mean?

• Freedom to Use & Modify - Anyone can use and modify MariaDB
• Source Code Availability - The source code must be accessible
• Copyleft Requirement - Modified versions must also be GPLv2
• No Proprietary Forks - Cannot relicense as closed-source
• Enterprise Licensing - Commercial options exist for proprietary use

Questions?

What is the primary purpose of an index in a database?

• To store additional copies of data
• To improve query performance
• To increase storage usage only
• To prevent data duplication

Which type of index ensures that all values in a column are unique?

• Full-text index
• Composite index
• Unique index
• Primary key index

Questions?

Indexing in SQLite, PostgreSQL, and MariaDB

Database Table Indexing with MariaDB

MariaDB OneCompiler
GitHub: SE4CPS DMS Database

Why Not Index All Attributes?

February 26, 2025

• Practice Question
• Review Homework 3, Lab 3
• Review Modules 1 - 7
• Review Project Part 1 (Mar/21)
• Review Homework 4, Lab 4

Which SQL query is used to define an index?

• CREATE INDEX idx_name ON table_name(column_name);
• ALTER TABLE table_name ADD INDEX idx_name (column_name);
• INSERT INTO table_name (index_name) VALUES ('idx_name');
• UPDATE table_name SET index_name = 'idx_name' WHERE column_name = value;

Which data structure is most commonly used to store indexes in SQL databases?

• Hash Table
• Linked List
• Binary Search Tree
• B-Tree

What is the key difference between a Binary Tree and a B-Tree?

• Binary Tree has at most two children per node, a B-Tree can have multiple children per node
• A B-Tree is always balanced, whereas a Binary Tree may not be balanced
• B-Tree is optimized for disk storage, whereas a Binary Tree is primarily used in memory
• All of the above

What is the time complexity for finding a value in an indexed attribute versus a non-indexed attribute?

• Indexed: O(n), Non-Indexed: O(log n)
• Indexed: O(log n), Non-Indexed: O(n)
• Indexed: O(1), Non-Indexed: O(n log n)
• Indexed: O(n log n), Non-Indexed: O(1)

How does adding an index affect the storage complexity of a database?

• It increases storage complexity to O(n log n)
• It does not affect storage complexity
• It reduces storage complexity to O(log n)
• It decreases storage complexity to O(1)

In which scenario is adding an index not recommended?

• When the table has frequent inserts, updates, and deletes
• When the table is mostly used for read queries
• When the table has a large number of rows
• When queries often filter data using WHERE clauses

SQLite Index Performance Test

GitHub Repository

• Creating and resetting an SQLite database
• Inserting 100 million rows efficiently
• Comparing query performance with and without indexing

Questions?

Homework 3

Question 1

Please read page 128 in Textbook 1 on Natural Joins and explain one risk when using a Natural Join

Without explicitly specifying the join condition, there is a risk of accidentally choosing the same name for a new column to be added to the table even though the columns are unrelated to one another. In which case there would be unintended inclusion or exclusion of columns due to automatically matched column names.

Question 2

Please read page 141 in Textbook 1 on Multi-Table Query Performance and explain which types of queries typically require JOINS

Queries especially relevant to related information or simply that we are retrieving information from multiple sources. Querying aggregated data from multiple tables to perform calculations would require joins. The act of filtering data would also require joins because we can apply conditions that help eliminate duplicates or unnecessary information

Question 3

Please read page 149 in Textbook 1 with Figure 7-12 and explain what unmatched rows mean and how an OUTER JOIN handles them

Unmatched rows are rows in a table that do not have corresponding matches in another table, Outer join handles them by providing a way to keep them. This is done by filling the missing values from the unmatched table with NULLs

Question 4

Please read pages 67–71 in Textbook 2 on GROUP BY and explain the difference between the two queries:

            SELECT type_id, COUNT(*) FROM foods GROUP BY type_id HAVING COUNT(*) < 20;
            SELECT type_id, COUNT(*) FROM foods;


The major difference between the two is that one uses GROUP BY and HAVING and the other is a simple select query. The use of GROUP BY and HAVING allows us to aggregate the rows in foods by type_id with the condition of “having” the count of less than 20. The second query doesn’t aggregate or filter the data. The output is very different

Question 5

"For the modification to succeed, the expressions for all constraints must evaluate to true."

In the event where the values of expressions are compared, all constraints for the expressions must evaluate to true for the test of comparison to evaluate to true. Check involves verifying data integrity and so if all the constraints are met then the result is true otherwise false or null. The idea of a modification could be an insert or update, if any of the constraints evaluate to false then it is not successful and rejected

Lab 3

Question 1: Basic Selection and Projection

πname,price​(σcolor=′red′∧stockQuantity>20​(Flowers))

Question 2

πname​(σflowerID ≠ NULL​(Flowers⋈Orders))

Question 3

Using join before selection, the first expression performs a join first, then filters yellow flowers

It is inefficient since it joins all flowers with all orders, though only yellow flowers are needed

            T1← σ color=′Yellow′ ​(F)
            T2← π name ​(T2)
            T3← T1⋈T2


Question 4

Upon sending a GET /api/flowers?color=red request, the backend server processes it by extracting the query parameter

            SELECT * FROM Flowers WHERE color = 'red';


Question 5

Web interface:

Advantage: Accessible without SQL knowledge

Disadvantage: Limited query complexity

Console-based queries:

Advantage: Allows complex, customized queries

Disadvantage: Requires SQL knowledge

Question 6

SELECT category, AVG(price) AS average_price FROM Flowers GROUP BY category;
SELECT category, AVG(price) AS average_price FROM Flowers GROUP BY category HAVING AVG(price) > 10;


“Having” allows us to create the condition for price

Question 7

            CREATE TABLE flower (
                id INT PRIMARY KEY,
                color VARCHAR(50),
                heightInCm INT CHECK (heightInCm > 0),
                petalCount INT CHECK (petalCount >= 1),
                species VARCHAR(100),
                bloomingSeason VARCHAR(50),
                price DECIMAL(10, 2) CHECK (price >= 0),
                fragranceLevel INT
            );


Question 8

            SELECT f.id AS flower_id, f.name AS flower_name, f.color, s.id AS supplier_id,
                   s.name AS supplier_name, s.location
            FROM flower f
            INNER JOIN supplier s ON f.supplier_id = s.id;


Question 9

            SELECT c.id AS customer_id, c.name AS customer_name, c.email,
                   o.id AS order_id, o.order_date, o.amount
            FROM customer c
            LEFT JOIN order o ON c.id = o.customer_id;


Question 10

            SELECT p.id AS product_id, p.name AS product_name, p.price,
                   s.id AS sale_id, s.quantity_sold
            FROM product p
            RIGHT JOIN sale s ON p.id = s.product_id;


Questions?

SQLite Index Performance Test

GitHub Repository

• Creating and resetting an SQLite database
• Inserting 100 million rows efficiently
• Comparing query performance with and without indexing

Questions?

Project Part 1 (Mar/21), Homework 3 (Feb/24), Lab 3 (Feb/24)

Git Checkout & Setup for DMS (Part 1)

        # 1️⃣ Clone the repository
        git clone https://github.com/SE4CPS/DMS.git

        # 2️⃣ Navigate to the project folder
        cd DMS/project/part1

        # 3️⃣ Check current teams
        dir  # (Windows) or ls (Mac/Linux)

        # 4️⃣ Create a new team folder
        mkdir team-n
        cd team-n

Git Commit & Push (Part 2)

        # 5️⃣ Make your code changes

        # 6️⃣ Stage your new folder
        git add team-n

        # 7️⃣ Commit your changes
        git commit -m "Added team-n folder"

        # 8️⃣ Push changes to the repository
        git push origin main

February 28, 2025

• Review Module 1 - 7

Module 8
Midterm Preparation

March 3, 2025

• Midterm Question

Why is an ERD primarily useful in database design?

• It guarantees all business rules are enforced in queries
• It helps visualize entities and their relationships
• It ensures automatic indexing of all tables
• It generates efficient SQL queries

How many errors are in this SQL query?

SELECT name age FROM users WHERE username = "admin";

• 0
• 1
• 2
• 3

Which entity-relationship setup best fits an online course platform?

• Entities: Student, Course, Instructor | Relationships: Students enroll in Courses, Instructors teach Courses
• Entities: Student, Instructor, Grade | Relationships: Students are taught by Instructors, Instructors assign Grades
• Entities: Course, Instructor, Assignment | Relationships: Courses are assigned to Instructors, Assignments belong to Instructors
• Entities: Student, Course, Department | Relationships: Students belong to Departments, Courses are part of Departments

Which set of attributes best fits an ERD for a library system?

• Entities: Book, Author, Library | Attributes: Title, Biography, Location
• Entities: Member, Staff, Transaction | Attributes: Age, Salary, Timestamp
• Entities: Book, Member, Loan | Attributes: Title, Name, Due Date
• Entities: Book, Genre, Publisher | Attributes: Title, Category, Address

Which SQL data types best fit this sample data?

• OrderID: INT, Price: FLOAT, OrderDate: DATE
• OrderID: VARCHAR, Price: DECIMAL, OrderDate: TIMESTAMP
• OrderID: INT, Price: DECIMAL, OrderDate: DATETIME
• OrderID: BIGINT, Price: STRING, OrderDate: TIME

Which SQL constraints best enforce data integrity?

• UserID: NOT NULL, Email: UNIQUE, Name: PRIMARY KEY
• UserID: PRIMARY KEY, Email: UNIQUE, Name: NOT NULL
• UserID: UNIQUE, Email: NOT NULL, Name: UNIQUE
• UserID: PRIMARY KEY, Email: NOT NULL, Name: UNIQUE

Which of the following SQL operations ensures data integrity by enforcing rules on the values allowed in a column?

• Primary Key
• Foreign Key
• Check Constraint
• Index

Which approach is best for generating unique IDs in a database?

• Auto-increment for sequential numeric IDs
• Custom ID format based on business rules
• UUID for globally unique identifiers
• Using a manually entered primary key

Why did Edgar F. Codd choose relational algebra for databases?

• It provides a formal foundation based on set theory
• It simplifies database storage structures
• It ensures all queries run in constant time
• It avoids the need for indexing and optimization

How does relational algebra operate on data?

• It manipulates sets of tuples
• It processes tuples separately
• It splits attributes into relations
• It performs only calculations

Which relational algebra operation is used to retrieve specific columns from a relation?

• Selection (σ)
• Projection (π)
• Join (⨝)
• Union (∪)

Which transformation optimizes the following relational algebra query?

       π_name(σ_age > 30 (Employee ⨝ Department))

• π_name(Employee ⨝ σ_age > 30 (Department))
• σ_age > 30 (π_name (Employee ⨝ Department))
• π_name(σ_age > 30 Employee ⨝ Department)
• Employee ⨝ π_name(σ_age > 30 Department)

Which SQLite dot command is used to display the database schema?

• .read
• .schema
• .tables
• .mode

How do PostgreSQL and SQLite handle primary key generation differently?

• PostgreSQL uses SERIAL, while SQLite auto-increments INTEGER PRIMARY KEY
• Both use SERIAL for automatic primary key generation
• SQLite requires manual primary key insertion, unlike PostgreSQL
• PostgreSQL does not support automatic primary key generation

How do a console, API, and web interface differ?

• A web interface is text-based, an API is graphical, a console is automated
• A console is command-line, an API is programmatic, a web interface is graphical
• An API is for users, while a console and web interface automate tasks
• A console and API are the same, but a web interface has graphics

Which SQL command is used to add a new column to an existing table?

• ADD COLUMN
• MODIFY TABLE
• UPDATE TABLE
• ALTER TABLE

Which SQL command is used to create a new table?

• CREATE TABLE
• ADD TABLE
• NEW TABLE
• INSERT TABLE

Which query correctly retrieves departments with more than 10 employees?

• SELECT department, COUNT(*) FROM employees WHERE COUNT(*) > 10;
• SELECT department FROM employees GROUP BY department HAVING COUNT(*) > 10;
• SELECT department FROM employees WHERE COUNT(*) > 10 GROUP BY department;
• SELECT department, COUNT(*) FROM employees HAVING COUNT(*) > 10 GROUP BY department;

Which SQL query correctly calculates the total salary, highest salary, lowest salary, average salary, and employee count per department?

• SELECT department, SUM(salary), MAX(salary), MIN(salary), AVG(salary), COUNT(*) FROM employees;
• SELECT department, SUM(salary), MAX(salary), MIN(salary), AVG(salary), COUNT(*) FROM employees GROUP BY department;
• SELECT department, SUM(salary), MAX(salary), MIN(salary), AVG(salary), COUNT(*) FROM employees WHERE department GROUP BY department;
• SELECT department, SUM(salary), MAX(salary), MIN(salary), AVG(salary), COUNT(*) FROM employees HAVING department;

Which query correctly groups employees by department and counts them?

SELECT department, COUNT(*) FROM employees ___ department;

• GROUP BY
• ORDER BY
• HAVING
• WHERE

Which query retrieves departments with more than 5 employees?

SELECT department, COUNT(*) FROM employees GROUP BY department ___ COUNT(*) > 5;

• WHERE
• ORDER BY
• HAVING
• LIMIT

Which query filters before grouping rather than after?

SELECT department, COUNT(*) FROM employees ___ salary > 50000 GROUP BY department;

• HAVING
• WHERE
• GROUP BY
• ORDER BY

Which JOIN retrieves only matching rows from both tables?

SELECT employees.name, departments.name FROM employees ___ JOIN departments ON employees.dept_id = departments.id;

• LEFT
• RIGHT
• INNER
• FULL

Which JOIN retrieves all rows from the left table and matching rows from the right?

SELECT employees.name, departments.name FROM employees ___ JOIN departments ON employees.dept_id = departments.id;

• LEFT
• RIGHT
• INNER
• FULL

Which JOIN retrieves all rows from both tables, filling missing matches with NULLs?

SELECT employees.name, departments.name FROM employees ___ JOIN departments ON employees.dept_id = departments.id;

• LEFT
• RIGHT
• INNER
• FULL

Which statement correctly describes normalization levels in databases?

• Unnormalized form (UNF) allows duplicate and multi-valued attributes
• First normal form (1NF) eliminates duplicate rows but allows repeating groups
• Second normal form (2NF) requires 1NF and ensures all non-key attributes depend on the full primary key
• Third normal form (3NF) requires 2NF and ensures all attributes depend only on the primary key

Why is normalization important in database design?

• It removes redundant data and improves consistency
• It speeds up all queries by reducing table joins
• It allows storing data without any constraints
• It ensures every table has exactly one column

How does indexing improve query speed?

• Index: O(n), Table Scan: O(1)
• Index: O(n log n), Table Scan: O(1)
• Index: O(1), Table Scan: O(n log n)
• Index: O(log n), Table Scan: O(n)

When is indexing most beneficial?

• When performing many DELETE operations
• When performing many INSERT operations
• When performing many UPDATE operations
• When performing many SELECT queries

A flower shop tracks orders and customers. Each order is linked to a customer. Propose four attributes for each table and write two CREATE TABLE statements ensuring good data quality with appropriate primary key, foreign key, data types and constraints, including CHECK constraints

March 5, 2025

• Edgar F. Codd
• Midterm Question

• Born: August 19, 1923
• Known for: Inventing the Relational Database Model
• Key Contribution: Relational Algebra & Normal Forms
• Impact: Foundation for SQL & Modern Databases
• Award: ACM Turing Award (1981)

Edgar F. Codd: Technical Background

• Education – Studied Mathematics & Chemistry at Exeter College, Oxford (1944)
• Early Career – Worked as a programmer for IBM (1948)
• Ph.D. in CS – Earned a Ph.D. in Computer Science at the University of Michigan (1965).
• IBM Research – Developed the Relational Model at IBM (1970)
• Award – Received the ACM Turing Award (1981)

Challenges Before the Relational Model (1970)

• Complexity – Hierarchical & network models were hard to use
• No Standard – No unified query language
• Redundancy – Duplicate data caused inconsistencies
• Inflexibility – Structural changes were difficult
• Slow Queries – Hard to optimize data retrieval

Edgar Codd introduced the relational model in 1970 to solve these issues

Data Before Relational Databases

• Hierarchical Storage – Data was stored in **tree-like structures** (e.g., IBM IMS).
• Network Model – Complex **many-to-many links** between records (e.g., CODASYL DBTG).
• Fixed Formats – Data stored in **rigid file formats**, making changes difficult
• Manual Querying – No SQL, queries required **procedural navigation**
• Redundancy – Data duplication was common due to lack of normalization

              Example (Hierarchical Data):
              ├── Customers
              │   ├── Orders
              │   │   ├── Order Items
              │   │   ├── Payments


Before relational databases, data was difficult to manage, leading to inefficiency and inconsistency

Entities and Relations from Raw Data

              Entities:
              Customer (CustomerID, Name, Email)
              Order (OrderID, CustomerID, OrderDate)
              Product (ProductID, Name, Price)

              Relations:
              Customer - Order (One-to-Many via CustomerID)
              Order - Product (Many-to-Many via OrderID & ProductID)


"Ted" Wins Turing Award (1981)

• Award: ACM Turing Award (1981)
• Reason: Invented the Relational Database Model
• Impact: Revolutionized data storage & retrieval
• Legacy: Foundation for SQL & modern databases

Which SQL query correctly retrieves all rows from the flower table where the species is 'Rose' and the color is 'Red'?

• SELECT * FROM flower WHERE type = 'Rose' AND color = 'Red';
• SELECT * FROM flower WHERE species = 'Rose' AND color = 'Red';
• SELECT * FROM flower WHERE name = 'Rose' AND color = 'Red';
• SELECT * FROM flower WHERE category = 'Rose' AND color = 'Red';

Which SQL query correctly retrieves only the species and color columns from the flower table?

• SELECT species, color FROM flower;
• SELECT * FROM flower WHERE species, color;
• SELECT species AND color FROM flower;
• SELECT species color FROM flower;

Which SQL query correctly retrieves only the species and color columns from the flower table?

• SELECT species, color FROM flower;
• SELECT * FROM flower WHERE species, color;
• SELECT species AND color FROM flower;
• SELECT species color FROM flower;

What is the purpose of the GROUP BY clause in SQL?

• To filter rows based on a condition
• To aggregate results based on unique column values
• To sort the query results in ascending order
• To join multiple tables in a single query

A florist wants to find out how many flowers of each type were sold. Which SQL query should they use?

• SELECT flower_type, SUM(quantity) FROM sales;
• SELECT flower_type, COUNT(*) FROM sales GROUP BY flower_type;
• SELECT flower_type, quantity FROM sales ORDER BY flower_type;
• SELECT DISTINCT flower_type, COUNT(*) FROM sales;

Design an Entity-Relationship Diagram (ERD) for a flower ordering system with the following requirements:

• Three entities: Customer, Order, and Flower
• Two relationships between them
• Each table should have exactly four attributes, including foreign keys where applicable
• Pick appropriate data types for each attribute
• Include constraints such as NOT NULL, UNIQUE, CHECK where necessary
• Ensure foreign keys are properly defined

The following table represents unnormalized flower order data:

| order_id | customer_name | customer_phone | order_date  | flower_details              | total_price |
|----------|--------------|----------------|-------------|------------------------------|-------------|
| 101      | Alice Green  | 555-1234       | 2024-03-01  | Rose-Red-2, Tulip-Yellow-3   | 25.00       |
| 102      | Bob White    | 555-5678       | 2024-03-02  | Lily-White-1                 | 10.00       |


Transform this data step by step into 1NF, 2NF, and 3NF

• Start by removing repeating groups to achieve 1NF
• Eliminate partial dependencies to reach 2NF
• Remove transitive dependencies for 3NF

A florist wants to find flower types that were sold more than 10 times. Which SQL query should they use?

• SELECT flower_type, COUNT(*) FROM sales WHERE COUNT(*) > 10;
• SELECT flower_type, COUNT(*) FROM sales GROUP BY flower_type HAVING COUNT(*) > 10;
• SELECT flower_type FROM sales WHERE quantity > 10 GROUP BY flower_type;
• SELECT flower_type, SUM(quantity) FROM sales HAVING SUM(quantity) > 10;

A florist wants to find the number of different flower types sold. Which SQL query should they use?

• SELECT COUNT(*) FROM sales GROUP BY flower_type;
• SELECT DISTINCT flower_type, COUNT(*) FROM sales;
• SELECT COUNT(DISTINCT flower_type) FROM sales;
• SELECT flower_type FROM sales WHERE DISTINCT COUNT(*) > 1;

How many errors (1, 2, 3, or 4) are present in the following SQL query?

                      SELECT name, price FROM flowers ORDER BY color;


Which SQL query correctly finds the least expensive flower?

• SELECT name FROM flowers WHERE price = MIN(price);
• SELECT name FROM flowers ORDER BY price DESC LIMIT 1;
• SELECT name FROM flowers ORDER BY price ASC LIMIT 1;
• SELECT name FROM flowers GROUP BY name HAVING price = MIN(price);

In relational algebra optimization, which approach is typically used to improve query performance?

• Applying selection and projection as early as possible
• Executing Cartesian products before joins
• Performing aggregation before filtering conditions
• Avoiding the use of indexes for faster retrieval

What is the difference between an Entity, a Relation, and a Table?

• An Entity is a concept, a Relation is its structure, and a Table is its storage
• An Entity and a Table are the same, but a Relation is a connection
• A Relation is the physical storage, and an Entity is its logical form
• A Table represents multiple Entities, while a Relation is a single Entity

What do SQLite’s AUTOINCREMENT and PostgreSQL’s SERIAL have common?

• Both automatically generate unique, incrementing integer values for a column
• Both prevent manual insertion of values into the column
• Both strictly prevent ID reuse, even if rows are deleted
• Both require an explicit SEQUENCE to function

Which SQL data type is best for storing the value 2.99?

• INT
• FLOAT
• DECIMAL
• CHAR

What is the primary purpose of using JOINs in SQL?

• To combine rows from multiple tables based on a related column
• To merge two databases into one
• To sort and filter data within a single table
• To remove duplicate rows from a table

Which SQL JOIN type typically generates the most data?

• INNER JOIN
• LEFT JOIN
• RIGHT JOIN
• CROSS JOIN

Which SQL JOIN type typically generates the least data?

• INNER JOIN
• LEFT JOIN
• RIGHT JOIN
• FULL JOIN

Which of the following is not an aggregate function in SQL?

• SUM()
• COUNT()
• AVG()
• ROUND()

Why is relational algebra important for relational databases?

• It defines operations for querying and manipulating relational data
• It ensures that databases only store structured data
• It is used to enforce security and access control
• It is required to create database schemas

Which statement is true about the UNION operator in SQL?

• It combines results from multiple queries and keeps duplicates
• It only works on tables with a primary key
• It combines results from multiple queries and removes duplicates
• It requires a JOIN condition to work

Which SQL query retrieves all unique flower names that appear in either the spring_flowers or summer_flowers tables?

• SELECT name FROM spring_flowers UNION SELECT name FROM summer_flowers;
• SELECT name FROM spring_flowers INTERSECT SELECT name FROM summer_flowers;
• SELECT name FROM spring_flowers JOIN summer_flowers ON spring_flowers.id = summer_flowers.id;
• SELECT DISTINCT name FROM spring_flowers, summer_flowers;

If you need a database that allows full customization without license restrictions, would you choose SQLite, PostgreSQL, or MariaDB? Consider their licensing models and explain your choice

Midterm Exam – Friday, March 7

Time: 8:00 - 9:00 AM

Format

• 20 questions on paper
• 18 multiple-choice, 2 written response
• Allowed: 2 pencils & 1 page of notes

Scope

• Modules 1–7 (2–3 questions per module)
• Homework/Lab 1–4

Questions

Query Writing

Thanks

Module 9
Spring Break

Module 10
Relational Database Transactions

March 17, 2025

• Midterm Review
• Relational Database Transactions

Midterm Review

Why is an ERD primarily useful in database design?

• It helps picking the right operating system and database system such as SQLite
• It is a one-time task to quickly create database tables
• It helps defining SQL database queries first with stakeholders
• It helps visualize and communicate database requirements with stakeholders

How many errors are in the SQL query? Assume table, attributes, and data types are correct

                  SELECT name, stock FROM Flower WHERE name = 'rose';


• 0
• 1
• 2
• 3

Which set of entities and relationships best represents how a flower ordering system tracks customer purchase?

• Entities: Flower, Supplier, Orders | Relationships: Suppliers and Flowers, Flowers and Orders
• Entities: Customer, Payment, Discount | Relationships: Customers and Payments, Discounts and Payments
• Entities: Customer, Order, Flower | Relationships: Customers and Orders, Orders and Flowers
• Entities: Order, Delivery, Employee | Relationships: Orders and Delivery, Employees and Deliveries

Which of the following table names is NOT allowed for an order tracking table in SQL?

• order_table
• order
• orders
• “order”

Which SQL data types best fit this flower ordering system sample data?

• FlowerID: INT, Price: INT, Delivery: DATE
• FlowerID: VARCHAR, Price: DECIMAL, DeliveryDate: TIMESTAMP
• FlowerID: INT, Price: DECIMAL, DeliveryDate: DATETIME
• FlowerID: BIGINT, Price: STRING, DeliveryDate: TIME

Which SQL constraints best enforce data integrity in a flower ordering system?

• FlowerID: NOT NULL, Price: UNIQUE, Name: PRIMARY KEY
• FlowerID: PRIMARY KEY, Price: UNIQUE, Name: NOT NULL
• FlowerID: UNIQUE, Price: NOT NULL, Name: UNIQUE
• FlowerID: PRIMARY KEY, Price: NOT NULL, Name: NOT NULL

Which SQL constraint ensures that a flower's price is always greater than zero, enforcing data integrity?

• DEFAULT
• NOT NULL
• CHECK
• UNIQUE

When is AUTO_INCREMENT not a good choice for generating unique IDs in a flower ordering system?

• When the system requires sequential numeric Order IDs
• When orders need to be unique across multiple databases
• When the database only has a single server handling all orders
• When the order numbers should always increase without gaps

What database concept did Edgar F. Codd invent?

• NoSQL Databases
• The Relational Database Model
• Key-Value Stores
• Object-Oriented Databases

What is the main purpose of relational algebra in relational databases?

• To define how data is stored physically in a database
• To provide a formal way to manipulate and query relational data
• To organize data into key-value pairs for faster access
• To automatically optimize SQL queries for performance

Which relational algebra operation is used to filter rows in a relation?

• π (Projection)
• σ (Selection)
• ∪ (Union)
• × (Cartesian Product)

Which transformation optimizes the following relational algebra query for a flower ordering system?

                            π_flowerName (σ_price > 10 (Orders ⨝ Flowers))


• σ_price > 10 (π_flowerName (Orders ⨝ Flowers))
• π_flowerName (σ_price > 10 (Orders ⨝ Flowers))
• π_flowerName (Orders ⨝ (σ_price > 10 (Flowers)))
• Orders ⨝ (π_flowerName (Flowers))

In SQLite, how many files are used to store the entire database?

• One file
• Two files
• Three files
• Multiple files, depending on table count

What is a key difference between SQLite and PostgreSQL in how they run?

• Both SQLite and PostgreSQL always need a server
• PostgreSQL can run without setup, but SQLite needs extra configuration
• SQLite and PostgreSQL work the same way
• SQLite works without a server, but PostgreSQL needs one

How do a database console, API, and web interface differ?

• A web interface is text-based, an API is graphical, and a console is automated
• A console uses commands, an API is for programs, and a web interface has buttons and visuals
• An API is for users, while a console and web interface automate tasks
• A console and API are the same, but a web interface has graphics

Which SQL command is used to remove a column from an existing table?

• DELETE COLUMN
• DROP COLUMN
• REMOVE COLUMN
• ALTER COLUMN

Which SQL command is used to delete an entire table from a database?

• REMOVE TABLE
• DELETE TABLE
• DROP TABLE
• CLEAR TABLE

Which query correctly retrieves flower types that have been ordered more than 10 times?

• SELECT flower_type, COUNT() FROM orders WHERE COUNT() > 10;
• SELECT flower_type FROM orders GROUP BY flower_type HAVING COUNT(*) > 10;
• SELECT flower_type FROM orders WHERE COUNT(*) > 10 GROUP BY flower_type;
• SELECT flower_type, COUNT() FROM orders HAVING COUNT() > 10 GROUP BY flower_type;

Which JOIN retrieves only matching rows from both tables?

SELECT * FROM employees ___ JOIN departments ON employees.dept_id = departments.id;

• LEFT
• RIGHT
• INNER
• FULL

Please draw an Entity-Relationship Diagram (ERD) for a flower supply system with two entities. Ensure that your diagram clearly indicates primary keys (PK), foreign keys (FK), and attribute types and constraints.

• Flower (4 attributes, including a primary key and a foreign key)
• Supplier (4 attributes, including a primary key)
• One relationship (one-to-many):
• One flower is supplied by one supplier
• One supplier can supply many flowers

Questions

March 19, 2025

Relational Database Transactions

• ACID Properties
• Transaction States
• Concurrency Control
• Isolation Levels
• Practice Exercise

Relational Database Transactions

ACID Properties

Atomicity

• Ensures that all operations in a transaction are completed
• If any part of the transaction fails, the entire transaction is rolled back

Consistency

• Ensures the database remains in a valid state before and after transactions
• Transactions must respect all integrity constraints

Isolation

• Transactions execute independently without interfering with each other
• Prevents issues like invalid reads, non-repeatable reads, and phantom reads

Durability

• Ensures that once a transaction is committed, it remains permanently stored
• Data is saved even in case of a system crash

A transaction partially executes, and some operations succeed while others fail, leaving the database in an inconsistent state. Which ACID property is violated?

• Atomicity
• Consistency
• Isolation
• Durability

Two transactions read and update the same record simultaneously, leading to inconsistent data due to uncommitted changes. Which ACID property is violated?

• Atomicity
• Consistency
• Isolation
• Durability

Transaction States

Concurrency Control

What is Concurrency Control?

Concurrency control ensures that multiple transactions can execute simultaneously without interfering with each other, maintaining data integrity and consistency

Problems in Concurrency

• Invalid Reads - A transaction reads uncommitted changes from another transaction
• Non-Repeatable Reads - A transaction gets different results when reading the same data multiple times
• Phantom Reads - A transaction sees new rows inserted by another transaction during its execution

Concurrency Control Methods

Isolation Control

Isolation ensures that transactions execute independently, preventing conflicts and inconsistencies when multiple transactions run concurrently

Which isolation level allows invalid reads, making it the least strict but fastest?

• Serializable
• Repeatable Read
• Read Committed
• Read Uncommitted

Which isolation level is generally recommended for preventing anomalies while maintaining good concurrency in most applications?

• Serializable
• Repeatable Read
• Read Committed
• Read Uncommitted

Hotel Reservation

    SELECT RoomID FROM Rooms
    WHERE RoomID NOT IN (
        SELECT RoomID FROM Reservations WHERE CheckInDate < '2025-06-15' AND CheckOutDate > '2025-06-10')
    LIMIT 1;

    INSERT INTO Reservations (ReservationID, CustomerID, RoomID, CheckInDate, CheckOutDate)
    VALUES (202, 15, 301, '2025-06-10', '2025-06-15');

    INSERT INTO Payments (PaymentID, ReservationID, Amount, PaymentDate)
    VALUES (501, 202, 499.99, '2025-03-15');


ACID Properties: Atomicity

What happens if a transaction fails during execution?

• All changes are permanently saved
• Only successful operations are kept
• All changes are rolled back
• The database remains locked

Correct Answer: C. All changes are rolled back - Atomicity ensures transactions are all-or-nothing

ACID Properties: Consistency

Which statement best describes the Consistency property?

• Data is always encrypted
• Database moves from one valid state to another
• Records are stored in sequential order
• All users see the same data version

Correct Answer: B. Database moves from one valid state to another - Consistency maintains data integrity rules

ACID Properties: Isolation

What is the primary purpose of the Isolation property?

• To prevent unauthorized access
• To make transactions execute faster
• To prevent concurrent transactions from interfering
• To ensure data encryption

Correct Answer: C. To prevent concurrent transactions from interfering - Isolation ensures concurrent transactions appear sequential

Overlapping Hotel Reservations

Hotel Reservation with Transaction

            START TRANSACTION;

            SELECT RoomID FROM Rooms
            WHERE RoomID NOT IN (
                SELECT RoomID FROM Reservations WHERE CheckInDate < '2025-06-15' AND CheckOutDate > '2025-06-10')
            LIMIT 1
            FOR UPDATE;

            INSERT INTO Reservations (ReservationID, CustomerID, RoomID, CheckInDate, CheckOutDate)
            VALUES (202, 15, 301, '2025-06-10', '2025-06-15');

            INSERT INTO Payments (PaymentID, ReservationID, Amount, PaymentDate)
            VALUES (501, 202, 499.99, '2025-03-15');

            COMMIT;


Transaction Locking in Hotel Reservation

ACID Properties in Transactions

Oracle 1977 - today

Relational Databases

Licensing: Oracle vs Others

March 21, 2025

Lab Practice

Module 11
Relational Database Security 🔒

March 24, 2025

Relational Database Security

• Database Security
• Database Access Control
• Database Fragmentation
• Database Encryption
• Database SQL Injection
• Database Query Log

Database Security

Zero Trust in Databases

• Never trust by default
• Authenticate every access request
• Enforce least privilege at all levels
• Continuously monitor and log activity
• Combine RBAC, IP rules, and encryption

Database Access Control

What Is Access Control?

Controls who can access data

• Prevents unauthorized access
• Enforces least privilege
• Core to database security

API Key Access Control

Restrict DB/API access via unique API keys

• Map keys to user roles
• Used in web apps, microservices
• Regenerate or revoke compromised keys

DB Connection URL

        postgresql://username:password@host:port/database?sslmode=require


• username: neondb_owner
• password: npg_M5sVheSzQLv41234 (acts like API key)
• host: ep-shrill-tree-a819xf7v-pooler.eastus2.azure.neon.tech
• database: neondb
• sslmode: require (enforces encrypted connection)

IP-Based Access Control

Restrict DB/API access to specific IP addresses

• Allowlist trusted IPs only
• Block unauthorized external sources
• Used in firewalls and DB configs

Access Control Models

• DAC: Owner controls access
• MAC: Based on security labels
• RBAC: Role defines permissions

Access Control Models: Use Case

Mandatory Access Control (MAC)

• System enforces security labels
• Access requires clearance level
• Used in military and classified systems

Discretionary Access Control (DAC)

• Object owners define access
• Permissions can be delegated
• Simple but hard to audit at scale

DAC: Granting User Access

GRANT SELECT ON patient_records TO doctor_alex;

• Owner of the table grants access
• Follows discretionary access model
• Permissions can be passed to others (if allowed)

Role-Based Access Control (RBAC)

• Users → Roles → Permissions
• Centralized permission management
• Scales well in large systems

Creating and Assigning Roles (UA)

CREATE ROLE physician;

CREATE USER dr_smith WITH PASSWORD 'secure123';

GRANT physician TO dr_smith;

Common Privileges/Permissions (P)

• SELECT, INSERT, UPDATE, DELETE
• CREATE, DROP, ALTER
• GRANT, REVOKE

Granting Permissions (PA)

GRANT SELECT ON employees TO physician;

Allows read-only access to a table

Revoking Permissions (PA)

REVOKE SELECT ON employees FROM physician;

Removes previously granted privileges

Revoke All Permissions

        REVOKE ALL PRIVILEGES ON ALL TABLES IN SCHEMA public FROM PUBLIC;


Granular Access Support

Database Fragmentation

Database Vertical Fragmentation for Privacy

• Separates identifiers from sensitive content
• Example: store patient names in one table/database, diagnoses in another
• Reduces risk of re-identification if breached
• Used in privacy-preserving and regulatory-compliant systems

Summary

• Start with API key or user identity
• Use RBAC to simplify privilege logic
• Use GRANT/REVOKE for control
• Choose DB based on granularity needs

Database Encryption

Plain Text vs. Encrypted Text

What Is Database Encryption?

• Protects data by converting it to unreadable form
• Requires a key to decrypt and access
• Mitigates data breach impact

Why Encrypt Databases?

• Protect sensitive data at rest and in transit
• Support regulatory compliance (e.g., GDPR, HIPAA)
• Prevent insider and external threats

Types of Encryption

• At Rest: Encrypts stored data (e.g., disk, tablespace)
• In Transit: Encrypts data over the network
• Column-Level: Encrypt specific fields (e.g., SSN)

Transparent Data Encryption (TDE)

• Encrypts data files automatically
• Keys managed by the DB engine
• Minimal application changes required

Example: Column Encryption

CREATE TABLE patients (
          id SERIAL,
          name TEXT,
          ssn TEXT ENCRYPTED FOR STORAGE
        );

Key Management

• Keys can be internal or managed externally (KMS, HSM)
• Rotation and protection are critical
• Lost keys = lost data

Performance Considerations

• Encryption adds CPU overhead
• Column-level is slower but more selective
• Use indexing carefully on encrypted fields

Risks Without Encryption

• Plaintext data exposed in disk theft or backups
• Network sniffing leaks sensitive data
• Non-compliance with data protection laws

Risks With Encryption?

Database Encryption Support

Summary

• Encrypt data to reduce breach risks
• Choose level: full, column, or in transit
• Use strong key management practices
• Verify DB feature support before implementation

Database SQL Injection

What Is SQL Injection?

• Attacker manipulates SQL queries via user input
• Can expose, modify, or delete data
• Common in apps that use unsafe query building

Vulnerable Python Example

        user = input("Enter username: ")
        query = f"SELECT * FROM users WHERE name = '{user}'"
        cursor.execute(query)


Injection Attack Example

        Input: alice' OR '1'='1
        Query: SELECT * FROM users WHERE name = 'alice' OR '1'='1'


Bypasses authentication and returns all users

Safe Python Example (Parameterized)

        user = input("Enter username: ")
        query = "SELECT * FROM users WHERE name = %s"
        cursor.execute(query, (user,))


Using parameters prevents SQL injection

SQL Injection Prevention Tips

• Always use parameterized queries
• Never concatenate raw input into SQL
• Use ORM libraries (e.g., SQLAlchemy, Django ORM)
• Sanitize and validate input when needed

Database Query Log

Why Log SQL Queries?

• Track suspicious or slow queries
• Monitor access patterns
• Detect SQL injection attempts
• Improve performance and security

Basic Logging in Python

        import logging
        logging.basicConfig(level=logging.INFO)

        query = "SELECT * FROM patients"
        logging.info(f"Running query: {query}")
        cursor.execute(query)


Logging Query with Parameters

        query = "SELECT * FROM patients WHERE name = %s"
        params = ("Alice",)
        logging.info("Query: %s | Params: %s", query, params)
        cursor.execute(query, params)


Enabling SQL Logs in Databases

• PostgreSQL: log_statement = 'all'
• MySQL/MariaDB: general_log = ON
• SQLite: Use logging in wrapper code

Best Practices for Query Logging

• Mask sensitive values in logs (e.g., passwords)
• Use rotating log files to manage size
• Centralize logs for analysis (e.g., ELK stack)
• Correlate with user actions for traceability

Questions

Case Study 1: Stolen Laptop

A doctor’s laptop with a local database of patient records is stolen. The database file is unprotected and contains names, SSNs, and diagnoses

What security measure would have reduced the risk?

Case Study 2: Unusual Patient Record Access

A staff member accessed over 200 patient records within 5 minutes — far beyond typical behavior for their role

What access control or monitoring strategy should be used?

Case Study 3: SQL Injection Breach

A public-facing web app allowed attackers to run raw SQL through a login form, exposing the entire user database

What protection should have been implemented?

Questions

Homework 4 (Mar/31), Lab 4 (Mar/31), Project Part 2 (Apr/20)

March 26, 2025

Relational Database Security Implementation

• Database Encryption PostgreSQL
• Database Hashing PostgreSQL
• Database IP-Based (Network) Access Control PostgreSQL
• Database User-Based Access Control
• Database Role-Based Access Control
• Database Fragmentation
• Database SQL Parameterized
• Database Query Log PostgreSQL and SQLite
• Database Encryption SQLCipher
• Database Case Study

Database Encryption PostgreSQL

Create Extension

            CREATE EXTENSION IF NOT EXISTS pgcrypto;


PGP Encryption

Reference: PostgreSQL pgcrypto Documentation

Drop Table

            DROP TABLE secure_data;


Create Table

            CREATE TABLE IF NOT EXISTS secure_data(
              id SERIAL PRIMARY KEY,
              sensitive_info BYTEA NOT NULL
            );


Insert Encrypted Data

    INSERT INTO secure_data (sensitive_info)
    VALUES (pgp_sym_encrypt('Secret Information', 'my_strong_password'));


Select Encrypted Data

    SELECT id, ENCODE(sensitive_info, 'hex') AS encrypted_info
    FROM secure_data;


Decrypt Data

    SELECT id, pgp_sym_decrypt(sensitive_info, 'my_strong_password')
    AS decrypted_info
    FROM secure_data;


Database Hashing PostgreSQL

Hashing vs. Encryption

• Hashing: One-way, irreversible; used for password storage and verification
• Encryption: Two-way, reversible; protects sensitive data, allows secure retrieval

Create User with SCRAM-SHA-256

    SET password_encryption = 'scram-sha-256';
    CREATE ROLE username WITH LOGIN PASSWORD 'your_secure_password';


List All Users and Roles

        SELECT rolname, rolsuper, rolcreaterole, rolcreatedb, rolcanlogin
        FROM pg_roles;


Create User with MD5 (Legacy)

    SET password_encryption = 'md5';
    CREATE ROLE username WITH LOGIN PASSWORD 'your_secure_password';


Database IP-Based (Network) Access Control PostgreSQL

Questions

Database User-Based Access Control

Create Users (Flower Store)

    CREATE USER Bob PASSWORD 'bob_pass_123!';
    CREATE USER Alice PASSWORD 'alice_pass_123!';


Grant Permissions to Users

        -- Grant full access to Bob
        GRANT ALL PRIVILEGES ON Flowers TO Bob;

        -- Grant read-only access to Alice
        GRANT SELECT ON Flowers TO Alice;


List and Switch Users

        -- Show all users and roles
        SELECT rolname FROM pg_roles;

        -- Switch user temporarily
        SET ROLE Alice;

        -- Switch back
        RESET ROLE;


Test Queries with User Permissions

        -- Switch to user 'Alice' (read-only)
        SET ROLE Alice;

        -- Successful query (Alice can SELECT)
        SELECT * FROM flowers;

        -- Failed query (Alice cannot DELETE)
        DELETE FROM flowers WHERE id = 1;

        RESET ROLE;

        -- Switch to user 'bob' (full access)
        SET ROLE Bob;

        -- Successful query (Bob can DELETE)
        DELETE FROM flowers WHERE id = 1;

        RESET ROLE;


Revoke User Access

    REVOKE INSERT ON flowers FROM Bob;


Questions

Database Role-Based Access Control

Create Roles

        CREATE ROLE viewer;
        CREATE ROLE manager;


Create Users and Assign Roles

        CREATE USER alice PASSWORD 'alice_pass';
        CREATE USER bob PASSWORD 'bob_pass';

        GRANT viewer TO alice;
        GRANT manager TO bob;


Grant Permissions to Roles

        GRANT SELECT ON flowers_core TO viewer;
        GRANT SELECT, INSERT, UPDATE ON flowers_pricing TO manager;


Test Role-Based Access

        GRANT alice TO current_user;
        SET ROLE alice;
        SELECT * FROM flowers_core;

        SELECT * FROM flowers_pricing;

        RESET ROLE;


Questions

Database Fragmentation

Split Table: Core Info

        CREATE TABLE flowers_core (
          id INTEGER PRIMARY KEY,
          name TEXT
        );


Split Table: Pricing Info

        CREATE TABLE flowers_pricing (
          id INTEGER PRIMARY KEY,
          price REAL
        );


Insert Fragmented Data

        INSERT INTO flowers_core (id, name) VALUES (1, 'Rose');
        INSERT INTO flowers_pricing (id, price) VALUES (1, 2.99);


Assign Access to Users

        GRANT SELECT ON flowers_core TO viewer;
        GRANT SELECT, INSERT, UPDATE ON flowers_pricing TO manager;


Questions

Database SQL Parameterized

Safe SQLite Parameter

Database Query Log PostgreSQL and SQLite

        -- In postgresql.conf:
        logging_collector = on
        log_directory = 'log'
        log_filename = 'postgresql-%Y-%m-%d.log'
        log_statement = 'all'
        log_min_error_statement = error
        log_min_messages = warning


Grant Access and Test as Alice

        GRANT USAGE ON SCHEMA public TO Alice;
        GRANT SELECT ON team1_flowers TO Alice;
        -- GRANT ALL PRIVILEGES ON team1_flowers TO Alice;
        GRANT Alice TO current_user;
        SET ROLE Alice;
        SELECT * FROM team1_flowers;
        RESET ROLE;


SQLite Query Logs - Option 1

        sqlite3 mydatabase.db
        .echo ON
        .tables
        .schema


SQLite Query Logs - Option 2

        sqlite3 mydatabase.db
        .echo ON
        .output my_log.txt
        .schema


Questions

Database Encryption SQLCipher

Why Encrypted SQLite?

• Mobile: Android, iOS smartphones and tablets
• Wearables: Smartwatches, fitness trackers
• Smart TV: Securing user preferences and viewing history
• Desktop: Windows, macOS, Linux apps
• Compliance: Ensures GDPR, HIPAA, and security standards compliance

Clone SQLCipher Repository

git clone https://github.com/sqlcipher/sqlcipher.git

SQLCipher Encryption

Reference: SQLCipher GitHub Documentation

Encrypting with SQLCipher

        sqlcipher mydatabase.db

        sqlite> PRAGMA key = 'your_secure_password';
        sqlite> CREATE TABLE flowers(id INTEGER, name TEXT);
        sqlite> INSERT INTO flowers VALUES (1, 'Rose');
        sqlite> .quit


Questions

⚠️ No Access Control in SQLite

• SQLite does not support user roles or permissions
• Anyone with access to the database file has full control
• No built-in authentication or authorization
• Use OS-level file permissions or encryption (e.g., SQLCipher) for protection

March 26, 2025

Relational Database Security Implementation

• Database Encryption PostgreSQL
• Database Hashing PostgreSQL
• Database IP-Based (Network) Access Control PostgreSQL
• Database User-Based Access Control
• Database Role-Based Access Control
• Database Fragmentation
• Database SQL Parameterized
• Database Query Log PostgreSQL and SQLite
• Database Encryption SQLCipher
• Database Case Study

Database Case Study

Case Study: Bike Rental Platform

A bike rental company uses a PostgreSQL database to manage rentals, customer accounts, and location check-ins.

• Some team members manage prices, others handle station maintenance records
• Rental submissions come from a public web app
• Data should be monitored for abuse or repeated failures

Which role-based controls, logging settings, and SQL security features would you apply?

Case Study: Furniture Store Inventory

A local furniture business tracks product inventory, employee tasks, and customer orders in PostgreSQL.

• Warehouse staff update stock; sales staff access product and pricing info
• Admins need analytics logs without modifying data
• Mobile apps use local SQLite for offline browsing

How would you design user roles, query logging, and local database encryption?

Case Study: Flower Store Order System

A flower shop uses both an online order system and an in-store terminal, with all data synced to a central PostgreSQL database.

• Customer input is stored, including flower types and delivery info
• Employees have different access levels (viewer vs. manager)
• Product details and prices are fragmented into separate tables

What access control model, SQL safety, and fragmentation strategy makes sense here?

Case Study: Unusual Patient Record Access

A staff member accessed over 200 patient records within 5 minutes — far beyond typical behavior for their role

What access control or monitoring strategy should be used?

Case Study: SQL Injection Breach

A public-facing web app allowed attackers to run raw SQL through a login form, exposing the entire user database

What protection should have been implemented?

March 28, 2025

Lab - Database System for Hiking Store

Module 12
Relational Database and Data Distribution

March 31, 2025

Relational Database and Data Distribution

• Understanding Distributed Databases
• Horizontal vs Vertical Partitioning
• Data Replication
• CAP Theorem
• Consistency Models
• Implementation
• Limitations

Horizontal vs Vertical Partitioning

Data Replication in Distributed Databases

Consistency Models in Distributed Databases

Replication Across PostgreSQL Nodes 🌷

import psycopg2
conns = [psycopg2.connect(host=h, dbname="garden", user="u", password="p") for h in ["db1", "db2", "db3"]]
def replicate(flower_id, flower_data):
    for conn in conns:
        conn.cursor().execute("INSERT INTO flowers (id, data) VALUES (%s, %s)", (flower_id, flower_data))
        conn.commit()
replicate(7, '{"type": "Rose", "color": "Red"}')


Horizontal Partitioning Across PostgreSQL Nodes 🌼

import psycopg2
conns = [psycopg2.connect(host=h, dbname="garden", user="u", password="p") for h in ["db1", "db2", "db3"]]
def insert_shard(flower_id, flower_data):
    conn = conns[flower_id % len(conns)]
    conn.cursor().execute("INSERT INTO flowers (id, data) VALUES (%s, %s)", (flower_id, flower_data))
    conn.commit()
insert_shard(7, '{"type": "Rose", "color": "Red"}')


Semantic Horizontal Partitioning 🌹

import psycopg2
partitions = {
    "Rose": psycopg2.connect(host="db1", dbname="garden", user="u", password="p"),
    "Tulip": psycopg2.connect(host="db2", dbname="garden", user="u", password="p"),
    "Daisy": psycopg2.connect(host="db3", dbname="garden", user="u", password="p")
}
def insert_by_type(flower_type, flower_data):
    conn = partitions[flower_type]
    conn.cursor().execute("INSERT INTO flowers (type, data) VALUES (%s, %s)", (flower_type, flower_data))
    conn.commit()
insert_by_type("Rose", '{"color": "Red", "season": "Spring"}')


Modern Frameworks Supporting Distributed Databases

• TiDB: Distributed SQL engine with horizontal scalability (MySQL compatible)
• CockroachDB: SQL-based, distributed transactions, strongly consistent (CP)
• FoundationDB: ACID-compliant key-value store, used in Apple ecosystem
• Apache Cassandra: Decentralized, wide-column store, CP-oriented
• MongoDB: Document database with sharding and replica sets (AC)
• Amazon DynamoDB: Managed NoSQL with partitioning and replication (AP)
• FaunaDB: Globally distributed serverless database with strong consistency

Limitations: Distributed vs SQL Databases

Questions

Which describes semantic horizontal partitioning in distributed databases?

• Data is split by fixed-size blocks and distributed randomly
• Rows are partitioned based on row ID modulo node count
• Data is routed to nodes based on meaningful attributes like category or type
• Each column is stored on a different node

What does the CAP theorem state about distributed systems?

• All three properties—Consistency, Availability, and Partition Tolerance—can always be guaranteed
• Only Consistency and Availability matter in practice
• Only two of Consistency, Availability, and Partition Tolerance can be fully guaranteed
• CAP applies only to SQL databases

Which database is commonly categorized as CP in the CAP theorem?

• MongoDB
• CouchDB
• DynamoDB
• MySQL

What kind of partitioning splits data by rows?

• Vertical partitioning
• Horizontal partitioning
• Semantic indexing
• Data denormalization

In distributed databases, what is a typical challenge of replication?

• Ensuring real-time video rendering
• Achieving strong consistency across nodes
• Disabling logging and backups
• Maintaining monolithic code structure

Which replication type allows multiple nodes to accept writes?

• Primary-Secondary
• Multi-Primary
• Read-Only
• Snapshot-based

Which consistency model ensures every read returns the latest write?

• Eventual Consistency
• Monotonic Reads
• Causal Consistency
• Strong Consistency

What kind of partitioning splits columns across different nodes?

• Vertical partitioning
• Horizontal partitioning
• Logical segmentation
• Key-based sharding

Why is single-node MySQL considered AC (not CP)?

• It supports network partition tolerance
• It guarantees consistency and availability in a local setup
• It scales horizontally by default
• It uses a NoSQL backend

April 2, 2025

Hands-on Distributed SQL with Python

• Simulating Distribution with PostgreSQL and SQLite
• Data Replication Logic in Python
• Horizontal Partitioning: Hash-Based and Semantic
• Tracking with UUIDs Across Nodes
• Fallback Reads and Resilient Lookups
• Manual Syncing Between Nodes
• Aggregating and Querying Distributed Data

What is a benefit of inserting the same flower data into both PostgreSQL and SQLite?

• Increases local latency
• Reduces RAM usage
• Improves availability through replication
• Forces vertical partitioning

Which node stores "Rose" flower data in our semantic partitioning example?

• PostgreSQL
• Redis
• SQLite
• MySQL

Which concept does hash-based partitioning demonstrate in our example?

• Random access pattern
• Deterministic row distribution based on ID
• Query optimization by join reordering
• Vertical partitioning by field type

Which describes semantic horizontal partitioning in distributed databases?

• Data is split by fixed-size blocks and distributed randomly
• Rows are partitioned based on row ID modulo node count
• Data is routed to nodes based on meaningful attributes like category or type
• Each column is stored on a different node

What does the UUID field help us achieve in a distributed database?

• Improve compression
• Track identical records across different nodes
• Increase query speed
• Reduce memory usage

Why do we use UUID instead of primary key when syncing data?

• Primary keys are always duplicated
• UUIDs are guaranteed to be unique across systems
• UUIDs improve performance of joins
• UUIDs make databases faster to start

Which operation simulates fault tolerance in our application?

• Manual table drop
• Fallback read from SQLite if PostgreSQL fails
• Reading and writing only to PostgreSQL
• Trigger-based deletion

What does the manual sync function do in our demo?

• Deletes all rows from SQLite
• Clones the PostgreSQL schema to SQLite
• Pushes unsynced records from SQLite to PostgreSQL
• Backs up PostgreSQL to a file

What feature does the query aggregation function demonstrate?

• Distributed joins
• Single-node analytics
• Combining results from multiple nodes
• Binary tree sorting

Questions

Which of the following best describes our demo's architecture?

• Vertical scaling with caching
• Monolithic query planner
• Python-based logic controlling two independent databases
• Multi-master SQL cluster with global consensus

Questions

Homework 4 (Apr/18), Lab 5 (Apr/18), Project Part 2 (Apr/20)

Thanks

Module 13
Relational Database and Data Aggregation

Module 14
Project Presentation

Module 15
Final Preparation

Syllabus

Database Management Systems (COMP-163-01)

Class Schedule:

Time: 08:00 AM – 09:20 AM on Monday, Wednesday, Friday

Location: John T Chambers Technology Center 114 (CTC 114)

Course Description

A Database Management System (DMS) is designed for the efficient storage, access, and update of data. This course explores DMS from two main perspectives:

• User-Centered Perspective: Data models, query languages, and design techniques
• System Implementation Perspective: Policies, algorithms, and data structures for DMS design and implementation

Course Objectives

• Understand DMS functionality to select and utilize a DMS effectively
• Analyze data requirements and develop database schemas
• Create, manipulate, and query data using SQL
• Understand transaction processing concepts (ACID)
• Develop and implement access control policies
• Evaluate and utilize indexing structures
• Understand the theoretical foundations of query languages
• Integrate a DMS with a programming environment

Prerequisites

• COMP 51: Fundamental programming skills
• COMP 53: Basic data structures and algorithms

Teaching Assistant

Instructor

Textbooks:

• Grant Allen , Mike Owens (20210)The Complete Reference
• James, Andy, Paul (2010)The Definitive Guide to SQLite

Course Topics

• Entity-Relationship Models
• Relational Data Model and Algebra
• SQL: Data Definition, Manipulation, and Queries
• Schema Design and Normalization
• SQL Application Interfaces
• Static and Dynamic Indexes
• Query Processing and Optimization
• Security in Databases
• Transaction Management (Serializability, Recoverability)
• Concurrency Control
• NoSQL Databases

Grading

• Labs: 15%
• Homework: 15%
• Project: 40%
• Exams: 30%

Assignments and Exams

Policies

• Attendance and Participation: Active participation is required. Additional points may be awarded for consistent engagement
• Late Submissions:
  • Late assignments accepted during the next class with a 20% penalty
  • No makeup exams unless excused for valid reasons
• Academic Integrity: Academic dishonesty (e.g., plagiarism, cheating) will result in a grade of zero for the assignment or more severe penalties for repeated offenses.
• Collaboration: Collaborative problem-solving is encouraged but must stop short of sharing code or written work
• Accommodations: Students requiring accommodations should contact the Office of Services for Students with Disabilities at McCaffrey Center, Rm. 137.
  • Phone: 209-946-3221
  • Email: ssd@pacific.edu
  • Website: Disabilities Support

Canvas and Course Updates

All course materials, announcements, and assignments will be posted on Canvas. Check regularly for updates

Honor Code

Students are expected to act with integrity, honesty, and responsibility. Violations of the Honor Code will be reported to the Office of Student Conduct and Community Standards

For more details, see the University Academic Honesty Policy

Source Document: Course Syllabus
