Module 2
Requirements Engineering for Industry 4.0 Applications

Every Software Engineering Starts with Requirements

Requirement

The IoT-enabled system should allow users to rent bikes easily through smart connectivity and real-time tracking

Requirement

The IoT-enabled system should allow registered users to rent a bike by selecting a location using a GPS-enabled app, unlocking the bike via a smart lock, and completing payment seamlessly within three steps

Requirement

Purpose: IoT-Improved Bike Rental System to manage rentals and track customers, bikes, and transactions in real-time

• Track the availability of bikes, including their unique ID, condition, and location using IoT sensors
• Log rental transactions, including bike ID, customer ID, rental start and return time, and battery level (if e-bikes)
• Maintain customer records, including name, contact details, and rental history
• Integrate smart locks for secure bike rentals and returns
• Provide real-time notifications to users about bike condition, availability, and usage stats via the app

Translating Textual/Visual Requirements into Epics

What Are Epics?

What Are Epics?

Epics are broad categories of work that can be broken down into smaller, actionable tasks or user stories

What an Epic Should Include

• Title: A concise, descriptive name for the epic
• Description: A brief overview of the functionality or goal the epic addresses
• Goals: High-level objectives or outcomes that the epic aims to achieve.
• Related User Stories: A list of smaller tasks or features that contribute to the epic

What Are Epics?

Examples:

• Implement Seamless 3-Step Bike Rental Process
• Real-Time Bike and User Management

Adding User Story Requirements into Epic

What Are User Stories?

What Are User Stories?

User stories are specific features or tasks that can be completed within a short time frame, often within a sprint

What a User Story Should Include

• Title: A short, clear description of the user story
• Description: A brief explanation of the user need and the goal
• Acceptance Criteria: Specific conditions that must be met for the story to be considered complete

Acceptance Criteria

• Definition: Conditions that must be met for a user story or feature to be considered complete
• Purpose: To ensure all requirements are satisfied and the feature works as expected
• Example: "As a user, I should select a bike from a list of available options and proceed to checkout."
• Components:
  • Clear and testable conditions
  • Defines the scope of functionality
  • Helps with validation and verification

User Story Template

As a [user role],

I want to [desired action],

Because [reason or benefit]

User Stories for Bike Rental

• As a registered user, I want to select a bike from available options, Because I want to quickly find a bike that suits my needs
• As a registered user, I want to unlock the bike using a mobile app, Because I want a seamless and keyless rental experience
• As a registered user, I want to complete the payment for bike rental through the app, Because I want to finalize my rental quickly and securely

Adding Implementation Task Requirements into User Stories

Implementation Tasks

Implementation tasks are specific, actionable steps required to complete a user story or feature. They include:

• Breaking down complex features into manageable pieces of work
• Focusing on the technical aspects of development
• Ensuring each task is clear, achievable, and aligned with the project's goals

Translating Epic / User Story / Task Requirements into Issue / Ticket Requirements

Product Backlog

The product backlog is a prioritized list of user stories, features, and tasks that need to be completed for the product. It includes:

• All user stories related to the project
• Prioritized tasks and features based on value and importance
• Items are continuously reviewed and refined throughout development

Backlog: https://github.com/SE4CPS/BikeIoT/issues

Translating Epic / User Story / Task Requirements into Code Implementation and Issue / Ticket Requirements

Git Commit Message

    git commit -m "Implements #3 - Bike Selection UI"


Types of Requirements

• UI Requirements: Define user interaction and design
• Architecture Requirements: Specify system structure and components
• Database Requirements: Outline data storage and access
• Functional Requirements: Define core features and functionality
• Non-Functional Requirements: Define performance and scalability
• Security Requirements: Protect against unauthorized access
• Performance Requirements: Specify responsiveness and load capacity
• Compliance Requirements: Ensure legal and regulatory adherence

Requirement Priority

• Must Have: Critical features needed for system functionality
• Should Have: Important but non-essential features that can be deferred.
• Nice to Have: Desirable features that can be added if resources allow

Effort Estimation: T-Shirt Size

• Small (S): Low complexity or effort, typically takes a short time
• Medium (M): Moderate complexity, takes a moderate amount of time
• Large (L): High complexity, requires significant effort and time
• Extra Large (XL): Very high complexity, requires substantial time and resources

Effort Estimation: Fibonacci Numbers

• 1: Very low effort, simple task that requires little time
• 2: Low effort, simple task with a bit more time required
• 3: Moderate effort, task that requires a reasonable amount of time
• 5: High effort, more complex task with significant time and resources
• 8: Very high effort, complex task requiring considerable time and resources
• 13: Extremely high effort, very complex task with substantial time and resources

Today: January 22, 2025

• Requirement Gathering
• Requirement Tracebility Matrix
• Dependency Matrix
• Use Case
• Lab 1 and Homework 1

Requirements Gathering

What is needed for the software product?

Requirement Types

• Requirement → High-level need
• Epic → Larger body of work
• User Story → Specific deliverable
• Verification/Validation Ticket → Ensure correctness
• Task → Actionable work item

Getting User Requirements from the Client

• Ask open-ended questions to understand needs
• Use tools like surveys or interviews
• Clarify unclear points to avoid assumptions
• Document the conversation for future reference

Example: CPC/IoT User Requirements

• Req 001: The system shall support remote monitoring of IoT devices via a secure web interface
• Req 002: The IoT devices shall transmit data to the cloud at intervals of 10 seconds
• Req 003: The system shall notify users of critical device status changes within 5 seconds
• Req 004: The IoT platform shall allow for firmware updates over-the-air (OTA)

Process Requirements

Verification

Ensures the product is built as per specifications. ("Are we building the product right?")

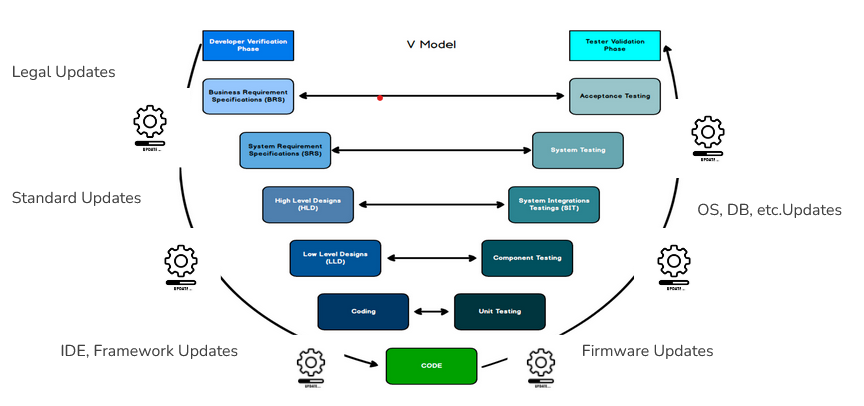

Verification in the V-Model

Purpose: Acts as a quality gate to ensure readiness for the next stage

Verification at Each Stage:

• Requirements Analysis → System Design: Verify requirements are clear, complete, and testable
• System Design → Architectural Design: Verify high-level design meets specified requirements
• Architectural Design → Module Design: Verify components align with design goals
• Module Design → Implementation: Verify module designs are correct and implementable

Validation

Confirms the product meets user needs. ("Are we building the right product?")

Horizontal and Vertical Traceability

Test Tickets: Verification

• Ticket ID: #VT-001 Task: Review the system architecture to ensure alignment with requirements
• Ticket ID: #VT-002 Task: Run unit tests to ensure each module meets functionality specifications
• Ticket ID: #VT-003 Task: Perform integration testing to verify interfaces between modules

Test Ticket: Validation

• Ticket ID: #VD-001 | Task: Conduct acceptance testing to verify user needs are met
• Ticket ID: #VD-002 | Task: Perform usability testing for user satisfaction
• Ticket ID: #VD-003 | Task: Validate real-world data processing accuracy

Project

• Requirement: The system must notify user to water plants based on soil moisture levels
• Verification: Ensure sensors capture soil moisture data accurately
• Validation: Confirm plants are watered when soil moisture is below the threshold

Requirement Tracebility Matrix

Requirements Traceability Matrix

Requirement Dependency Matrix

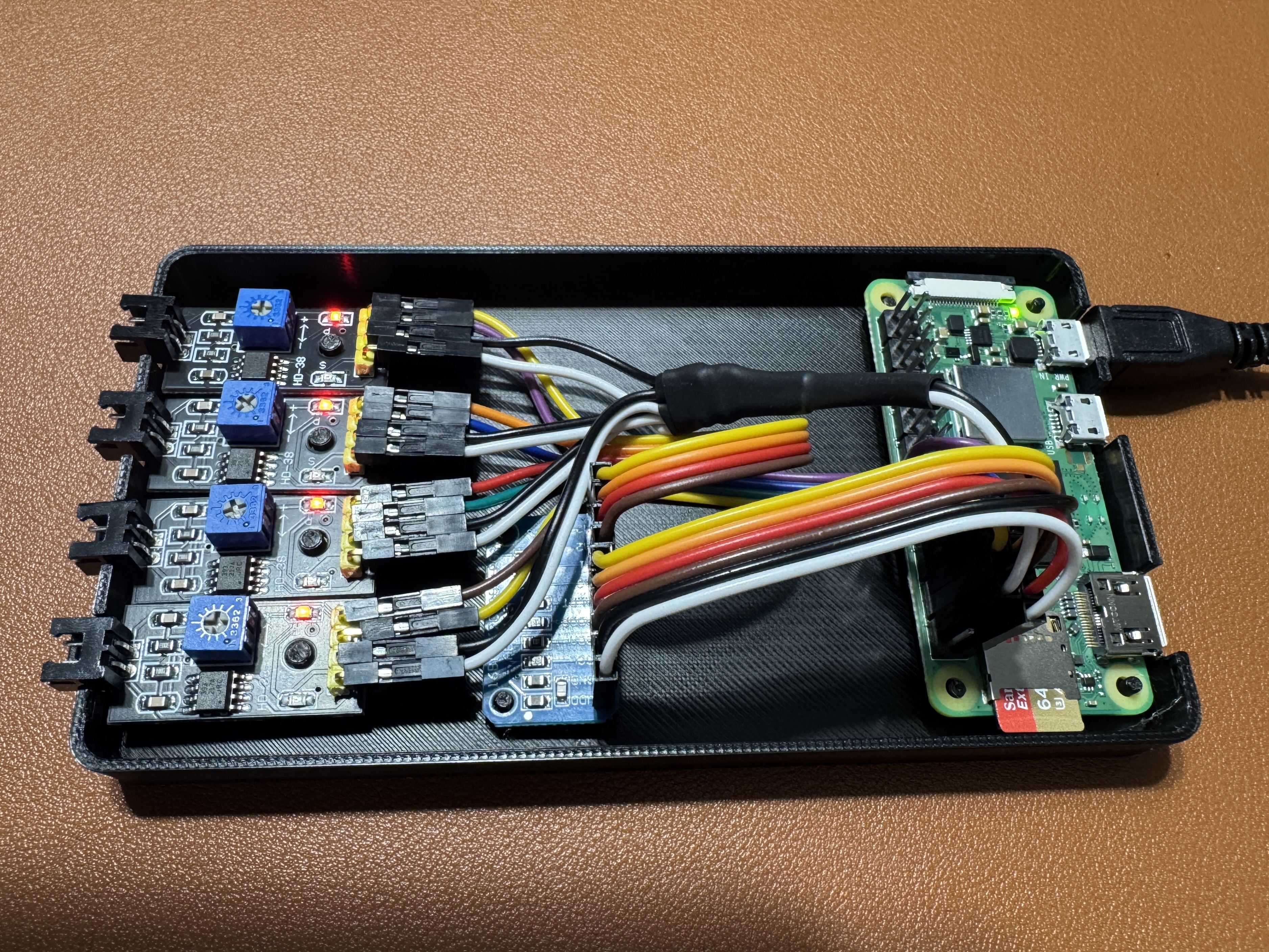

Logistics Team for IoT Sensor Setup

Requirements for the IoT System

Horizontal Tickets

• Ticket #LT-001: Purchase Sensors
  • Task: Identify, source, and order soil moisture sensors
  • Dependencies: None
  • Due Date: Jan 30, 2025
  • Assignee: Logistics Team
• Ticket #LT-002: Order Raspberry Pi
  • Task: Source Raspberry Pi models suitable for integration
  • Dependencies: LT-001 (sensors)
  • Due Date: Jan 30, 2025
  • Assignee: Logistics Team

Horizontal Tickets

• Ticket #LT-003: Develop System Plan
  • Task: Plan the integration of sensors and Raspberry Pi into the watering system
  • Dependencies: LT-001, LT-002
  • Due Date: Feb 5, 2025
  • Assignee: Logistics Team

Requirements Dependency Matrix

Requirements Dependency Matrix

Project: Automated Plant Watering System

Requirement Traceability Matrix

Lab 1: Issue Creation and Review

• Create at least 5 issues (only client team can/edit create requirements and epics)
• Client team create one empty dependency and tracebility matrix
• Review all existing issues to ensure they are up-to-date and relevant, comment if not
• Review all existing issues and update the dependency and tracebility matrix
• Focus on creating user stories based on the requirements and epics
• Focus on creating tracebility tickets based on your tickets
• Use Slack for communication to collaborate and ask questions: Join Slack Workspace
• If you are not blocked, start with the implementation (eg logistics)
• Always keep your tickets up-to-date
• Due next Friday, Jan 31

Question?

What is the primary purpose of verification in software development?

• To ensure the product meets user needs
• To verify that the product is built according to specifications
• To test the product in real-world scenarios
• To evaluate the product's market fit

What does a Requirements Traceability Matrix (RTM) help with?

• To track the schedule of the project
• To track how requirements relate to other project artifacts
• To assign tasks to team members
• To calculate project costs

Which of the following best describes an Epic?

• A small unit of work that can be completed in a few days
• A large, high-level unit of work that encompasses several user stories
• A detailed test case
• A requirement defined by the client

What is the main purpose of verification and validation tickets?

• To assign specific tasks to developers
• To ensure that the system meets technical specifications and user needs
• To verify market demand for the system
• To track project expenses

What is the role of tasks in project management?

• They represent high-level goals
• They break down user stories into actionable work items
• They track customer feedback
• They estimate project timelines

Today: January 24, 2025

• Requirement and Standards
• Requirement and Automation
• Status Project
• Lab 1 and Homework 1

Requirement and Standards

Requirement and Standard Diagrams

Standard UML: Component Diagram

• Represents system components and their relationships
• Shows high-level architecture
• Useful for modular design and dependencies

                    +----------------+        +-----------------+
                    |    Component   | ------ |   Component 2   |
                    +----------------+        +-----------------+


Standard UML: Entity Relationship Diagram

• Shows entities and their relationships
• Highlights data structure and constraints
• Commonly used in database design

                    +------------+         +------------+
                    |   Entity   | ------- |  Entity 2  |
                    +------------+         +------------+

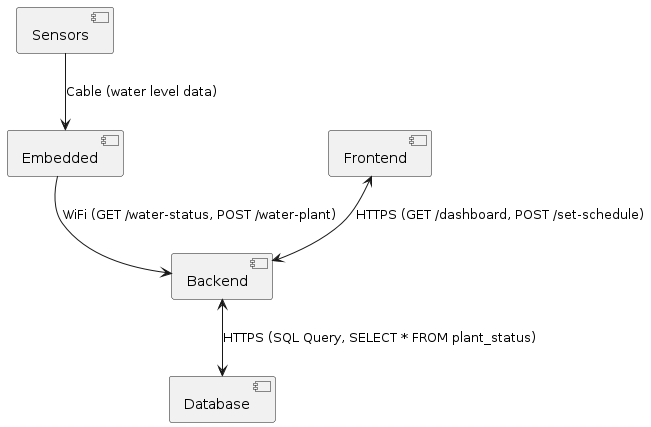

PlantUML: Component Diagram

                  @startuml
                    [Component 1] --> [Component 2]
                  @enduml


PlantUML: Entity Relationship Diagram

                  @startuml
                    entity "Entity" {
                      +ID: int
                      +Name: string
                    }
                    entity "Entity2" {
                      +ID: int
                      +Details: string
                    }
                    "Entity" -- "Entity2"
                  @enduml


PlantUML Editor

Requirement and Standard Communication

Standard Communication Using Slack

• Use public channels for specific topics
• Keep messages clear and concise
• Use threads for organized conversations
• Set availability status

Public Channel Naming Conventions

• [team]-[topic] format
• [logistics]-wifi-access

Special Use Case Channels

• #all-plant-watering-system for important updates

Slack Communication Standards

• Use @mentions carefully
• Set Slack reminders
• Pin important messages
• Use threads to keep channels organized

Example Public Channels for Teams

• [team-design-ui]-sprint
• [team-architecture]-tech-stack
• [team-embedded]-sensor-data
• [team-frontend]-status
• [team-backend]-api

Adding Team to Profile Name

• Include your team name in your Slack profile
• Format: [name] ([team])
• Example: Dr. Berhe (Quality)
• Helps others quickly identify your role and team
• Improves cross-team communication and collaboration

Slack vs GitHub

• Slack is for **quick communication** and collaboration
• **GitHub** is the **single source of truth** for code, issues, and tasks
• Use Slack for Reviewions, but always refer to GitHub for the most accurate data
• Ensure your code, issues, and progress are tracked directly in GitHub

Slack Task

• Please create one team channel per team
• Please add your team to your handle

Requirement and Automation

GitHub Automation Overview

• Automate repetitive tasks like issue creation, CI/CD pipelines, etc
• Improve productivity and consistency
• Use GitHub Actions to automate workflows

Automating Issue Creation

• Automate issue creation based on events like weekly schedules
• Use workflows to trigger issue creation
• Example: Weekly sprint demo issues

Setting Up GitHub Actions

• Create a workflow file: .github/workflows/automation.yml
• Define the event triggers (e.g., schedule, push)
• Configure actions to automate tasks like issue creation

                  name: Create Weekly Issue
                  on:
                    schedule:
                      - cron: '0 0 * * 5'  # Every Friday
                  jobs:
                    create-issue:
                    ...


Slack Integration with GitHub Automation

• Receive GitHub notifications directly in Slack
• Use GitHub's Slack integration to get updates on pull requests, issues, etc
• Automate Slack messages for new issues, commits, and deployments
• Set up GitHub Actions to send custom messages to specific Slack channels

Benefits of GitHub Automation

• Consistency: Automate repetitive tasks
• Efficiency: Free up time for more important tasks
• Collaboration: Keep everyone aligned with automated workflows
• Automation is a Type of Standardization

Automation Task (1/2)

• Please review which tasks can be automated in your team

Automation Task (2/2)

• Please create one task for each automation recommendation

Today: January 24, 2025

• Requirement and Standards ✓
• Requirement and Automation ✓
• Status Project
• Lab 1 and Homework 1

Status Project

Project Team Task

• Please introduce your team
• Assign roles and responsibilities
• Review team goals and deliverables
• Review team structure and technologies to use
• Ensure all team members have access to necessary tools
• Plan first sprint demo tasks for next Friday

Question?

Lab 1 (Jan/31) and Homework 1 (Jan/27)

Module 3
Team Structure for Industry 4.0 Applications

January 27, 2025

• Define team structure in Industry 4.0 systems
• Escalation paths along the V-model
• Explore communication tools for effective collaboration
• Review leadership approaches for managing teams

Conway's Law in Industry 4.0

Conway's Law: "Organizations design systems that mirror their team and communication structures."

• In Industry 4.0, team structures influence the design of interconnected systems
• Well-structured teams enable seamless integration of IoT, AI, and robotics
• Poor communication creates fragmented or inefficient systems

1. Cross-functional Teams?
2. Modular Teams?
3. Product-Oriented Teams?
4. Agile/Scrum Teams?
5. Hierarchical Teams?

Cross-functional Teams

Team members from different disciplines (hardware, software, data) collaborate in a single team to ensure all aspects of the project are covered from the start. This approach promotes continuous communication and immediate problem-solving


                        function waterPlants(plant) {
                          if (plant.needsWater) {
                            // QA ensured proper moisture checks
                            water(plant); // Dev implemented watering logic
                          }
                          // Product defined watering schedule
                          logWateringEvent(plant); // UX/UI tracked user interactions
                        }



Modular Teams

Separate teams are assigned to distinct components (e.g., one for embedded, one for frontend, and one for backend). Regular communication between teams ensures integration and smooth collaboration between modules

Product-Oriented Teams

Organize teams around specific features or outcomes (e.g., automated watering or data analytics). This structure ensures focus and clear ownership of specific deliverables, allowing for targeted development efforts


                      function waterPlants(plant) {
                        if (featureFlags.isWateringEnabled) {
                          if (plant.needsWater) {
                            water(plant); // Product team feature flag logic
                          }
                        } else {
                          // Feature is disabled, no action taken
                          console.log("Watering feature is off");
                        }
                        logWateringEvent(plant); // Product team tracking
                      }



Agile/Scrum Teams

Teams work in iterative cycles (sprints), with regular stand-ups and sprint reviews to ensure continuous feedback and collaboration across all parts of the project. This flexible approach allows teams to quickly adapt to changes and feedback


                          function waterPlants(plant) {
                            if (sprint3FeatureFlags.isWateringEnabled) {
                              if (plant.needsWater) {
                                water(plant); // Sprint 3: Dev tasks for watering logic
                              }
                            }
                            // Sprint 5: Log watering event
                            sprint5LogWateringEvent(plant); // Sprint 5: QA task to ensure logging
                          }



Hierarchical Teams

Create a project lead who oversees sub-teams for different components. The lead facilitates communication and integration between sub-teams, ensuring that the overall project vision is aligned with individual component developments


                          function waterPlants(plant) {
                            if (managerFeatureFlag.isWateringEnabled) {
                              if (plant.needsWater) {
                                water(plant); // Senior Dev writes watering logic
                              }
                            } else {
                              // Feature is turned off, no action taken
                              console.log("Watering feature is off");
                            }
                            // Tracking handled by Product Lead
                            logWateringEvent(plant);
                          }



Team Structure & Communication Impact on Software Errors

• Mariner 1 Spacecraft, 1962: Poor communication between engineering teams > Small coding error caused mission failure ($18.5 million)
• The Morris Worm, 1988: Lack of collaboration > Single developer's error led to widespread impact ($10 million)
• Pentium FDIV Bug, 1994: Slow internal communication > Mismanagement of response led to massive costs ($475 million)
• Heathrow Terminal 5, 2008: Poor integration between teams > Misaligned goals led to system failure ($1.4 billion)

Team Structures: Pros and Cons

Levels of Communication

• Code Level: Communication through code comments and documentation (e.g., GitHub)
• Ticket Level: Use of issue tracking tools for problem-solving (e.g., Jira, GitLab)
• Team Level: Team communication via chat tools (e.g., Slack, Microsoft Teams)
• Project Level: Project updates and reporting (e.g., Trello, Confluence)

What Do You Recommend?

• What team structures would you implement?
• How would you foster collaboration across different disciplines?
• What tools or methods would you use to improve communication flow?

January 27, 2025

• Define team structure in Industry 4.0 systems ✓
• Escalation paths along the V-model
• Explore communication tools for effective collaboration
• Review leadership approaches for managing teams

Communication and Risks

Team > Communication > ⚠ > Software > Product

• Misunderstanding
• Information overload
• Delays in decision-making
• Disagreement on priorities
• Assumptions and misinterpretation
• Lack of feedback

Team Communication and Escalations

Reduce Escalation - Norming

• Standard GitHub Issues: Clear issue templates for consistent tracking
• Standard UML Diagrams: Use of consistent symbols and notations
• Standard Slack Communication: Defined channels, response times, and format
• Standard Code Review Process: Use of guidelines and templates for reviews
• Standard Documentation Format: Consistent file structure, naming conventions
• Standard Code Workflow: Automate unit testing and release

Reduce Escalation - Performing

• Routine communication and team harmony
• Automate Code Workflow: Unit testing and release

January 27, 2025

• Define team structure in Industry 4.0 systems ✓
• Escalation paths along the V-model ✓
• Review leadership approaches for managing teams

January 29, 2025

• Team Building and Listening
• Refine Product Backlog

Homework 1 - Rank ChallengFes

Biggest Challenge: Lack of adequate skill sets

Backlog Refinement

• Review and prioritize issues
• Clarify requirements and scope
• Break down tasks for implementation

📌 GitHub Issues: Plant Water System

January 31, 2025

• Review Team Structure
• Refine Product Backlog
• Sprint #1 Demo

Module 4
Development Processes in Industry 4.0

February 3, 2025

• Practice Questions
• Scrum – An Incremental and Iterative Agile Framework
• V-Model – A Sequential Development Model
• Status Plant Watering Planning Project

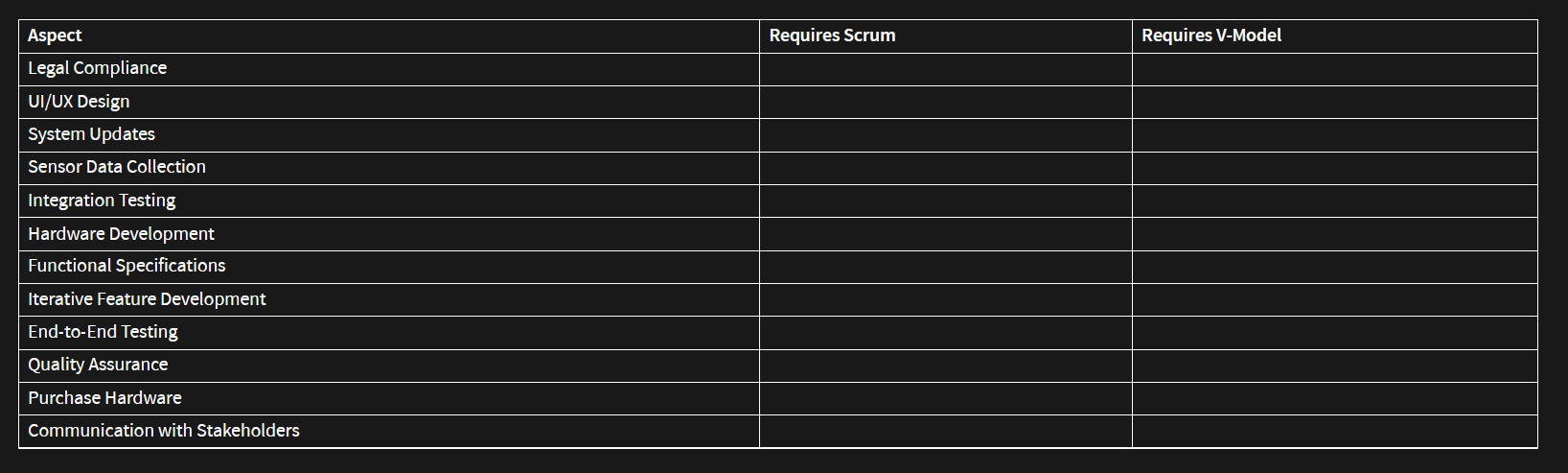

Scrum vs V-Model for IoT Plant Watering System

According to Conway’s Law, how do software systems tend to be structured?

• Based on the most efficient architecture, regardless of the organization
• According to the communication structure of the organization that designs them
• In a way that prioritizes user experience over internal constraints
• Completely independent of the organization’s structure

Answer B)

During the "Norming" stage in Tuckman’s team development model, how do teams establish stability?

• By continuing to challenge roles and authority
• Through the use of agreed-upon standards, guidelines, and processes
• By operating independently without requiring structured collaboration
• By completing tasks without a need for further team alignment

Answer B)

How are requirements structured in Software Engineering?

• Epics → User Stories → Tasks
• Detailed specifications first
• Tasks first, then epics
• Epics are not used

Answer A)

What generally comes first in Software Engineering?

• User Stories
• Implementation
• Requirements
• Epics
• Testing

Answer C)

What is a unique challenge for IoT/CPS software?

• High data security requirements
• Integration with legacy systems
• Power consumption optimization
• Large and distributed teams
• All of the above

Answer D)

February 3, 2025

• Practice Questions ✓
• Scrum – An Incremental and Iterative Agile Framework
• V-Model – A Sequential Development Model
• Status Plant Watering Planning Project

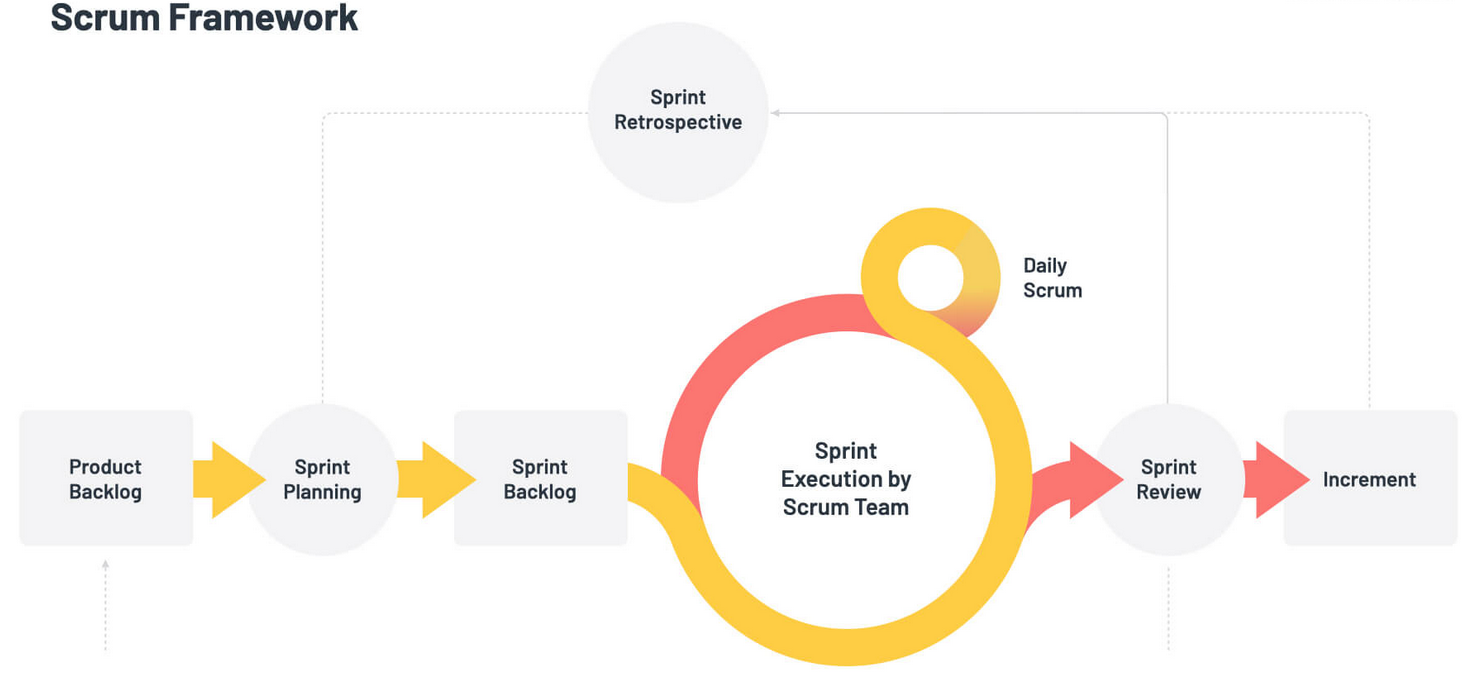

Scrum – An Incremental and Iterative Agile Framework

Agile Manifesto

• 2001: Agile Manifesto created by 17 developers in Snowbird, Utah
• 2001: 12 Agile principles introduced alongside the manifesto
• 2011: Minor updates focused on technical excellence and sustainable development

Agile Manifesto Principles

Sprint Planning

• Define the sprint goal
• Review and select items from the product backlog
• Break down selected items into smaller tasks
• Estimate effort and assign tasks

Daily Scrum

• Team members share what they did yesterday
• Discuss what they'll work on today
• Identify any blockers or issues

Sprint Review

• Present completed work to stakeholders
• Gather feedback from the team and stakeholders
• Update product backlog based on feedback

Sprint Retrospective

• Discuss what went well during the sprint
• Identify areas for improvement
• Make a plan to improve processes for the next sprint

Backlog Refinement

• Review and prioritize backlog items
• Break down large backlog items into smaller, manageable tasks
• Ensure backlog items are well-defined and ready for the next sprint

Product Owner

• Defines the product backlog
• Prioritizes backlog items based on business value
• Acts as a liaison between stakeholders and the development team
• Ensures the team works on the most valuable tasks first

Scrum Master

• Facilitates Scrum ceremonies (e.g., Daily Scrum, Sprint Review, Sprint Retrospective)
• Helps remove blockers and impediments for the team
• Ensures adherence to Scrum practices and principles
• Coaches the team on continuous improvement

Development Team

• Collaborates to complete work defined in the sprint backlog
• Self-organizes to determine how best to accomplish work
• Provides updates during the Daily Scrum
• Delivers high-quality, working increments of the product

Stakeholders

• Provide feedback on product increments
• Help prioritize features and functionality
• Ensure the product meets business objectives and customer needs

V-Model – A Sequential Development Model

Limitations of Agile Scrum

• Requires constant collaboration, which can be challenging in distributed teams
• Frequent changes in requirements can lead to scope creep if not managed well
• May be difficult to estimate time and costs due to iterative cycles
• Relies heavily on a skilled team; less experienced members may struggle
• Can face challenges with integration as the product evolves incrementally

Why V-Model for End-to-End Verification and Validation?

• The V-Model is more suited for projects with fixed requirements, such as regulatory or safety-critical systems
• Focuses on verification and validation, which might conflict with Agile's emphasis on flexibility and change
• Rigid planning process ensures consistency and structured testing but may lack room for frequent iteration
• Contradicts Agile principles by emphasizing upfront planning over adaptability to changing requirements
• Ideal for projects where exhaustive testing and validation against initial requirements are critical

Chronology of the V-Model

• 1980s: The V-Model concept emerges as a response to the limitations of the Waterfall Model
• 1990s: Formalization of the V-Model as a software development methodology for structured, sequential processes
• 2000s: Widespread adoption in safety-critical systems (e.g., aerospace, automotive). Focus on verification and validation
• 2010s: V-Model adapted for Agile environments, blending flexibility with structured testing
• 2020s: Continued relevance in industries requiring high levels of validation and regulation (e.g., healthcare, finance)

Stakeholders in the V-Model

• Project Manager: Ensures adherence to timelines, budget, and scope throughout the development process
• System Architect: Designs the overall system architecture and ensures integration between development and testing phases
• Development Team: Responsible for implementing system components and performing unit testing as per the V-Model process
• Quality Assurance (QA) Team: Focuses on verification and validation activities, ensuring that each stage meets quality standards
• End Users: Provide requirements and feedback, ensuring the system meets their needs during validation and testing phases
• Regulatory Bodies (for critical systems): Ensure compliance with regulatory standards, especially during validation and testing phases

Scrum vs V-Model for IoT Plant Watering System

Scrum vs V-Model for IoT Plant Watering System

💡Scrum is ideal for managing iterative and independent tasks in our IoT Plant Watering System project, such as feature development, sensor integration, and system design

💡The V-Model is more rigid, following a sequential flow where system critical requirements are verified and validated before proceeding, ensuring that the system meets all specifications and requirements before deployment

February 5, 2025

• Practice Questions
• Feature Branch Workflow
• Gitflow Workflow
• Forking Workflow

How do we align SWE and Code Process?

Comparing Git Workflows

• GitFlow
• Forking Workflow
• Feature Branch Workflow

GitFlow

GitFlow

GitFlow Workflow with Submodules

git submodule add  backend

cd backend

git checkout develop

git add

git commit -m "[ticket number] Implemented feature API v2"

git push origin develop

Merge Develop into Main for Release

git checkout main

git pull origin main

git merge develop

git push origin main

Release Workflow with Version Tag

git tag -a v1.0.0 -m "Release version 1.0.0"

git push origin v1.0.0

Mapping Git Workflow to Agile Workflow

• Develop Branch → User Stories + Tasks
• Main Branch → Epic or MVP (Set of User Stories)

GitFlow Workflow Benefits

• Clear separation of stable production code (`main`) and development work (`develop`)
• Supports continuous integration and proper versioning
• Helps manage releases and hotfixes efficiently

GitFlow

• Feature branches for isolated development
• Hotfix branches for urgent fixes
• Best for structured release cycles

Forking Workflow

Forking Workflow

Fork vs Branch

• Fork:
  • Creates a **copy** of the repository under your own GitHub account
  • Allows **full independence** from the original repository
  • Typically used for **open-source contributions**
  • Requires a **pull request (PR)** to merge changes into the original repository
• Branch:
  • Creates a **sub-branch** within the same repository
  • Shares the **same repository history** and settings as the original branch
  • Used for **working on features, bug fixes, etc.** in the same codebase
  • Can be merged back directly into the main branch without a PR (if within the same repository)

Forking Workflow

• Pull requests for controlled integration
• Great for open-source and external collaboration
• Main repo remains clean and stable

Forking Workflow with Submodules

git submodule add  backend

cd backend

git clone

cd

git checkout develop

git add

git commit -m "[ticket number] Implemented feature API v2"

git push origin develop

Pull Request (PR) to the Main Repository

git checkout develop

git pull origin develop

git merge upstream/develop

git push origin develop

Merge Pull Request and Tag Release Version

git checkout main

git pull origin main

git merge develop

git push origin main

git tag -a v1.0.0 -m "Release version 1.0.0"

git push origin v1.0.0

Mapping Forking Workflow to Agile Workflow

• Forked Repository's Develop Branch → User Stories + Tasks
• Main Repository's Develop Branch → Integration of multiple User Stories
• Main Branch → Epic or MVP (Set of User Stories)

Forking Workflow Benefits

• Facilitates collaboration across multiple contributors
• Ensures contributors don’t have direct access to the main repository
• Clear separation between contributors' work and the main codebase

Feature Branch Workflow

Feature Branch Workflow

Feature Branch Workflow with Git Submodules

git submodule add  backend

cd backend

git checkout feature-api-v2

git add

git commit -m "[ticket number] Implemented feature API v2"

git push origin feature-api-v2

Feature Branch Workflow with Git Submodules

git checkout develop

git pull origin develop

git merge feature-api-v2

git push origin develop

Feature Branch Workflow with Git Submodules

git tag -a v1.0.0 -m "Release version 1.0.0"

git push origin v1.0.0

git checkout develop

git pull origin develop

git merge main

git push origin main

Mapping Git Workflow to Agile Workflow

• Feature Branch → User Story + Tasks
• Main Branch → Epic or MVP (Set of User Stories)

Feature Branch Workflow

• Frequent merges to the develop branch
• Encourages continuous integration
• Good for agile teams and rapid iteration
• Supports enable and disable of features flags

Question?

Mapping V-Model & Scrum to Git Workflows

Proposal: One Repository

git init main-repo

git submodule add  embedded

git submodule add  backend

git submodule add  frontend

git add

git commit -m "Added submodules"

git push origin main

What do you recommend?

Repository

Backlog Grooming

Sprint Planning

Sprint Retrospective

Please prepare sprint #2 demo slides for Friday

Team Project Part 1

Question?

• What is the primary purpose of GitFlow in version control?
• What does the "develop" branch represent in GitFlow?
• When should a release branch be created in GitFlow?

• Which GitFlow branch is used for hotfixes?
• What is the purpose of the "main" branch in GitFlow?
• What happens when a feature branch is merged in GitFlow?

• What is the main benefit of the V-Model over the Waterfall model?
• In the V-Model, which phase corresponds to Unit Testing?
• What is the primary focus of the Validation phase in the V-Model?

• What is the role of the Scrum Master in Scrum?
• Which Scrum event is designed to review and adapt the sprint?
• What is the purpose of the Product Backlog in Scrum?

• How does GitFlow integrate with Scrum's iterative development process?
• What is the relationship between GitFlow's release branch and Scrum's sprint?
• When should feature branches be merged in a Scrum + GitFlow workflow?

February 7, 2025

• Development Processes in Industry 4.0
• Course Project - Feature Branch Workflow
• Course Project - Ticket / Workflow Integration/Automation
• Course Project - Sprint #2 Demo
• Practice Questions

Development Processes in Industry 4.0

Development Processes in Industry 4.0

Development Processes in Industry 4.0

February 7, 2025

• Development Processes in Industry 4.0 ✓
• Course Project - Feature Branch Workflow
• Course Project - Ticket / Workflow Integration/Automation
• Course Project - Sprint #2 Demo
• Practice Questions

Feature Branch Workflow

Course Project - Feature Branch Workflow

• Create feature branch for each user story
• Avoid feature branch for epics or tasks
• Feature branch must start with "feature-ticket-"
• Push to main branch through pull request review

Step 1

Please start visual studio

Step 2

                                git clone https://github.com/SE4CPS/PlantWaterSystem.git


Step 3

                                git checkout -b feature-ticket-123-add-refresh-button


Step 4

                                git commit -m "Added flower data refresh functionality"


Step 5

                                git push origin feature-ticket-123-add-refresh-button"


Step 6

February 7, 2025

• Development Processes in Industry 4.0 ✓
• Course Project - Feature Branch Workflow ✓
• Course Project - Ticket / Workflow Integration/Automation
• Course Project - Sprint #2 Demo
• Practice Questions

Course Project - Ticket / Workflow Integrating

Performing through automated ticket closing

Git Commit Close Ticket Example

                                git commit -m "Closes #123: Added flower data refresh functionality"



Git Commit Close Ticket Example

                                git commit -m "Fixes #123: Added flower data refresh functionality"

                                git commit -m "Resolves #123: Added flower data refresh functionality"



Fixes vs. Resolves in GitHub Commits

• Fixes #123: Used when the commit directly addresses a bug or issue
  ➡️ The issue is automatically closed when merged
• Resolves #123: Used for improvements or non-bug-related improvements
  ➡️ The issue is closed when merged, but it implies a major resolution rather than just a bug fix

Module 5
Architectural Design for Industry 4.0 Applications

February 10, 2025

• Introduction to Software Architecture
• Architectural Styles and Patterns
• Quality Attributes in Software Architecture
• Software Architecture Design Process
• Case Study: Monolith vs. Microservices
• Practice Questions

What is Software Architecture?

Software architecture represents a shared understanding among developers of the system's design

What is Software Architecture?

The decisions you wish you could get right early in a project...

What is Software Architecture?

Architecture defines the application boundaries by specifying which components belong to the system and which are external.

What is Software Architecture?

• Modularity: Breaking the system into smaller, manageable components
• Separation of Concerns: Isolating functionalities to avoid interdependencies
• Scalability: Designing the system to accommodate growth in traffic or data volume
• Maintainability: Ensuring the system is easy to update and fix
• Performance: Optimizing for responsiveness and efficiency

What is Software Architecture?

• Programming Language: Choosing the language that fits system requirements (e.g., performance, scalability)
• Database: Deciding between SQL vs. NoSQL, and selecting the appropriate database system
• Framework: Selecting frameworks that align with system needs (e.g., web frameworks, microservices)
• Communication Protocols: Deciding between REST, gRPC, or WebSockets for inter-component communication
• Security: Choosing encryption methods and authentication strategies
• Cloud Infrastructure: Deciding whether to use on-premise or cloud-based services (e.g., AWS, Azure)
• Deployment Strategy: Deciding between monolithic or microservices-based deployment
• Caching Strategy: Selecting caching mechanisms to improve performance (e.g., Redis, Memcached)
• API Design: Defining the structure and style of APIs (e.g., RESTful, GraphQL)
• Component Structure (IoT Embedded): Deciding the architecture of hardware components, sensor interfaces, etc

Architectural Styles

• API-First: The API is designed first, guiding all system components and fostering system integration
• Feature Toggles: Enables feature management and experimentation without deploying new code
• Layered Architecture: Organizes software in layers: presentation, business, and data access, promoting easy system integration
• Microservices: Breaks the system into smaller, independent services that interact over APIs
• Event-Driven Architecture: The system reacts to events that trigger processes or communication
• Client-Server: Separates the client (user interface) and server (data processing/storage) to improve scalability and maintainability

API First - Foster System Integration

A RESTful API (Representational State Transfer) is a set of guidelines for building web services that interact over HTTP, using a stateless architecture and standard HTTP methods (GET, POST, PUT, DELETE) to perform operations

• Stateless: No client context is stored on the server between requests
• Uniform Interface: Consistent structure for requests and responses
• Client-Server: Separation of concerns, allowing independent evolution

• GET: Retrieve data from the server
• POST: Submit data to the server
• PUT: Update an existing resource
• DELETE: Remove a resource

In REST, resources are represented by URLs. These URLs should be descriptive, hierarchical, and correspond to the underlying data or object. Example: /users/{id} to access a specific user

Each request from the client to the server must contain all the information needed to understand and process the request. The server does not store any client context between requests

RESTful APIs commonly use JSON (JavaScript Object Notation) to exchange data, offering a lightweight and human-readable format for data transfer

RESTful APIs use standard HTTP status codes to indicate the success or failure of an API request. Example: 404 for "Not Found," 200 for "OK," 400 for "Bad Request."

RESTful APIs often use token-based authentication, such as OAuth or JWT (JSON Web Tokens), to ensure secure communication between clients and servers

RESTful APIs can improve performance through caching mechanisms like HTTP cache headers, which store responses to reduce redundant requests

• Use nouns for resource names (e.g., /users)
• Ensure consistency in naming conventions
• Limit the number of HTTP methods per resource
• Provide clear error messages and status codes

REST API Endpoints First

REST API Endpoints

                GET /api/flowers
                    Retrieves all flowers' watering status.


                GET /api/flowers/<flower_id>
                    Retrieves a specific flower's watering status by ID.


                PUT /api/flowers/<flower_id>
                    Updates the watering status of a specific flower by ID.



REST API Endpoints (Users)

                GET /api/users
                    Retrieves all users' data.


                GET /api/users/<user_id>
                    Retrieves a specific user's data by ID.


                PUT /api/users/<user_id>
                    Updates a specific user's data by ID.



Feature Toggles - Foster System Integration

Feature Toggles (often also referred to as Feature Flags) are a powerful technique that allows teams to modify system behavior without changing code. By enabling or disabling specific features, teams can control which functionality is available in a live environment without deploying new code. This technique enables easier A/B testing, gradual rollouts, and quick rollback in case of issues.

Feature Toggles

• Modify system behavior without code changes
• Enable/Disable features in production
• Facilitate A/B testing and feature rollouts
• Quickly rollback features if needed

Feature Toggles for Plant Watering System

Feature Toggles (also known as Feature Flags) allow us to modify system behavior without changing the code. In this example, we use feature toggles to control different features of the plant watering system.


                class FeatureToggles {
                    constructor() {
                        this.toggles = {
                            "automatic_watering": false,
                            "send_alerts": false,
                            "log_watering_activity": false
                        };
                    }




                    isEnabled(feature) {
                        return this.toggles[feature] || false;
                    }




                    enableFeature(feature) {
                        this.toggles[feature] = true;
                    }




                    disableFeature(feature) {
                        this.toggles[feature] = false;
                    }
                }




                const featureToggles = new FeatureToggles();
                if (featureToggles.isEnabled("automatic_watering")) {
                    console.log("Watering plants automatically...");
                } else {
                    console.log("Automatic watering is disabled.");
                }




                if (featureToggles.isEnabled("send_alerts")) {
                    console.log("Sending watering alerts...");
                } else {
                    console.log("Alert sending is disabled.");
                }



Why Feature Toggles are Important for IoT and CPS?

• Enable testing of features without affecting the entire system
• Quick rollback of features in case of failures or issues in real-time environments
• Control feature availability, enabling updates without requiring downtime
• Flexible features based on context or sensor data

How to Start with Feature Toggles

1. Identify which features need toggling based on their risk, complexity, and deployment requirements
2. Integrate a feature toggle management system into your codebase
3. Define clear naming conventions for feature toggles to keep track of different features and environments
4. Use a gradual rollout strategy, starting with a small group of users or devices before full deployment

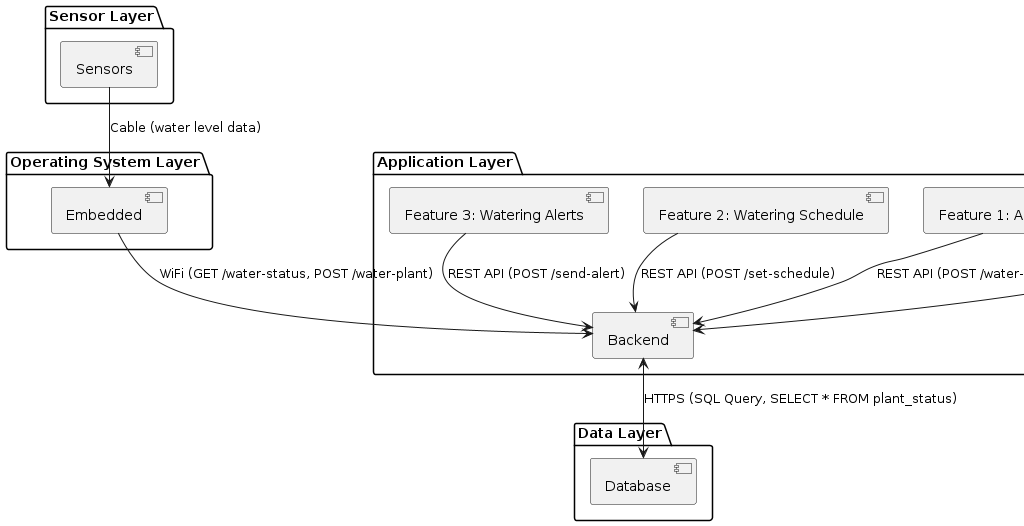

Layered Architecture - Sensor Data Quality First

Layered Architecture Overview

• Organizes systems into distinct layers, each with a specific responsibility
• Improves modularity and separation of concerns
• Common layers: Presentation, Application, Business Logic, Data Access, and Database
• Each layer communicates with the adjacent one, simplifying the design

Layered Architecture Overview

• Improve maintainability and scalability (of some layers)
• Clear division of responsibilities between layers
• Ease of testing by isolating components
• Flexibility for layer substitution (e.g., swapping the database layer)
• Limits supports parallel development by teams on different layers

Layered Architecture Structure

Layered Architecture and IoT Systems

• Separation of physical devices and logic improves flexibility
• Simplifies integration of different IoT components (e.g., sensors, databases)
• Reduces complexity in managing communication between devices and backend systems
• Ensures that the system can evolve (e.g., adding new features or devices)
• Improves debugging and fault isolation by focusing on one layer at a time

Quality Attributes in Software Architecture

Software Architecture Design Process

The Flower Care app integrates sensors to collect real-time data on soil moisture, temperature, and light. Users can monitor plant health, set watering schedules, and receive alerts. The app requires scalable, fault-tolerant architecture for handling growing data and user interactions. Key options include monolithic (simple, all-in-one), layered architecture (separation of concerns), microservices (independent services for scalability), and event-driven architecture (real-time, event-based processing). Which architecture is optimal for performance, scalability, and maintainability?

1. What is the main advantage of using microservices architecture?

• Option A: Improved performance
• Option B: Independent scaling of services
• Option C: Reduced complexity
• Option D: Easier to deploy

Correct Answer: Option B

2. Which architecture pattern focuses on the separation of concerns and layers?

• Option A: Microservices
• Option B: Layered architecture
• Option C: Event-driven architecture
• Option D: Client-server architecture

Correct Answer: Option B

3. In which architecture is the system organized into independent, loosely-coupled components that communicate via events?

• Option A: Microservices
• Option B: Event-driven architecture
• Option C: Layered architecture
• Option D: Monolithic architecture

Correct Answer: Option B

4. Which architectural style is best suited for applications that require high performance and direct client interaction?

• Option A: Monolithic
• Option B: Microservices
• Option C: Client-server
• Option D: Event-driven

Correct Answer: Option C

5. Which of the following is a key characteristic of a layered architecture?

• Option A: All layers share the same database
• Option B: No communication between layers
• Option C: Layering increases complexity
• Option D: Separation of concerns between layers

Correct Answer: Option D

February 12, 2025

• Data Architecture First
• Error-Resilient/Security Architecture First
• Practice Questions

Why prioritize Data Pipeline before Software Architecture?

• Data is the foundation of decision-making and AI models
• Software architecture depends on well-structured data flows
• Scalable data pipelines prevent downstream bottlenecks
• Ensuring high-quality data improves system reliability

How Data Pipeline Architecture improve scalability?

• Supports distributed storage and processing
• Enables real-time and batch data handling
• Reduces dependency on monolithic systems
• Allows independent scaling of data and compute layers

Why good data flow critical before software architecture?

• Clean, structured data prevents application inefficiencies
• Ensures smooth integration across multiple services
• Reduces rework caused by poor data management
• Provides a single source of truth for all applications

Data Pipeline

 Raw Sensor Data | Device
 +----+----------+------+---------+
 | id | sensor  | water_hydration |
 +----+----------+----------------+
 | 1  | SensorA | 45              |
 +----+----------+----------------+

 +----+----------+------+---------+
 | id | sensor  | water_hydration |
 +----+----------+----------------+
 | 2  | SensorB | 38              |
 +----+----------+----------------+

 +----+----------+------+---------+
 | id | sensor  | water_hydration |
 +----+----------+----------------+
 | 3  | SensorC | 40              |
 +----+----------+----------------+

 Data Lake
 +----+----------+-----------+
 | id | raw_data | timestamp |
 +----+----------+-----------+
 | 1  | {JSON}   | 12:01:30  |
 | 2  | {JSON}   | 12:02:10  |
 | 3  | {JSON}   | 12:02:10  |
 | 1  | {JSON}   | 09:08:10  |
 | 2  | {JSON}   | 11:10:10  |
 | 3  | {JSON}   | 01:06:10  |
 | 1  | {JSON}   | 04:05:10  |
 | 2  | {JSON}   | 12:04:10  |
 | 3  | {JSON}   | 01:06:10  |
 | 1  | {JSON}   | 04:05:10  |
 | 2  | {JSON}   | 12:04:10  |
 | 3  | {JSON}   | 01:06:10  |
 | 1  | {JSON}   | 04:05:10  |
 | 2  | {JSON}   | 12:04:10  |
 +----+----------+-----------+

 Data Warehouse
 +----+----------+--------------+
 | id | sensor  | avg_hydration |
 +----+----------+--------------+
 | 1  | SensorA | 46            |
 | 2  | SensorB | 39            |
 +----+----------+--------------+

 Dashboard
 +----------+------------------+
 | Sensor   | Avg Hydration (%)|
 +----------+------------------+
 | SensorA  | 46               |
 | SensorB  | 39               |
 +----------+------------------+

Database Pipeline

    Raw Sensor Data | SQLite

    Data Lake | MongoDB

    Data Warehouse | MySQL

    Dashboard | IndexedDB

Caching vs Persisting

    Sensor Cache | SQLite

    Lake Persisted | MongoDB

    Warehouse Cache | MySQL

    Dashboard Cache | IndexedDB

Full Loading

• Loads all data at once
• Higher initial load time
• Useful for smaller datasets or when all data is needed

Partial Loading

• Loads only a subset of data
• Faster initial load time
• Useful for large datasets or when only a part of data is required

Full Loading and/or Partial Loading

    Sensor Cache | SQLite

    Lake Persisted | MongoDB

    Warehouse Cache | MySQL

    Dashboard Cache | IndexedDB

Loading Triggers

Relevant NIST Publication

Error Handling in IoT Systems (Architecture Perspective)

• Decouple error handling from business logic using middleware layers
• Event-driven architecture for detecting errors in real-time
• Use of centralized logging services for error monitoring
• Fallback mechanisms for fault tolerance and service continuity

Error Logs and Business Logic Components

                Business Logic
                +------------------------+
                | Handle IoT device      |
                | interactions, data     |
                | processing, and        |
                | communication          |
                +------------------------+



                Error Logs
                +------------------------+
                | Logs errors from       |
                | Business Logic         |
                | component, including   |
                | device failure,        |
                | performance issues,    |
                | and system faults      |
                +------------------------+



Monitoring Infrastructure in IoT Systems (Architecture Perspective)

• Distributed monitoring across IoT devices via a central control plane
• Use of microservices for collecting and processing device health data
• Integration with cloud-based IoT platforms (e.g., AWS IoT, Azure IoT Hub)
• Real-time streaming analytics and alert systems for device performance

Diagnostics in IoT Systems (Architecture Perspective)

• Distributed diagnostics using edge devices for localized analysis
• Automated diagnosis with AI/ML models at the edge or cloud
• Centralized reporting and troubleshooting workflows
• Data-driven insights for root cause analysis of system failures

Over-the-Air (OTA) Updates in IoT Systems (Architecture Perspective)

• Modular firmware design for seamless OTA updates
• Integration of OTA update pipelines within CI/CD systems
• Secure transmission of updates with encryption and integrity checks
• Version control and rollback mechanisms for devices

Review Architecture Design Principles

1. Data Architecture First
2. Security and Privacy
3. Data Integrity
4. Feature Toggle
5. Monolithic Architecture
6. Layered Architecture

February 14, 2025

• Public vs. Private Endpoints in Software Architecture
• Public vs. Private Endpoints Sample Implementation
• Sprint Demo

Public vs. Private/Internal Endpoints in IoT Applications

                Public Endpoints
                +------------------------+
                | Expose data to         |
                | external clients or    |
                | third-party services   |
                | (e.g., weather,        |
                | monitoring systems)    |
                +------------------------+



                Private/Internal Endpoints
                +------------------------+
                | Handle sensitive data  |
                | (e.g., device control, |
                | authentication, and    |
                | configuration)         |
                | Restricted to          |
                | internal services and  |
                | devices                |
                +------------------------+



Plant Watering App - Public vs. Private/Internal Endpoints

                Public Endpoints
                +------------------------+
                | Provide external data  |
                | (e.g., weather forecast|
                | for plant hydration)   |
                | Accessible by external |
                | users or services (e.g.|
                | mobile app, monitoring)|
                +------------------------+



                Private/Internal Endpoints
                +------------------------+
                | Manage device control  |
                | (e.g., soil moisture   |
                | threshold, water valve |
                | activation)            |
                | Handle authentication  |
                | and device status      |
                +------------------------+



Requirements for Authentication

We are considering two endpoints for a sensor data retrieval system. Please propose the appropriate endpoint signatures:

Clone and Set Up i40 Repository

• Clone the repository: git clone https://github.com/SE4CPS/i40.git
• Navigate into the project folder: cd i40/architecture
• Install dependencies: npm install
• Start the application: npm start

Sample URL Queries

• User Authentication:
  GET http://localhost:3000/auth/user?username=user1&password=password1
  Response: {"message": "User user1 authenticated"}
• Sensor Authentication:
  GET http://localhost:3000/auth/sensor?uuid=UUID-123
  Response: {"message": "Sensor UUID-123 authenticated"}

Sprint #3 Backlog Grooming

Sprint #3 Planning

Sprint Retrospective

Module 6
Legal Constraints for Industry 4.0 Applications

February 19, 2025

• Introduction to Legal Requirements in IoT
• IoT Safety Regulations
• Privacy Laws & IoT
• RACI Chart for Roles in Legal Compliance
• Hardware & Software & Data Quality Compliance

Why Legal Requirements in Software for IoT?

...to ensure user protection

...how?

...through privacy and safety requirements

Legal Requirements to Protect Users: Privacy Requirements

• GDPR (2018): Requires consent for data collection in the EU
• CCPA (2018): Grants rights to access, delete, and opt-out of data sale in California
• HIPAA (1996): Protects health information, requiring consent for location data sharing in the U.S
• California Consumer Privacy Act (2020): Mandates clear privacy policies in California
• Accountability Regulations (2018): Requires data breach notification within 72 hours in the U.S

privacy requirements impact where the data must be stored

Legal Requirements by Region

• CCPA: User rights to location data in California
• HIPAA: Regulates location data in healthcare, ensuring patient privacy
• GDPR: Strict rules on location data in the EU

Legal Requirements to Protect Users: Safety Requirements

• ISO 26262 (2011): Legal requirement for functional safety in automotive systems
• NHTSA Guidelines (2016): Regulations for testing and reporting on autonomous vehicle safety
• Incident Reporting Regulations (2017): Obligations for timely reporting of accidents and failures
• Liability Regulations (2019): Definitions of liability in accidents involving autonomous vehicles
• IoT Cybersecurity Improvement Act (2020): Security requirements for federal IoT devices
• ISO/IEC 27001 (2013): Framework for managing information security risks

safety requirements impact where the product can run

Plant Watering System Epics

legal requirements impact how the product is developed

legal requirements do not prevent software, hardware, or data errors

...what's next?

RACI Chart

Project managers are often legally accountable

How managers Protect themselves with the help of the V-Model?

• Verify Complete GitHub Issues (epic, user story, etc.)
• Ensure Traceability of Verification and Validation
• Conduct Regular Legal Risk Assessments
• Inform themselves about the product during sprint (regular) demo
• Maintain Comprehensive Documentation
• Establish Clear Roles and Responsibilities
• Set clear standards for software, hardware, and data quality
• Use Version Control for All Artifacts, PL
• Perform Thorough Test Reviews at Each Stage
• Adhere to Relevant Legal and Compliance Standards

RACI Chart by Year

• 1950s: Development of responsibility matrices in project management
• 1960s: Adoption of RACI in project planning
• 1970s: Formalization of RACI for role clarity
• 1980s: Use in large projects, emphasizing compliance and legal roles
• 1990s: Integration into project management frameworks with legal accountability
• 2000s: Widespread adoption, focusing on legal compliance in teams
• 2010s: Digital tools improve role assignment and legal tracking

NB: Waterfall, Scrum, Kanban, do not have these mechanisms...

How?

Example on Hardware & Software & Data Quality Compliance

Hardware Quality

Improve Hardware Quality

• Redundancy: Use multiple sensors (e.g., GPS) for accurate data
• Calibration: Regular calibration of sensors for reliable readings
• Quality Materials: Employ durable components to reduce failure rates
• Environmental Protection: Ensure devices are protected from elements

Software Quality

Software Quality: Input Validation

                function validateTemperature(temp) {
                    if (typeof temp !== "number" || temp < 0 || temp > 100) {
                        throw new Error("Invalid temperature value");
                    }
                    return temp;
                }


Software Quality: Error Handling

                try {
                    let data = fetchData();
                } catch (error) {
                    console.error("Data fetch failed:", error.message);
                }


Software Quality: Secure Coding

                function hashPassword(password) {
                    return crypto.createHash("sha256").update(password).digest("hex");
                }


Software Quality: Avoiding Magic Numbers

                const MAX_TEMP = 100;
                if (sensorValue > MAX_TEMP) {
                    alert("Temperature too high!");
                }


Software Quality: Code Readability

                function calculateWaterNeed(plantType) {
                    const needs = { cactus: 1, fern: 5, rose: 3 };
                    return needs[plantType] || 2;
                }


Software Quality: Defensive Programming

                function getSensorData(sensor) {
                    return sensor?.read() ?? "No Data Available";
                }


Software Quality: Modularization

                function fetchData() {
                    return api.get("/data");
                }

                function processData(data) {
                    return data.map(cleanData);
                }


Software Quality: Logging

                function logEvent(event) {
                    console.log(`[${new Date().toISOString()}] Event: ${event}`);
                }


Software Quality: Testing

• Unit tests ensure individual functions work correctly
• Integration tests validate multiple components together
• Mock data helps simulate real-world scenarios

Software Quality: Documentation

• Use meaningful comments for complex logic
• Follow consistent naming conventions
• Provide API documentation for external integrations

Data Quality

                {
                    "data": [
                        {
                            "sensorId": "sensor_003",
                            "timestamp": "2025-02-19T10:10:00Z",
                            "moistureLevel": -5,
                            "temperature": null
                        }
                    ]
                }


                {
                    "data": [
                        {
                            "sensorId": "sensor_001",
                            "timestampInstallation": "2024-05-19T10:00:00Z",
                            "timestampLastValue": "2025-02-19T10:00:00Z",
                            "moistureLevel": 45,
                            "temperature": 22.5,
                            "status": "active"
                        }
                    ]
                }


                {
                    "data": [
                        {
                            "sensorId": "sensor_001",
                            "location": "Benerd 208",
                            "timestampInstallation": "2024-05-19T10:00:00Z",
                            "timestampLastValue": "2025-02-19T10:00:00Z",
                            "moistureLevel": 45,
                            "temperature": 22.5,
                            "batteryLevel": 85,
                            "signalStrength": -65,
                            "calibrationDate": "2025-01-10T12:00:00Z",
                            "status": "active",
                            "alerts": []
                        }
                    ]
                }


Improving Data Quality with Redundancy

• Redundancy: Using multiple sensors to cross-verify data
• Sensor Fusion: Combining data from different sensors for accuracy
• Error Detection: Implementing algorithms to identify and correct data discrepancies

GPS Sensor Redundancy in Autonomous Vehicles

• Most autonomous vehicles use about 5 GPS sensors
• Each sensor provides location data to ensure reliability
• Redundant GPS data helps maintain accuracy and safety in navigation

Additional Methods to Improve Data Quality

• Regular Calibration: Ensuring sensors are calibrated for precision
• Data Validation: Implementing checks to verify data integrity
• Real-time Monitoring: Continuously assessing sensor performance and data quality

Legally Accountable Roles (Management)

Define internal standards

Improving Quality in IoT

• Quality through standard process definition
• Quality through standard test requirement definition
• Quality through automated compliance checks
• Quality through continuous monitoring and auditing
• Quality through regulatory and legal alignment

Example 1: Upload Unobfuscated Software to all Regions

Example 2: Cautious with test hardware during testing

Example 3: Git push code without pull request

Example 4: Bicycle crash alert algorithms wrong in production

Example 5: GDPR pushed project timeline by a year

February 21, 2025

• Legal impact of Software Updates in IoT
• Legal impact of Software Quality in IoT
• Spring Demo #4

Fuel Injection Software Update

• Manufacturer: Honda
• Issue: Faulty fuel injection software may cause engine stalling
• Affected Vehicles: ~300,000 Honda & Acura models
• Solution: Free software update at dealerships
• More Info

Recalling Certain 2025 R1S and R1T Vehicles for Headlight Issue

• Manufacturer: Rivian
• Issue: Headlight software malfunction
• Affected Vehicles: 2025 R1S & R1T models
• Solution: Over-the-air software update
• More Info

Legal & Safety Impact of Software Updates

• Liability: Manufacturers are accountable if software defects cause accidents
• Regulatory Compliance: Agencies (e.g., NHTSA, EU Commission) enforce mandatory safety updates
• Consumer Protection: Owners have rights to timely fixes and transparency in recalls
• Safety Risks: Delayed or faulty updates may lead to system failures, increasing accident risks
• Data & Privacy: Updates must comply with laws (e.g., GDPR, CCPA) to protect user data
• Case Studies: Past recalls highlight the legal duty to ensure software reliability

Prioritizing Software Updates

• Legal, Safety & Privacy Impact Address compliance, safety risks, and data protection first
• Critical Security Patches Fix vulnerabilities that could be exploited
• Performance & Stability Optimize functionality to prevent failures
• User Experience Improve usability while maintaining reliability
• Feature Improvement Introduce new capabilities without compromising existing systems
• Testing & Deployment Ensure updates are validated before release

Security & Breaking Updates (Legal Impact)

Monitor Security Updates via GitHub

• Automated Monitoring: Use GitHub's Dependabot to track vulnerabilities in dependencies
• Real-Time Alerts: Receive notifications for security updates and fixes
• Seamless Integration: Automatically create pull requests for updates
• Customizable Settings: Configure update frequency and target versions
• Improved Security: Maintain a secure codebase by promptly addressing issues
• More Info

Monitor Breaking Updates via GitHub

• Patch Updates: Small fixes for bugs and security vulnerabilities (e.g., `2.0.1` to `2.0.2`)
• Minor Updates: Add functionality in a backwards-compatible manner (e.g., `2.0.0` to `2.1.0`)
• Major Updates: Introduce significant changes or breaking features (e.g., `2.x.x` to `3.0.0`)
• Legal Considerations: Ensure updates comply with legal standards and user agreements

Managing Breaking Updates with Renovate

• Automated Dependency Updates: Renovate helps automate the process of updating dependencies, including breaking updates
• Version Control: Monitor major version changes to assess impact on your codebase
• Customizable Update Configurations: Define rules for handling breaking updates and set schedules for updates
• Pull Request Generation: Automatically creates pull requests for updates, allowing for review and testing before merging
• Visibility: Keep track of changes and maintain a history of updates to manage legal implications
• More Info

RACI Chart for Monitoring Critical Software Updates

Management Must Prioritize Monitoring and Maintaining Software Updates

Continuous Monitoring Post-Release

• Third-Party Updates: Operating systems, browsers, and libraries are frequently updated by external providers
• Compatibility Issues: Ensure your software remains compatible with the latest versions
• Security Risks: Monitor for vulnerabilities introduced by third-party updates
• Performance Optimization: Address any performance impacts caused by external changes
• User Experience: Maintain a seamless experience for users across different platforms

Code Quality and Legal Impact Checklist

• Static Code Checking
• Dynamic Code Checking
• Peer Review Critical Steps
• Roundtable Review
• Automated Testing for Security Vulnerabilities
• Code Coverage Analysis
• Compliance with Coding Standards and Guidelines
• Documentation Review for Legal Requirements
• Continuous Integration and Deployment Practices
• Version Control for Change Tracking
• Regular Training on Legal and Compliance Issues

Legal Compliance Code Review

                class PlantWateringSystem:
                    def __init__(self):
                        self.user_data = []  # Stores user data without consent
                        self.water_count = 0  # Tracks number of waterings per day

                    def collect_user_data(self, user_name, email):
                        self.user_data.append({'name': user_name, 'email': email})  # No consent

                    def water_plants(self, amount):
                        self.water_count += 1
                        print(f"Watered plants with {amount} liters.")


Legal Compliance Code Review

                class PlantWateringSystem:
                    def __init__(self):
                        self.user_data = []  # Stores user data without consent
                        self.sensors = {'sensor1': 0, 'sensor2': 0}  # Different sensors

                    def update_sensor_reading(self, sensor, reading):
                        self.sensors[sensor] = reading


Legal Compliance Code Review

                class PlantWateringSystem:
                    def __init__(self):
                        self.user_data = []  # Stores user data without consent
                        self.last_watered_days = 0  # Days since last watering

                    def check_watering_interval(self):
                        # self.last_watered_days


Module 7
Testing, Verification, Validation in Industry 4.0

February 24, 2025

• Testing, Verification, and Validation
• Test Sequences/Levels in the V-Model
• Test-Driven Development in the V-Model
• Test Concept: Arrange, Act, Assert
• Testing Software Frameworks

Testing, Verification, and Validation

Testing

Testing, Verification, and Validation

Test Levels

• Level 1: Unit Testing – Tests individual functions or modules in isolation
• Level 2: Component Testing – Verifies the integration of multiple units within a subsystem
• Level 3: Integration Testing – Ensures correct communication between components
• Level 4: System Testing – Evaluates the complete system for functional/non-functional requirements
• Level 5: Acceptance Testing – Confirms that the system meets client/user expectations

Test Cases

• Level 1: Unit Testing – Function outputs and edge cases
• Level 2: Component Testing – Module interactions and API responses
• Level 3: Integration Testing – Service communication and database checks.
• Level 4: System Testing – Full workflow, UI, and performance
• Level 5: Acceptance Testing – User scenarios and compliance

Test Types

• Unit Testing – Tests individual components for correctness
• Component Testing – Validates interactions between integrated units
• Integration Testing – Ensures combined components work together
• System Testing – Evaluates the complete system's compliance with requirements
• Acceptance Testing – Confirms the system meets user expectations
• Regression Testing – Ensures new changes don’t break existing functionality

RACI Matrix

Verification

Verification - Are we building the product right?

• Focuses on prevention of defects
• Ensures the product is built correctly according to design specifications
• Involves activities such as reviews, inspections, and static analysis

RACI Chart for Verification

Validation

Validation - Are we building the right product?

• Focuses on identifying defects in the final product
• Ensures the product fulfills business requirements
• Involves activities such as user acceptance testing and field testing

RACI Chart for Validation

Testing Sequence Options

Test Case → Implementation → Testing

Implementation → Test Case → Testing

Why TDD and V-Model Match Well

• Quality Assurance: TDD ensures high-quality code through continuous testing
• Validation Focus: V-Model emphasizes validation at each development phase
• Early Feedback: TDD provides immediate feedback, aligning with V-Model's verification approach

AAA Testing Principle

• Arrange: Set up the necessary conditions and inputs for the test
• Act: Execute the functionality being tested
• Assert: Verify that the outcome matches the expected result

AAA Testing Principle

                    +----------------+      +----------------+      +----------------+
                    |     Input      | ---->|    Function    | ---->|    Output      |
                    +----------------+      +----------------+      +----------------+

                    +----------------+      +----------------+      +----------------+
                    |   Arrange      | ---->|      Act       |----> |    Assert      |
                    +----------------+      +----------------+      +----------------+


JavaScript Example

    // Arrange: Input data
    const a = 2;
    const b = 3;
    // Act: Function to sum two numbers
    function sum(a, b) {
        return a + b;
    }
    // Assert: Test using console.assert
    console.assert(sum(a, b) === 5, "Test failed: Expected 5"); // Output: No output if the test passes


Jest Example

    // Arrange: Input data
    const a = 2;
    const b = 3;
    // Act: Function to sum two numbers
    function sum(a, b) {
        return a + b;
    }
    // Assert: Test using Jest
    test('sum adds numbers', () => {
        expect(sum(a, b)).toBe(5); // Output: Passes if the sum is correct
    });

Component Testing Example

        // Arrange
        const soilMoistureLevel = 20; // Moisture level in percentage
        const expectedOutput = "Watering required"; // Expected output

        // Act
        const result = checkWaterNeed(soilMoistureLevel); // Function to test

        // Assert
        console.assert(result === expectedOutput, "Test failed: Expected 'Watering required'");


Integration Testing Example

        // Arrange
        const plant = { type: "Cactus", soilMoisture: 15 };
        const expectedMessage = "Cactus needs watering";

        // Act
        const result = waterPlant(plant); // Function that integrates soil moisture check and watering

        // Assert
        console.assert(result === expectedMessage, "Test failed: Expected 'Cactus needs watering'");


System Testing Example

        // Arrange
        const plantData = [{ type: "Fern", soilMoisture: 30 }, { type: "Cactus", soilMoisture: 10 }];
        const expectedStatus = "All plants checkeWatering required for 1 plant.";

        // Act
        const result = manageWateringSystem(plantData); // Function to manage watering for all plants

        // Assert
        console.assert(result === expectedStatus, "Test failed: Expected 'All plants checked.'");


Common JavaScript Testing Frameworks

• console.assert: Simple built-in assertions --> Documentation
• Jest: Comprehensive testing framework --> Documentation
• Mocha: Flexible framework with multiple assertion libraries --> Documentation
• Chai: Assertion library for BDD and TDD --> Documentation
• Jasmine: BDD framework with clean syntax --> Documentation
• QUnit: Ideal for testing jQuery projects --> Documentation

Check Water Level

    function checkWaterLevel(current, required) {
        console.assert(current >= required,
                        `Not enough water! Required: ${required}L, Current: ${current}L`);
    }

    checkWaterLevel(5, 3); // Passes
    checkWaterLevel(1, 3); // Fails


Installing and Testing with Jest

    # Install Jest
    npm install --save-dev jest

    # Create a test file (e.g., sum.test.js)
    function sum(a, b) {
        return a + b;
    }

    test('adds 1 + 2 to equal 3', () => {
        expect(sum(1, 2)).toBe(3);
    });

    # Run the tests
    npx jest


February 26, 2025

• Testing, Verification, and Validation
• API Testing
• API Documentation
• Client Testing

API Testing

• Validates API functionality, performance, and security
• Ensures API responses match expected outputs
• Involves request-response validation
• Common tools: Postman, JMeter, REST Assured

Types of API Testing

• Functional Testing: Ensures API works as intended
• Performance Testing: Measures API speed and reliability
• Security Testing: Identifies vulnerabilities
• Integration Testing: Ensures API interacts correctly with other systems

API Testing Steps

• Arrange: Define test inputs and expected responses
• Act: Send API requests and capture responses
• Assert: Compare actual vs. expected results

API Testing Tools

• Postman: Manual and automated testing
• JMeter: Performance and load testing
• REST Assured: Java-based API testing
• SoapUI: Functional and security testing

API Testing in the V-Model

• Occurs during integration and system testing phases
• Supports Test-Driven Development (TDD)
• Helps validate API specifications early
• Ensures seamless data exchange between system components

Most Interfaces Are REST Endpoints

• REST (Representational State Transfer) is the dominant API style
• Uses HTTP methods: GET, POST, PUT, DELETE
• Data is exchanged in JSON
• Lightweight, scalable, and stateless architecture
• Common in web services, mobile apps, and IoT systems

Interfaces and Components

 +-------------+     REST API    +--------------+     Database Queries   +-------------+
 |  Frontend   |  <----------->  |  Backend     |  <------------------>  |  Database   |
 | (Web/Mobile)|                 | (API, Logic) |                        | (SQL/NoSQL) |
 +-------------+                 +--------------+                        +-------------+
                                        ^
                                        |
                                    REST API
                                        |
                                        |
                                +-------------+
                                |  IoT Device |
                                | (Sensors)   |
                                +-------------+


HTTP Methods and Their Purpose

HTTP Status Codes for IoT Applications

HTTP REST API Request Parameters for Plant Watering IoT Application

API Testing with Postman

• Postman: A powerful tool for API development and testing.
  Access Postman
• Open-Meteo API: Provides weather forecasts for various locations.
  Open-Meteo API Documentation

Example 1: Successful Request

                POST https://sproutly.com/plants/watering
                Content-Type: application/json
                {
                  "plantId": 123,
                  "waterAmount": "500ml"
                }


Response:

                HTTP/1.1 200 OK
                Content-Type: application/json
                {
                  "status": "success",
                  "message": "Plant watered successfully."
                }


Example 2: Error Request

                POST https://sproutly.com/plants/watering
                Content-Type: application/json
                {
                  "plantId": 999,  // Non-existent plant ID
                  "waterAmount": "500ml"
                }


Response:

                HTTP/1.1 404 Not Found


Standard Error Response

    {
        "error": {
            "code": 404,
            "message": "Plant not found.",
            "details": "No plant found with the ID 12345.",
            "suggestion": "Please check the plant ID and try again."
        }
    }

• Code: HTTP status code (404)
• Message: General description of the error
• Details: Specific information about what went wrong
• Suggestion: Helpful advice on how to resolve the issue

Standard Customer Error Response

    {
        "error": {
            "code": 404,
            "message": "Plant not found.",
            "details": "No plant found with the ID 12345.",
            "suggestion": "Please check the plant ID and try again.",
            "customer_id": "CUST-98765",
            "timestamp": "2025-02-26T12:34:56Z"
        }
    }


This error object provides:

• Code: HTTP status code (404)
• Message: General description of the error
• Details: Specific information about what went wrong
• Suggestion: Helpful advice on how to resolve the issue
• Customer ID: Identifier for the customer encountering the error
• Timestamp: Time when the error occurred

Why Use an Error Object in API Responses?

• Detailed Information: Provides more context about the error, including a description and possible solutions.
• Consistency: Ensures a standard format for error handling across different API endpoints.
• Debugging Aid: Helps developers quickly identify and resolve issues by providing relevant data.
• User-Friendly: Improves user experience by returning informative error messages rather than vague codes.

Importance of Clear REST API Documentation

• Clarity: Clear documentation helps developers understand how to use the API effectively
• Consistency: Consistent formatting and terminology improve usability and reduce confusion

Importance of Clear REST API Documentation (Continued)

• Accessibility: Public APIs should have documentation that is easy to find and navigate
• Security: Private APIs should clearly define authentication and authorization mechanisms
• Examples: Providing code examples helps users implement the API correctly and efficiently

Public API Documentation Example

        GET /plants/{id}

        Description: Retrieves detailed information about a specific plant by its ID.
        Parameters: - id (path): The unique identifier of the plant.
        Response: {
            "id": 123,
            "name": "Plant A",
            "description": "A beautiful indoor plant.",
            "status": "available"
        }
        Example Request: curl -X GET "https://api.sproutly.com/plants/123"


Private API Documentation Example

    POST /plants

    Description: Adds a new plant to the inventory.
    Request Body: {
        "name": "Plant B",
        "description": "A lovely outdoor plant.",
        "status": "available"
    }
    Authentication: Requires Bearer token in the Authorization header.


Public API Documentation Example (Parameters)

    Parameters:
    - name (query, optional): The name of the plant.
    - type (query, optional): The type of plant (e.g., indoor, outdoor).
    - status (query, optional): Availability status of the plant (e.g., available, sold out).


Public API Documentation Example (Response)

    Response: {
        "results": [
            {
                "id": 123,
                "name": "Plant A",
                "type": "indoor",
                "status": "available"
            },
            {
                "id": 124,
                "name": "Plant B",
                "type": "outdoor",
                "status": "sold out"
            }
        ],
        "total": 2
    }
    Example Request: curl -X GET "https://api.sproutly.com/plants/search?name=Plant&type=indoor"


Private API Documentation Example

    POST /plants

    Description: Adds a new plant to the inventory.
    Request Body: {
        "name": "Plant B",
        "description": "A lovely outdoor plant.",
        "status": "available"
    }
    Authentication: Requires Bearer token in the Authorization header.


Questions?

Client Browser Testing

February 28, 2025

• Test groups for alpha and beta testing
• Test automation with VS Copilot
• MVP 1 Product Demo

Alpha Testing

• Conducted by internal teams
• Focus on identifying bugs and issues
• Ensures core functionalities work as expected

Beta Testing

• Conducted by a select group of external users
• Focus on user feedback and real-world usage
• Helps identify usability issues and gather improvement suggestions

Team Members

• Developer
• Quality
• Designer
• Product Manager

Responsibilities

• Lead Developer: Implement core functionalities and fix bugs
• QA Engineer: Conduct thorough testing and report issues
• UX Designer: Ensure user interface meets design standards
• Product Manager: Oversee the testing process and prioritize tasks

Goals

• Identify and resolve critical bugs
• Ensure core functionalities work as expected
• Prepare the product for beta testing

Team Members

• External User on GitHub
• External User on App Store
• External User on Community
• External User on Colleagues

Responsibilities

• Provide feedback on usability and report any issues
• Test the product in real-world scenarios and suggest improvements
• Identify any performance issues and provide feedback
• Ensure the product meets user expectations and report any discrepancies

Goals

• Gather user feedback and suggestions for improvement
• Identify and resolve usability issues
• Ensure the product is ready for general release

Questions?

Introduction to AI-Powered Test Automation

• AI tools like GitHub Copilot assist in writing test cases
• Automates repetitive and time-consuming tasks
• Improves accuracy and efficiency in testing

Benefits of AI in Test Automation

• Reduces human error and increases test coverage
• Speeds up the development and testing process
• Provides intelligent suggestions and code completions

Motivation for Using AI in Testing

• Handles complex test scenarios with ease
• Improves collaboration among development teams
• Ensures high-quality software releases

Examples

JavaScript Unit Test Example

                    // Unit Test: Testing a single function
                    function calculateWaterNeed(plantType) {
                        const needs = { cactus: 1, fern: 5, rose: 3 };
                        return needs[plantType] || 2;
                    }

                    // Test
                    const result = calculateWaterNeed('cactus');
                    console.assert(result === 1, `Expected 1, but got ${result}`);


JavaScript Component Test Example

                    // Component Test: Testing a component that uses multiple functions
                    function checkWaterNeed(plant) {
                        const waterNeed = calculateWaterNeed(plant.type);
                        return plant.soilMoisture < waterNeed ? 'Watering required' : 'No watering needed';
                    }

                    // Test
                    const plant = { type: 'fern', soilMoisture: 2 };
                    const result = checkWaterNeed(plant);
                    console.assert(result === 'Watering required', `Expected 'Watering required', but got ${result}`);


JavaScript Integration Test Example

                    // Integration Test: Testing the interaction between multiple components
                    function manageWateringSystem(plants) {
                        return plants.map(plant => ({
                            ...plant,
                            status: checkWaterNeed(plant)
                        }));
                    }

                    // Test
                    const plants = [
                        { type: 'fern', soilMoisture: 2 },
                        { type: 'cactus', soilMoisture: 3 }
                    ];
                    const expected = [
                        { type: 'fern', soilMoisture: 2, status: 'Watering required' },
                        { type: 'cactus', soilMoisture: 3, status: 'No watering needed' }
                    ];
                    const result = manageWateringSystem(plants);
                    console.assert(JSON.stringify(result) === JSON.stringify(expected), `Expected ${JSON.stringify(expected)}, but got ${JSON.stringify(result)}`);


Module 8
Midterm Preparation

March 3, 2025

Midterm Practice Questions

Why is software engineering important in the development of IoT/CPS systems?

• It ensures the reliability and robustness of the system process
• It helps manage the complexity of interconnected devices and teams
• It facilitates the integration of various components and technologies
• It ensures the system meets safety and regulatory standards
• All of the above

What are some key differences between traditional software engineering and software engineering in IoT/CPS?

• Handling unstructured data
• Real-time sensor data processing
• Data-driven decision making
• Ensuring safety and reliability
• All of the above

What are the different levels of requirements in software engineering?

• Unstructured Requirements
• Epics
• User Stories
• Tasks
• All of the above

Why are requirements important for IoT/CPS systems?

• They ensure the system meets user needs and expectations
• They help manage the complexity of interconnected devices
• They facilitate the integration of various components and technologies
• They ensure the system meets safety and regulatory standards
• All of the above

What are the differences between Unstructured Requirements, Epics, User Stories, and Tasks in software engineering?

• Unstructured Requirements are detailed specifications, while Epics are high-level goals
• User Stories are broad objectives, while Tasks are specific actions
• Epics are large bodies of work that can be broken down into User Stories, which are further divided into Tasks
• Unstructured Requirements are informal and not well-defined, while Epics, User Stories, and Tasks are structured and detailed
• All of the above

What is the difference between User Stories and Tasks?

• Stories are high-level, Tasks are specific
• Stories are detailed, Tasks are high-level
• Stories are actions, Tasks are objectives
• Stories add value, Tasks complete contributions
• All of the above

What components does a User Story typically have in software engineering?

• Title
• Description
• Acceptance Criteria
• Effort
• All of the above

What is the typical structure of a User Story in software engineering?

• As a user, I would like to [goal], so that [reason]
• As a [role], I want to [action], so that [benefit]
• As a [role], I need [requirement], because [justification]
• As a [role], I would like to [goal], so that [reason]
• All of the above

What is a key difference between the Waterfall model and the V-Model in software development?

• The Waterfall model is iterative, while the V-Model is linear
• The V-Model emphasizes verification and validation at each development stage
• The Waterfall model supports parallel development and testing
• The V-Model does not include any testing phases
• Both models are identical in their approach

What is a key difference between the V-Model and Agile Model in software development?

• The V-Model is iterative, while Agile is linear
• The V-Model emphasizes verification and validation at each development stage
• Agile supports continuous integration and delivery
• The V-Model does not include any testing phases
• Both models are identical in their approach

What are the phases of the V-Model in software development?

• Requirements, Design, Coding, Unit Testing, Integration Testing
• Requirements, Design, Architecture, Module Design, Coding, Testing
• Requirements, Design, Coding, System Testing, Acceptance Testing
• Requirements, Architecture, Coding, Unit Testing, System Testing
• Requirements, Design, Coding, Integration Testing, Acceptance Testing

Why can Scrum be integrated into the V-Model in software development?

• Scrum provides flexibility within the structured phases of the V-Model
• Scrum emphasizes continuous integration and delivery
• Scrum allows for iterative development and feedback within each phase
• Scrum improves team collaboration and communication
• All of the above

How does Conway's Law relate to team structure and software architecture?

• Structure of a software system mirrors the communication structure of the team that built it
• It suggests that software architecture should be designed independently of team structure
• It implies that larger teams produce more complex software architectures
• It indicates that team structure has no impact on software architecture
• All of the above

Why can Scrum be integrated into the V-Model in software development?

• Scrum allows for major changes to be made during sprints
• Scrum enables iterative software updates that do not impact validation
• Scrum supports continuous feedback and improvement for non-critical features
• Scrum improves team collaboration and communication during each phase
• Scrum is only used for documentation purposes

How does the V-Model mitigate the risks associated with Conway's Law?

• By ensuring that the software architecture is designed independently of team structure
• By emphasizing verification and validation at each development stage
• By promoting continuous integration and delivery
• By reducing the complexity of software architectures
• All of the above

How does the V-Model mitigate the risks with the Form, Storm, Norm, and Perform?

• By providing clear roles and responsibilities during Forming
• By emphasizing structured communication and conflict resolution during Storming
• By establishing standards and processes during Norming
• By ensuring continuous verification and validation during Performing
• All of the above

Does the V-Model natively support cross-functional teams in software development?

• Yes, it fully integrates cross-functional teams
• No, it primarily focuses on sequential development phases
• Yes, but only in the testing phases
• No, it requires significant adaptation to support cross-functional teams

Which aspects require the V-Model?

What is a key difference between the Incremental Model and the Sequential (Waterfall) Model?

• Incremental Model delivers the complete system at once, while the Sequential Model delivers it in parts
• Incremental Model allows for iterative development and feedback, while the Sequential Model follows a linear approach
• Incremental Model does not include any testing phases, while the Sequential Model emphasizes testing
• Incremental Model is used for small projects, while the Sequential Model is used for large projects

What is the definition of software architecture?

• The process of writing code for software applications
• The high-level structure of a software system
• The detailed design of individual software modules
• The testing and validation of software systems

Which of the following are architectural decisions in software development?

• Database selection
• Programming language choice
• Software framework selection
• Integrated Development environment

What is the API-first approach in architectural design?

• Designing the user interface before the API
• Developing the backend logic before the API
• Prioritizing the design and development of APIFs
• Implementing database schemas before the API

What is the role of feature toggles in architectural design?

• To enable/disable features without deploying new code
• To manage database schemas and configurations
• To design user interfaces and layouts
• To handle network settings and protocols

How do feature toggles support the V-Model in real applications?

• By enabling features without redeploying code
• By managing database schemas and configurations effectively
• By designing user interfaces and layouts efficiently
• By handling network settings and protocols seamlessly

Why does the event-driven model match well with IoT/CPS systems?

• It requires less power consumption
• It complicates user interface design
• Sensors trigger events in real-time
• It increasees the need for data storage

Why is the layered model a good model for IoT/CPS systems?

• It simplifies user interface design
• It reduces the need for data storage
• It models sensors at the core layer
• It requires less power consumption

Why are IoT/CPS systems impacted by legal constraints?

• Sensor-based realtime decisions impact safety
• They involve handling sensitive user data
• Battery powered components require safety measures
• They reduce the need for data storage

In theory, are legal requirements more aligned with the Sequential or Incremental Model?

• Sequential Model
• Incremental Model
• Both equally
• Neither

How does the V-Model align with legal requirements?

• By ensuring rapid development cycles
• By promoting team collaboration
• By tracing validation and verification
• By reducing development costs

In a RACI chart, who is legally chargeable?

• Responsible role
• Accountable role
• Consulted role
• Informed role

Do legal requirements prevent errors in software, hardware, or data?

• Yes, they ensure no errors occur
• No, they do not prevent errors
• Yes, but only for software errors
• No, they only address compliance

What mechanism do accountable roles use to mitigate risks in software development?

• Invest more in quality assurance processes
• Focus on feature development over quality
• Reduce the number of team members
• Ignore minor bugs to speed up development

What is the difference between testing, verification, and validation?

• Testing ensures that the software functions correctly
• Verification checks if the software meets design specifications
• Validation ensures the software meets user needs and requirements
• All of the above

RACI Chart for a Software Development Project

In a RACI chart, who is responsible for the Implementation task?

• Business Analyst
• Architect
• Developers
• QA Team

How much of the V-Model's effort is typically allocated to testing?

• 10%
• 25%
• 50%
• 75%

Does testing in the V-Model happen in parallel with implementation or after implementation?

• In parallel with implementation
• After implementation
• Before implementation
• Not related to implementation

Which test levels in the V-Model require coding skills?

• Unit Testing
• Component Testing
• Integration Testing
• System Testing

What are the steps in the Arrange, Act, Assert (AAA) pattern for unit tests?

• Arrange: Set up the necessary conditions and inputs for the test
• Act: Execute the functionality being tested
• Assert: Verify that the outcome matches the expected result
• All of the above

Will this unit test case be OK or NOK?

                // Arrange
                const a = 2;
                const b = 3;
                const expectedSum = 5;

                // Act
                const result = a + b - 1;

                // Assert
                console.assert(result === expectedSum, `Expected ${expectedSum}, but got ${result}`);


What does Test-Driven Development (TDD) mean in software development?

• Writing tests after the code is implemented
• Writing tests before the code is implemented
• Skipping tests to speed up development
• Only testing the final product

How does Test-Driven Development (TDD) align with the V-Model in software development?

• Both emphasize early testing and validation
• Both require writing tests after implementation
• Both focus on rapid development cycles
• Both prioritize feature development over quality assurance

Why is Test-Driven Development (TDD) considered difficult in software development?

• It requires writing tests before the code is implemented
• It demands a thorough understanding of the requirements and design upfront
• It can slow down the initial development process
• It requires maintaining and updating tests as the code evolves

As a tester, if the software fails, do you go test levels down or up?

• Down
• Up
• Neither
• Both

Which test levels in V-Model for IoT/CPS can be more/less automated?

• Unit Testing
• Component Testing
• Integration Testing
• System Testing
• Acceptance Testing

How can sensor errors be identified and mitigated during testing in IoT/CPS systems?

• By using redundancy with multiple sensors
• By performing regular calibration of sensors
• By implementing error handling and logging mechanisms
• All of the above

During testing, the sensor is occasionally not working correctly. Please a paragraph with a plan how to find the error?

A legal regulation states that from March/2025 indoor plants cannot be watered using our system. How do you recommend addressing the issue in the current (MVP 1) plant watering project? How does it impact our process? Please provide a paragraph.

March 5, 2025

• Sprint #6 Demo: MVP Release
• Midterm Practice Questions

Why are unit tests easier to automate compared to component tests?

• They focus on small, isolated functions with minimal dependencies
• They require fewer external resources and configurations
• They run faster and provide immediate feedback
• All of the above

Correct Answer: All of the above.

Will the following unit test pass or fail?

                function add(a, b) {
                    return a + b + b;
                }
                function unittests() {
                    // Arrange
                    const a = 10, b = 5;
                    // Act
                    const result = add(a, b);
                    // Assert
                    console.assert(result === 15, `Test failed: expected 15, got ${result}`);
                }
                unittests();


Will the following unit test pass or fail?

                function multiply(a, b) {
                    return a * b;
                }
                function unittests() {
                    // Arrange
                    const a = 4, b = 3;
                    // Act
                    const result = multiply(a, b);
                    // Assert
                    console.assert(result === 12, `Test failed: expected 12, got ${result}`);
                }
                unittests();


Will the following unit test pass or fail?

                function subtract(a, b) {
                    return a - b;
                }
                function unittests() {
                    // Arrange
                    const a = 10, b = 5;
                    // Act
                    const result = subtract(a, b);
                    // Assert
                    console.assert(result === 4, `Test failed: expected 4, got ${result}`);
                }
                unittests();


Our flower inventory management system will be installed for outdoor plants in a different climate zone. Please list five ways it will impact our current prototype and why?

In a flower inventory management system, where multiple features such as stock tracking, price updates, and order management are being developed simultaneously, there is little capacity for extensive review processes before merging. The need to push frequent updates quickly—such as adding new flowers to the database, adjusting prices based on seasonal demand, or managing promotions—requires a workflow that can handle continuous integration and deployment

Please explain three reasons why Feature GitFlow might not be suitable for this system?

When adding one feature to the flower inventory management system, what type of issue should you create?

• Epic Issue
• User Story Issue
• Task Issue
• Bugfix Issue

Correct Answer: User Story Issue.

When planning a major upgrade to the flower inventory management system, which will include multiple related features, what type of issue should you create?

• Epic Issue
• User Story Issue
• Task Issue
• Bugfix Issue

Correct Answer: Epic Issue.

The flower inventory management system is expanding to support multiple locations, each with its own stock, pricing, and order processing. The system must be scalable, allow independent deployment of features, and handle high availability. Which architecture—Layered Architecture, Microservices, or Client-Server—would be the most suitable choice, and why?

Module 9
Holiday Week

Module 10
Resource Constraints and Sustainability in Industry 4.0

Today: March 17, 2025

• Midterm Review
• Resource Constraints
• Project
• Use Case
• Lab 1 and Homework 1

Which is a key difference between software engineering for IoT and traditional software development?

• IoT software must handle constrained resources and real-time constraints, unlike most traditional software
• IoT software engineering follows an entirely different software development lifecycle than traditional software
• IoT software development does not require security considerations, while traditional software does
• IoT software always operates in the cloud, while traditional software is only embedded in hardware

Which of the following is a more critical requirement for IoT software compared to traditional software?

• Reduced focus on security due to limited data processing
• High-resolution graphical user interfaces (GUIs) for user interaction
• No need for scalability since IoT devices operate independently
• Managing intermittent connectivity and energy efficiency constraints

At the beginning of the V-Model process, what type of requirements are primarily defined?

• Test cases for unit test verification
• Specific implementation tasks for developers
• Detailed bug fixes and code refactoring plans
• High-level epics and user stories

According to Conway’s Law, if a software is built by two teams, what is the expected architecture?

• One monolithic architecture
• Two interacting components
• One single, unified system
• A randomly structured system

In the V-Model, if a user story validation fails after implementation, what is the correct next step?

• Escalate to next development cycle
• Escalate to requirements verification phase
• Escalate to system testing phase
• Escalate to design phase

Why is the V-Model a good software engineering process for IoT software?

• It focuses on fast incremental results for IoT
• It reduces the need for IoT testing, since each team tests each sprint
• It links requirements, design, and quality effectively for IoT
• It works best for standalone applications

Why is the V-Model often extended with Agile/Scrum Model?

• Agile focuses only on UI design, while V-Model handles development
• Agile adds incremental development to the V-Model
• Agile principles focus exclusively on documentation, which the V-Model lacks
• Agile eliminates the need for testing, which the V-Model relies on

Why is the sequential V-Model not strictly sequential?

• Testing is only done at the final phase of the process
• It requires frequent changes to the original requirements
• Design phases are skipped in favor of rapid development
• Bug fix implementation throughout the process

Which architecture does the plant watering system app have?

• Serverless approach using cloud for all components
• Monolithic structure with all components in one component
• Microservices with independent modules for each component
• Layered design with embedded, frontend, and backend

How does the V-Model address compliance with legal requirements?

• By ensuring legal compliance is checked only during the deployment phase
• By skipping testing and focusing solely on design and documentation
• Through emphasis on verification, validation, and testing
• By relying on external audits after the project is completed

What is the difference between verification, validation, and testing?

• Verification ensures user/customer needs, validation checks functionality, and testing finds bugs
• Verification and validation are the same, testing is done at the end
• Verification checks requirements, validation checks the right problem, and testing checks errors
• Verification is during implementation, validation post-deployment, and no testing needed

Which of the following best describes the "Arrange, Act, Assert" (AAA) pattern in testing?

• Arrange test data, act on the system, and assert the outcome
• Act first, then arrange test data, and finally assert the expected result
• Assert the behavior, act to modify it, and arrange the conditions
• Arrange the function, assert expected behavior, and act to test

Why is the AAA testing principle useful?

• It is only useful for unit tests
• It works only for low-level tests
• It limits tests to Arrange and Assert steps
• It provides structured tests for all levels

How does Test-Driven Development (TDD) align with the V-Model?

• TDD removes the need for a structured testing phase
• TDD skips testing, validating only after deployment
• TDD writes tests before code, aligning with V-Model’s early validation
• TDD writes tests after implementation, V-Model tests at the end

When does software testing happen in the V-Model?

• Only during software development
• After software design
• After each phase
• After software implementation

How can you test if a plant water sensor is defective even if the value is valid?

• By checking if the sensor provides consistent readings over time
• By relying on the sensor to automatically correct any defects
• By testing the sensor only after system deployment
• By comparing the sensor values with manual measurements under the same conditions

What do stakeholders do after completing their phase in the V-Model?

• UI/UX Engineer: Provide an initial design for feedback, not the final version
• Requirements Engineering: Review the design but do not approve it yet
• They prepare for the validation phase and support other teams in the meantime
• Architecture Engineer: Handoff initial architectural ideas without full documentation

Why can requirements be estimated, but bug fixes cannot be easily estimated for IoT software?

• In the V-Model, bug fixes always require more time than requirements estimation
• In the V-Model, requirements are tested immediately, while bug fixes take constant time
• In the V-Model, requirements can be changed, but bug fixes are fixed once completed
• In the V-Model, requirements are well-defined, while bug fixes are unpredictable

Questions?

Resource Constraints

Constrained Resources in IoT Applications

• Storage: Limited storage capacity can constrain the amount of data that can be logged and retained on the device
• Power: IoT devices often rely on batteries, making power consumption a critical constraint
• Memory: Limited memory capacity in IoT devices restricts the amount of data that can be stored and processed
• Processing Power: IoT devices typically have low processing power, affecting their ability to perform complex computations
• Network Bandwidth: IoT devices may have limited network bandwidth, impacting data transmission rates and connectivity

Data Structure and Options to Re-use Data

Python Code for Ring Storage

                class RingBuffer:
                    def __init__(self, size):
                        self.size = size
                        self.data = [None] * size
                        self.index = 0

                    def append(self, value):
                        self.data[self.index] = value
                        self.index = (self.index + 1) % self.size

                    def get(self):
                        return self.data

                ring = RingBuffer(5)
                for i in range(7):
                    ring.append(i)
                    print(ring.get())


Today: March 19, 2025

• Resource Constraints
• Project
• Use Case
• Lab 1 and Homework 1

Constrained Resources in IoT Applications

Constrained Resources in IoT Applications

• Storage: Limited storage capacity can constrain the amount of data that can be logged and retained on the device
• Power: IoT devices often rely on batteries, making power consumption a critical constraint
• Memory: Limited memory capacity in IoT devices restricts the amount of data that can be stored and processed
• Network Bandwidth: IoT devices may have limited network bandwidth, impacting data transmission rates and connectivity
• Processing Power: IoT devices typically have low processing power, affecting their ability to perform complex computations

Battery Driven Software

Battery Driven Software

Software designed to optimize energy consumption in battery-powered devices by reducing power usage while maintaining functionality

• IoT Sensors: Devices that enter sleep mode when not transmitting data
• Wearable Devices: Smartwatches that adjust display brightness based on ambient light
• Environmental Monitoring: Systems that dynamically reduce sampling rates to conserve energy
• Smart Home Devices: Thermostats that minimize communication frequency to save battery

Battery Efficient Design Example

Adaptive Sync Interval: Adjusts data transmission frequency based on watering time

• Recently Watered: Sync every 6 hours to conserve battery
• Drying Soil: Sync every 2 hours to monitor moisture levels closely
• Critical Dryness: Sync every 30 minutes and trigger an alert

Adaptive Sync Interval Example

                function getSyncInterval(lastWatered) {
                    const now = new Date();
                    const hoursSinceWatered = (now - lastWatered) / (1000 * 60 * 60);
                    if (hoursSinceWatered < 6) {
                        return 6 * 60 * 60 * 1000; // 6 hours
                    } else if (hoursSinceWatered < 24) {
                        return 2 * 60 * 60 * 1000; // 2 hours
                    } else {
                        return 30 * 60 * 1000; // 30 minutes
                    }
                }
                const lastWatered = new Date('2025-03-15T08:00:00');
                const syncInterval = getSyncInterval(lastWatered);
                console.log(`Next sync in ${syncInterval / (60 * 1000)} minutes.`);


Battery Testing: Overheating and Legal Compliance

• Overheating Risks: Test early to prevent device malfunctions or hazards.
• Legal Compliance: Follow regulations like the Battery Act (1996) for safety
• Testing Phases: Conduct stress tests to identify overheating issues before launch

Monitoring Battery Temperature

• Temperature Sensors: Use embedded sensors to track battery temperature in real-time
• Threshold Alerts: Set temperature limits to trigger alerts when overheating occurs
• Preventive Measures: Implement cooling mechanisms or reduce load if temperature exceeds safe limits

Monitoring Battery Temperature (JavaScript)

                navigator.getBattery().then(battery => {
                    function monitorTemperature() {
                        const temperature = battery.temperature;
                        console.log(`Battery Temperature: ${temperature}°C`);

                        if (temperature > 40) { // Example threshold
                            console.log('Warning: Battery temperature is too high!');
                            // Trigger alert or cooling system here
                        }
                    }
                    setInterval(monitorTemperature, 5000); // Check every 5 seconds
                });


Battery Disposal Regulations

Proper disposal of batteries is essential to protect the environment and comply with regulations.

• In California, batteries are classified as universal waste and must be recycled properly.
• Residents can find guidance on safe disposal methods at:

DTSC Battery Disposal Guidelines

IoT Companies and Battery Accountability

• Efficient Design: Power-saving software to extend battery life
• Battery Management: Safe charging and power optimization
• End-of-Life Handling: Clear disposal instructions
• Compliance: Follow laws like the Battery Act (1996) and California's Universal Waste Rule

Reading Battery Status in JavaScript

            navigator.getBattery().then(battery => {
                console.log(`Battery Level: ${Math.round(battery.level * 100)}%`);
                console.log(`Charging: ${battery.charging ? 'Yes' : 'No'}`);

                battery.addEventListener('levelchange', () => {
                    console.log(`Updated Battery Level: ${Math.round(battery.level * 100)}%`);
                });

                battery.addEventListener('chargingchange', () => {
                    console.log(`Charging Status: ${battery.charging ? 'Yes' : 'No'}`);
                });
            });


Common Connectivity and Bandwidth Performance

Network Bandwidth Constraints in IoT

• Limited Bandwidth: Affects data speed and reliability
• Streaming Data: Needs higher bandwidth and impacts battery life
• Compression: Reduces data size, improving bandwidth usage

Optimizing Data Transmission

• Streaming: Ideal for real-time data, but high bandwidth and power use
• Compression: Saves bandwidth, but may introduce latency

Compress GPS

GPS Data Compression with Polyline

• Polyline Encoding: Compresses GPS coordinates by encoding paths as a series of points, reducing data size
• Delta Encoding: Transmits only changes in coordinates to further minimize data
• Compression: Apply gzip or Brotli to reduce bandwidth usage

GPS Data Compression with Polyline

                // Example: Display GPS coordinates
                const coordinates = [
                    {lat: 37.7749, lng: -122.4194},  // San Francisco
                    {lat: 34.0522, lng: -118.2437}   // Los Angeles
                ];
                console.log(coordinates);  // Output: GPS values


GPS Data Compression Percentage

• Before Compression: GPS coordinates are represented with high precision, using multiple decimal places
• After Compression: Using Polyline encoding, the data size is reduced significantly, often by 60-80%
• Example: A set of 2 coordinates (with 2 decimal places) might compress from 128 bytes to just 40 bytes

Compress JSON

JSON vs Protobuf

• JSON: Human-readable text format, easy to debug, but larger in size and slower to serialize/deserialize
• Protobuf: Compact binary format, more efficient for data transmission and storage, but not human-readable
• Use Case: Protobuf is ideal for IoT devices and high-performance applications where bandwidth and storage are limited

Flower Watering System: JSON vs Protobuf

    {
        "flower_id": 101,
        "last_watered": "2025-03-15T08:30:00Z",
        "water_amount_ml": 200,
        "soil_moisture": 65
    }


    // Protobuf Encoded Data (Hexadecimal Format, not human-readable)
    08 65 0a 1a 32 30 32 35 2d 30 33 2d 31 35 54 30 38 3a
    33 30 3a 30 30 5a 10 c8 01 18 41


JSON to Protobuf and Reverse (Python)

                json_data = '{"flower_id": 101, "last_watered": "2025-03-15", "water_amount_ml": 200}'
                data = json.loads(json_data)

                flower = flower_pb2.FlowerWatering(**data)
                protobuf_data = flower.SerializeToString()
                flower_parsed = flower_pb2.FlowerWatering()
                flower_parsed.ParseFromString(protobuf_data)

                protobuf_json = json.dumps({
                    "flower_id": flower_parsed.flower_id,
                    "last_watered": flower_parsed.last_watered,
                    "water_amount_ml": flower_parsed.water_amount_ml
                })


Compression Efficiency: JSON vs Protobuf

Using Protobuf to Make Jira Cloud Faster

Article

Managing CPU Limitations in IoT

• Optimize algorithms to reduce CPU load
• Use edge computing to offload tasks
• Prioritize critical tasks efficiently
• Leverage low-power CPUs and sleep modes
• Compress data to minimize processing

Agenda: March 21, 2025

• Low-Resolution Display (Web)
• Low-Resolution Display (Embedded)
• Paging
• Lazy Loading
• Team Project Reading Paper
• Course Project Sprint #8

Optimizing for Low-Resolution Devices (Web)

• User-Agent Detection
• Media Queries
• Display: Flex
• Viewport Meta Tag
• Font and Button Sizing
• Image Optimization
• Touch-Friendly Design

Detecting User Agent

Identify the browser and device type using JavaScript

console.log(navigator.userAgent);


• navigator.userAgent provides browser and device details
• Useful for device-specific optimizations
• Less preferred than media queries for responsive design

Detecting Mobile vs. Desktop

if (/Mobi|Android/i.test(navigator.userAgent)) {
    console.log("Mobile device detected");
} else {
    console.log("Desktop detected");
}


• Checks if the user agent string contains mobile keywords
• Useful for conditional UI changes
• Consider feature detection instead for better reliability

Examples of User Agents

• Chrome (Windows): Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0.0.0 Safari/537.36
• Firefox (Mac): Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) Gecko/20100101 Firefox/115.0
• Safari (iPhone): Mozilla/5.0 (iPhone; CPU iPhone OS 17_0 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/17.0 Mobile/15E148 Safari/605.1.15
• Edge (Windows): Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0.0.0 Safari/537.36 Edg/120.0.0.0
• Android Chrome: Mozilla/5.0 (Linux; Android 13; Pixel 6) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0.0.0 Mobile Safari/537.36
• Opera (Windows): Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0.0.0 Safari/537.36 OPR/95.0.0.0
• Brave (Mac): Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0.0.0 Safari/537.36 Brave/120.0.0.0
• Safari (iPad): Mozilla/5.0 (iPad; CPU OS 17_0 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/17.0 Mobile/15E148 Safari/605.1.15
• Samsung Internet (Android): Mozilla/5.0 (Linux; Android 13; SM-G998U) AppleWebKit/537.36 (KHTML, like Gecko) SamsungBrowser/22.0 Chrome/120.0.0.0 Mobile Safari/537.36
• Googlebot (Web Crawler): Mozilla/5.0 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)

Define API Endpoints

// Define API endpoints
const API_ENDPOINTS = {
    desktop: "https://api.sproutly.com/full-weather-data",
    mobile: "https://api.sproutly.com/compact-weather-data",
    embedded: "https://api.sproutly.com/basic-sensor-data"
};


Based on the device type, different endpoints serve the appropriate data response

Selecting the API Endpoint

let selectedEndpoint;

if (userAgent.includes("Mobile") || userAgent.includes("Android") || userAgent.includes("iPhone")) {
    selectedEndpoint = API_ENDPOINTS.mobile;  // Send compact data
} else if (userAgent.includes("ESP32") || userAgent.includes("RaspberryPi")) {
    selectedEndpoint = API_ENDPOINTS.embedded;  // Send only essential sensor data
} else {
    selectedEndpoint = API_ENDPOINTS.desktop;  // Send full weather data
}

console.log("Using API:", selectedEndpoint);


Based on the user agent, the correct API endpoint is selected to optimize the data response

Mobile Devices

Mobile devices may have limited battery life and slower network speeds, so updates should be less frequent

// Mobile devices update every 30 minutes
if (userAgent.includes("Mobile") || userAgent.includes("Android") || userAgent.includes("iPhone")) {
    setInterval(() => {
        // Fetch compact weather data for mobile
        fetch(API_ENDPOINTS.mobile)
            .then(response => response.json())
            .then(data => console.log("Mobile Data:", data))
            .catch(error => console.error("Mobile API Error:", error));
    }, 30 * 60 * 1000); // Update every 30 minutes
}


User Agent not always correct 😔

Media Queries

Media queries adjust CSS based on device features like screen size, resolution, and orientation.

Syntax

                @media (max-width: 768px) {
                    /* Styles for small screens */
                }


Mobile Layout

                @media (max-width: 600px) {
                    body { font-size: 14px; }
                    .container { padding: 10px; }
                }


Common Queries

• @media (max-width: 768px) {}
• @media (min-width: 1024px) {}
• @media (orientation: portrait) {}

Introduction to the Viewport

The viewport defines the visible area of a web page on the screen

• Crucial for mobile-friendly designs
• Works with media queries to ensure responsiveness
• Controls scaling and layout for different screen sizes

Viewport Meta Tag

The viewport meta tag sets the visible area of the web page on mobile devices

<meta name="viewport" content="width=device-width, initial-scale=1">


• width=device-width: Sets the width to the device's screen width
• initial-scale=1: Sets the initial zoom level

Viewport and Media Queries

Media queries use the viewport's size to apply different styles for various devices

• Media queries adapt layouts based on the viewport's width
• Responsive designs adjust to different screen sizes automatically

Preventing Zooming on Mobile

The viewport meta tag can control zoom behavior on mobile devices

<meta name="viewport" content="width=device-width, initial-scale=1, user-scalable=no">


• user-scalable=no: Prevents zooming
• Note: Not recommended for accessibility reasons

Why Viewport is Important

• Ensures proper scaling on mobile devices
• Works with media queries for responsive design
• Improves user experience across all devices

Flexbox Layout

Flexbox is a layout model that makes it easier to design responsive layouts without using floats or positioning

• Align and distribute space among items in a container
• Works with both horizontal and vertical layouts
• Ideal for responsive design

Setting up the Flexbox Container

To create a flex container, set the container's display property to `flex`

<div class="flex-container">
    <div class="flex-item">Item 1</div>
    <div class="flex-item">Item 2</div>
    <div class="flex-item">Item 3</div>
</div>

<style>
    .flex-container {
        display: flex; /* Turn container into flexbox */
    }
</style>


Lazy Loading and Paging

Lazy Loading in JavaScript

• What is it? Delaying loading of images or content until needed
• Why use it? Improves page load time and performance
• How? Using the "loading" attribute or Intersection Observer API

Lazy Loading with onscroll

• Trigger: Using the `onscroll` event to detect when an element enters the viewport
• Use Case: Load content or images only when the user scrolls near them
• Example: Trigger lazy loading of images as the user scrolls

window.onscroll = function() {
    if (elementInView()) {
        loadContent();
    }
};

function elementInView() {
    // Check if the element is in the viewport
    return element.getBoundingClientRect().top < window.innerHeight;
}

function loadContent() {
    // Logic to load content (e.g., images, data)
    console.log('Content loaded');
}

Module 11
Cyber Security in Industry 4.0 Ecosystems

March 24, 2025

Cyber Security in Industry 4.0 Ecosystems

• IoT Cybersecurity
• IoT Device Cybersecurity Capability Core Baseline
• Database Security
• Point-to-Point Security
• End-to-End Security

IoT Cybersecurity

Cybersecurity Defects in IoT Software

• Data Leakage: Unauthorized exposure of sensitive data
• No Access to Data: Inability to access critical data
• Unauthorized Access: Gaining access without permission
• Data Corruption: Tampering with sensor data or device controls
• Insecure Communication: Unprotected data transfer between devices
• Lack of Device Authentication: Unverified devices connecting to the network

IoT Cybersecurity - Where to Start 🤔

Zero Trust in IoT Cybersecurity

Zero Trust assumes no device, user, or network is trusted by default, ensuring tighter security in IoT environments

• Continuous Authentication: Verify devices and users at all stages
• Least Privilege Access: Limit access based on roles
• Micro-Segmentation: Isolate devices to reduce risks
• Dynamic Policies: Adapt policies based on context

Aspects That Earn Zero Trust

• Data: Encrypt, classify, and restrict access to authorized entities
• Software: Continuously monitor and validate for vulnerabilities
• Network: Implement segmentation and strict access control
• Operating System: Enforce security policies to limit privileged access
• Devices: Authenticate and continuously verify devices before granting access
• Rules: Define and enforce dynamic security policies based on context
• People: Use strong identity management and behavioral analytics to ensure trusted access

IoT Device Cybersecurity Capability Core Baseline

NIST IR 8259A (PDF)

IoT Core Baseline / Plant Water Device

IoT Cybersecurity - Where to Start 🤔

Database Security

Database Access Control

What Is Access Control?

Controls who can access data

• Prevents unauthorized access
• Enforces least privilege
• Core to database security

API Key Access Control

Restrict DB/API access via unique API keys

• Map keys to user roles
• Used in web apps, microservices
• Regenerate or revoke compromised keys

DB Connection URL

                  postgresql://username:password@host:port/database?sslmode=require


• username: neondb_owner
• password: npg_M5sVheSzQLv41234 (acts like API key)
• host: ep-shrill-tree-a819xf7v-pooler.eastus2.azure.neon.tech
• database: neondb
• sslmode: require (enforces encrypted connection)

IP-Based Access Control

Restrict DB/API access to specific IP addresses

• Allowlist trusted IPs only
• Block unauthorized external sources
• Used in firewalls and DB configs

Access Control Models

• DAC: Owner controls access
• MAC: Based on security labels
• RBAC: Role defines permissions

Access Control Models: Use Case

Mandatory Access Control (MAC)

• System enforces security labels
• Access requires clearance level
• Used in military and classified systems

Discretionary Access Control (DAC)

• Object owners define access
• Permissions can be delegated
• Simple but hard to audit at scale

DAC: Granting User Access

GRANT SELECT ON patient_records TO doctor_alex;

• Owner of the table grants access
• Follows discretionary access model
• Permissions can be passed to others (if allowed)

Role-Based Access Control (RBAC)

• Users → Roles → Permissions
• Centralized permission management
• Scales well in large systems

Creating and Assigning Roles (UA)

CREATE ROLE physician;

CREATE USER dr_smith WITH PASSWORD 'secure123';

GRANT physician TO dr_smith;

Common Privileges/Permissions (P)

• SELECT, INSERT, UPDATE, DELETE
• CREATE, DROP, ALTER
• GRANT, REVOKE

Granting Permissions (Plant Watering System)

GRANT READ ON soil_moisture TO watering_system;

Revoking Permissions (Plant Watering System)

REVOKE READ ON soil_moisture FROM watering_system;

Revoke All Permissions

                  REVOKE ALL PRIVILEGES ON ALL TABLES IN SCHEMA public FROM PUBLIC;


Granular Access Support

Summary

• Start with API key or user identity
• Use RBAC to simplify privilege logic
• Use GRANT/REVOKE for control
• Choose DB based on granularity needs

Database Fragmentation

Database Vertical Fragmentation for Privacy

• Separates identifiers from sensitive content
• Example: store patient names in one table/database, diagnoses in another
• Reduces risk of re-identification if breached
• Used in privacy-preserving and regulatory-compliant systems

Database Encryption

Plain Text vs. Encrypted Text (Plant Watering System)

What Is Database Encryption?

• Protects data by converting it to unreadable form
• Requires a key to decrypt and access
• Mitigates data breach impact

Why Encrypt Databases?

• Protect sensitive data at rest and in transit
• Support regulatory compliance (e.g., GDPR, HIPAA)
• Prevent insider and external threats

Types of Encryption

• At Rest: Encrypts stored data (e.g., disk, tablespace)
• In Transit: Encrypts data over the network
• Column-Level: Encrypt specific fields (e.g., SSN)

Transparent Data Encryption (TDE)

• Encrypts data files automatically
• Keys managed by the DB engine
• Minimal application changes required

Example: Column Encryption (Plant Watering System)

                CREATE TABLE plant_data (
                    id SERIAL,
                    plant_id TEXT,
                    soil_moisture_level TEXT ENCRYPTED FOR STORAGE,
                    watering_schedule TEXT
                );


Key Management

• Keys can be internal or managed externally (KMS, HSM)
• Rotation and protection are critical
• Lost keys = lost data

Performance Considerations

• Encryption adds CPU overhead
• Column-level is slower but more selective
• Use indexing carefully on encrypted fields

Risks Without Encryption

• Plaintext data exposed in disk theft or backups
• Network sniffing leaks sensitive data
• Non-compliance with data protection laws

Risks With Encryption?

Database Encryption Support

Summary

• Encrypt data to reduce breach risks
• Choose level: full, column, or in transit
• Use strong key management practices
• Verify DB feature support before implementation

Database SQL Injection

What Is SQL Injection?

• Attacker manipulates SQL queries via user input
• Can expose, modify, or delete data
• Common in apps that use unsafe query building

Vulnerable Python Example

                  user = input("Enter username: ")
                  query = f"SELECT * FROM users WHERE name = '{user}'"
                  cursor.execute(query)


Injection Attack Example

                  Input: alice' OR '1'='1
                  Query: SELECT * FROM users WHERE name = 'alice' OR '1'='1'


Bypasses authentication and returns all users

Safe Python Example (Parameterized)

                  user = input("Enter username: ")
                  query = "SELECT * FROM users WHERE name = %s"
                  cursor.execute(query, (user,))


Using parameters prevents SQL injection

SQL Injection Prevention Tips

• Always use parameterized queries
• Never concatenate raw input into SQL
• Use ORM libraries (e.g., SQLAlchemy, Django ORM)
• Sanitize and validate input when needed

Database Query Log

Why Log SQL Queries?

• Track suspicious or slow queries
• Monitor access patterns
• Detect SQL injection attempts
• Improve performance and security

Basic Logging in Python

                  import logging
                  logging.basicConfig(level=logging.INFO)

                  query = "SELECT * FROM patients"
                  logging.info(f"Running query: {query}")
                  cursor.execute(query)


Logging Query with Parameters

                  query = "SELECT * FROM patients WHERE name = %s"
                  params = ("Alice",)
                  logging.info("Query: %s | Params: %s", query, params)
                  cursor.execute(query, params)


Enabling SQL Logs in Databases

• PostgreSQL: log_statement = 'all'
• MySQL/MariaDB: general_log = ON
• SQLite: Use logging in wrapper code

Best Practices for Query Logging

• Mask sensitive values in logs (e.g., passwords)
• Use rotating log files to manage size
• Centralize logs for analysis (e.g., ELK stack)
• Correlate with user actions for traceability

Questions

Which model develops more secure software?

Case Study 1: Unauthorized Device Access

An IoT-enabled plant watering app is compromised when a hacker gains access to a user's device and manipulates watering schedules. The device was not properly secured and had default credentials. What security measure would have reduced the risk?

Case Study 2: Abnormal Usage Patterns

The plant watering app detects an unusual spike in watering requests from a single account, causing overwatering and potential damage to plants. What monitoring or anomaly detection strategy should be implemented?

Questions

Point-to-Point Security

Market Share of IoT Connectivity Technologies

Number of connected IoT devices (2024)

Bluetooth Security by Versions

Case Study: Point-to-Point Connectivity Security Breach

A plant watering system’s point-to-point Wi-Fi connection was compromised, allowing attackers to intercept and manipulate watering data. This disruption caused the system to water plants incorrectly. What security measures should have been implemented?

March 26, 2025

Relational Database Security Implementation

• Database Encryption PostgreSQL
• Diffie-Hellman Key Exchange
• Database Access Control
• Data Logging
• Pen Testing
• Software Vulnerabilities and Patches
• IoT Case Study

Database Encryption PostgreSQL

Create Extension

                      CREATE EXTENSION IF NOT EXISTS pgcrypto;


PGP Encryption

Reference: PostgreSQL pgcrypto Documentation

Drop Table

                      DROP TABLE secure_data;


Create Table

                      CREATE TABLE IF NOT EXISTS secure_data(
                        id SERIAL PRIMARY KEY,
                        sensitive_info BYTEA NOT NULL
                      );


Insert Encrypted Data

              INSERT INTO secure_data (sensitive_info)
              VALUES (pgp_sym_encrypt('Secret Information', 'my_strong_password'));


Select Encrypted Data

              SELECT id, ENCODE(sensitive_info, 'hex') AS encrypted_info
              FROM secure_data;


Decrypt Data

              SELECT id, pgp_sym_decrypt(sensitive_info, 'my_strong_password')
              AS decrypted_info
              FROM secure_data;


Diffie-Hellman Key Exchange

Key Concept: Diffie-Hellman allows two parties to establish a shared secret over an insecure channel, used for symmetric key encryption

Database Hashing PostgreSQL

Hashing vs. Encryption

• Hashing: One-way, irreversible; used for password storage and verification
• Encryption: Two-way, reversible; protects sensitive data, allows secure retrieval

Create User with SCRAM-SHA-256

              SET password_encryption = 'scram-sha-256';
              CREATE ROLE username WITH LOGIN PASSWORD 'your_secure_password';


List All Users and Roles

                  SELECT rolname, rolsuper, rolcreaterole, rolcreatedb, rolcanlogin
                  FROM pg_roles;


Create User with MD5 (Legacy)

              SET password_encryption = 'md5';
              CREATE ROLE username WITH LOGIN PASSWORD 'your_secure_password';


Database IP-Based (Network) Access Control PostgreSQL

Questions

Database User-Based Access Control

Create Users (Flower Store)

              CREATE USER Bob PASSWORD 'bob_pass_123!';
              CREATE USER Alice PASSWORD 'alice_pass_123!';


Grant Permissions to Users

                  -- Grant full access to Bob
                  GRANT ALL PRIVILEGES ON Flowers TO Bob;

                  -- Grant read-only access to Alice
                  GRANT SELECT ON Flowers TO Alice;


List and Switch Users

                  -- Show all users and roles
                  SELECT rolname FROM pg_roles;

                  -- Switch user temporarily
                  SET ROLE Alice;

                  -- Switch back
                  RESET ROLE;


Test Queries with User Permissions

                  -- Switch to user 'Alice' (read-only)
                  SET ROLE Alice;

                  -- Successful query (Alice can SELECT)
                  SELECT * FROM flowers;

                  -- Failed query (Alice cannot DELETE)
                  DELETE FROM flowers WHERE id = 1;

                  RESET ROLE;

                  -- Switch to user 'bob' (full access)
                  SET ROLE Bob;

                  -- Successful query (Bob can DELETE)
                  DELETE FROM flowers WHERE id = 1;

                  RESET ROLE;


Revoke User Access

              REVOKE INSERT ON flowers FROM Bob;


Questions

Database Role-Based Access Control

Create Roles

                  CREATE ROLE viewer;
                  CREATE ROLE manager;


Create Users and Assign Roles

                  CREATE USER alice PASSWORD 'alice_pass';
                  CREATE USER bob PASSWORD 'bob_pass';

                  GRANT viewer TO alice;
                  GRANT manager TO bob;


Grant Permissions to Roles

                  GRANT SELECT ON flowers_core TO viewer;
                  GRANT SELECT, INSERT, UPDATE ON flowers_pricing TO manager;


Test Role-Based Access

                  GRANT alice TO current_user;
                  SET ROLE alice;
                  SELECT * FROM flowers_core;

                  SELECT * FROM flowers_pricing;

                  RESET ROLE;


Questions

Database Fragmentation

Split Table: Core Info

                  CREATE TABLE flowers_core (
                    id INTEGER PRIMARY KEY,
                    name TEXT
                  );


Split Table: Pricing Info

                  CREATE TABLE flowers_pricing (
                    id INTEGER PRIMARY KEY,
                    price REAL
                  );


Insert Fragmented Data

                  INSERT INTO flowers_core (id, name) VALUES (1, 'Rose');
                  INSERT INTO flowers_pricing (id, price) VALUES (1, 2.99);


Assign Access to Users

                  GRANT SELECT ON flowers_core TO viewer;
                  GRANT SELECT, INSERT, UPDATE ON flowers_pricing TO manager;


Questions

Database SQL Parameterized

Safe SQLite Parameter

Database Query Log PostgreSQL and SQLite

                  -- In postgresql.conf:
                  logging_collector = on
                  log_directory = 'log'
                  log_filename = 'postgresql-%Y-%m-%d.log'
                  log_statement = 'all'
                  log_min_error_statement = error
                  log_min_messages = warning


Grant Access and Test as Alice

                  GRANT USAGE ON SCHEMA public TO Alice;
                  GRANT SELECT ON team1_flowers TO Alice;
                  -- GRANT ALL PRIVILEGES ON team1_flowers TO Alice;
                  GRANT Alice TO current_user;
                  SET ROLE Alice;
                  SELECT * FROM team1_flowers;
                  RESET ROLE;


SQLite Query Logs - Option 1

                  sqlite3 mydatabase.db
                  .echo ON
                  .tables
                  .schema


SQLite Query Logs - Option 2

                  sqlite3 mydatabase.db
                  .echo ON
                  .output my_log.txt
                  .schema


Questions

Database Encryption SQLCipher

Why Encrypted SQLite?

• Mobile: Android, iOS smartphones and tablets
• Wearables: Smartwatches, fitness trackers
• Smart TV: Securing user preferences and viewing history
• Desktop: Windows, macOS, Linux apps
• Compliance: Ensures GDPR, HIPAA, and security standards compliance

Clone SQLCipher Repository

git clone https://github.com/sqlcipher/sqlcipher.git

SQLCipher Encryption

Reference: SQLCipher GitHub Documentation

Encrypting with SQLCipher

                  sqlcipher mydatabase.db

                  sqlite> PRAGMA key = 'your_secure_password';
                  sqlite> CREATE TABLE flowers(id INTEGER, name TEXT);
                  sqlite> INSERT INTO flowers VALUES (1, 'Rose');
                  sqlite> .quit


Questions

⚠️ No Access Control in SQLite

• SQLite does not support user roles or permissions
• Anyone with access to the database file has full control
• No built-in authentication or authorization
• Use OS-level file permissions or encryption (e.g., SQLCipher) for protection

Penetration Testing

Phases of Penetration Testing

• Planning and Reconnaissance: Gathering information about the target
• Scanning: Identifying vulnerabilities
• Exploitation: Attempting to exploit discovered vulnerabilities
• Post-Exploitation: Assessing the impact of the exploit
• Reporting: Documenting findings and recommendations

Common Penetration Testing Tools

• Metasploit: Used for discovering and exploiting vulnerabilities
• Nmap: Network scanning tool for identifying open ports
• Burp Suite: Used for testing web application security
• Wireshark: Network protocol analyzer for monitoring traffic

Penetration Testing Standards

• OWASP Testing Guide: A comprehensive guide for testing web application security
• PTES (Penetration Testing Execution Standard): Defines the processes and methodologies for performing penetration tests
• OSSTMM (Open Source Security Testing Methodology Manual): Provides a detailed methodology for security testing
• CREST: A professional certification and standards organization for penetration testers

Software Vulnerabilities and Patches

Why Are Software Updates Critical?

• Fix security flaws and prevent exploits
• Patch vulnerabilities before attackers exploit them
• Improve performance and compatibility

Zero-Day Vulnerabilities

A security flaw unknown to the vendor, leaving systems exposed until a patch is released.

• Attackers exploit before a fix exists
• Used in ransomware, espionage, and malware
• Examples: Stuxnet, Log4Shell, MOVEit breach

Secure Software Update Strategies

• Digitally sign updates to prevent tampering
• Implement rollback protection
• Use over-the-air (OTA) updates securely
• Regularly scan for vulnerabilities

IoT Case Study

Case Study: Greenhouse Monitoring

IoT sensors track soil moisture and sync data from on-device SQLite to a PostgreSQL server.

• How can sensor data be secured against tampering?
• What redundancy prevents data loss during connectivity issues?

Case Study: Smart Flower Delivery

Orders are tracked in PostgreSQL, while IoT delivery boxes log temperature and humidity.

• How can shipment data be encrypted?
• What access control prevents unauthorized tracking?

Case Study: Unauthorized Smart Home Access

A smart thermostat was remotely accessed without user consent.

What authentication and logging controls should prevent this?

Case Study: Tampered IoT Updates

An attacker replaced an IoT device’s firmware update with malicious code.

How should update mechanisms be secured?

Module 12
Software Release Process in Industry 4.0

March 31, 2025

Software Release Process in Industry 4.0

• Alpha, Beta, and Gamma testing
• Release channels (App Store, .apk)
• Staged releases and rollbacks
• Feedback channels and user analytics
• V-Process model for validation and verification
• Continuous Integration & Continuous Deployment (CI/CD)
• Over-the-Air (OTA) updates for IoT devices
• Canary releases for risk mitigation
• Security & compliance checks (IEC 62443, NIST guidelines)
• Digital Twin testing for virtual release simulation

Alpha, Beta, and Gamma Testing

Release Channels

• App Store (iOS)
• Google Play Store (Android)
• Direct .apk Distribution
• Enterprise App Stores
• Third-Party Marketplaces

Staged Releases

• Gradual rollout to a small percentage of users
• Monitor performance and user feedback
• Increase availability in controlled steps
• Rollback if critical issues arise
• Ensures stability before full deployment

Feedback Channels and User Analytics

• Surveys and Comment Forms
• In-app feedback options
• Real-time analytics and usage data
• Customer support interactions
• User reviews and ratings

V-Process Model for Validation and Verification

• Requirements Analysis: N/A
• System Design: Early releases for architecture validation
• High-Level Design: Component integration and unit tests
• Low-Level Design: Functional and system testing releases
• Implementation: Weekly sprint releases and unit testing
• Unit Testing: Unit test releases and feedback collection
• Integration Testing: Component and integration testing releases
• System Testing: Full system test releases and validation
• User Acceptance Testing (UAT): Final user testing release before production
• Deployment: Final deployment release after UAT validation

Continuous Integration & Continuous Deployment (CI/CD)

• Frequent, automated builds and testing
• Quick release cycle (sometimes multiple per day)
• Automated deployment to production after successful tests
• Helps ensure constant code quality and fast feedback

Semantic Release

• Semantic Release automates version management and package publishing based on the commit messages
• Automates the process of determining the next version number based on the commit history
• Uses **Conventional Commits** to determine version increments:
• Major: Breaking changes
• Minor: New features
• Patch: Bug fixes
• Automatically generates changelogs and publishes to the registry

Over-the-Air (OTA) Updates for IoT Devices

• OTA Updates allow remote firmware updates for IoT devices without requiring physical access
• Enables automatic or manual updates over a network connection (Wi-Fi, cellular, etc.)
• Critical for maintaining the security, functionality, and performance of IoT devices
• Provides a reliable way to deploy bug fixes, feature enhancements, and security patches remotely
• Can be done incrementally or in bulk, depending on the device and update method

Manual Updates for IoT Devices

• Manual Updates require physical or manual intervention to install firmware updates on IoT devices
• Typically done through a USB drive, SD card, or direct connection to a computer or server
• Offers full control over when and how the update is applied
• Useful in situations where network access is limited or security concerns restrict OTA updates
• May require the device to be brought in for maintenance or servicing

Security & Compliance Checks

• IEC 62443 is a series of international standards focused on securing Industrial Automation and Control Systems (IACS)
• NIST Guidelines (e.g., NIST SP 800-53, NIST IR 8259A) provide cybersecurity frameworks for IoT devices and networks
• Both frameworks emphasize risk management, secure communication, and the protection of sensitive data in connected systems
• Regular security audits and compliance checks are crucial for maintaining system integrity and ensuring adherence to legal and industry standards
• Ensuring compliance with these standards helps prevent unauthorized access, data breaches, and other security risks in IoT systems

Digital Twin Testing for Virtual Release Simulation

• Digital Twin is a virtual representation of a physical device, system, or process that is used for testing, monitoring, and simulation
• It enables real-time simulation and testing of device behavior, performance, and responses to updates or changes in a controlled environment
• Helps in validating the impact of firmware updates or system changes before deploying them to physical devices
• Reduces risks by identifying potential issues or failures in the virtual environment before the actual deployment
• Can simulate complex systems and provide insights into performance, lifecycle, and behavior in real-world conditions

April 2, 2025

Software Release Process in Industry 4.0

• Semantic Versioning in GitHub
• Release Notes with GH
• Staged Releases and Rollbacks
• Feedback Channels and User Analytics

Semantic Versioning in GitHub

    # Create and push an Alpha tag
    git tag v1.0.0-alpha
    git push origin v1.0.0-alpha

    # Create and push a Beta tag
    git tag v1.0.0-beta
    git push origin v1.0.0-beta

    # Create and push a Release Candidate (Gamma) tag
    git tag v1.0.0-rc.1
    git push origin v1.0.0-rc.1


Writing Release Notes in GitHub

    # Create a tag locally
    git tag -a v1.0.0 -m "Version 1.0.0 - Initial Alpha Release"
    git push origin v1.0.0

    # Create a GitHub release using GitHub CLI
    gh release create v1.0.0 \
        --title "Version 1.0.0" \
        --notes "Initial alpha release of PlantWaterSystem."


Flask Backend - 10% Rollout

    from flask import Flask, jsonify
    import random

    app = Flask(__name__)

    @app.route('/')
    def homepage():
        if random.random() <= 0.1:
            return jsonify({"feature": "NewFeature"})
        return jsonify({"feature": "CurrentFeature"})

    app.run(debug=True)


Geographic Rollout (User Agent)

    from flask import request
    import geocoder

    @app.route('/')
    def check_geolocation():
        g = geocoder.ip('me')  # Get location based on IP
        country = g.country

        if country == 'United States':
            # Stage 1: U.S. only
            return "Feature available in U.S."
        else:
            # Full rollout
            return "Feature available globally"


Geographic Rollout (Browser)

navigator.geolocation.getCurrentPosition(function(position) {
    var lat = position.coords.latitude;
    var lon = position.coords.longitude;
    fetch(`https://api..?lat=${lat}&lng=${lon}`)
    .then(response => response.json())
    .then(data => {
        if(data.countryName === 'United States') {
            // Stage 1: Available in U.S.
            console.log("Feature available in U.S.");
        } else {
            // Full release: Global rollout
            console.log("Feature available globally.");
        }
    });
});

Other Rollout Conditions

Today: April 4, 2025

• HW + SW Integration and Release Process
• Quality vs Feature Scope
• Sprint Demo #9

Hardware Release Process in Industry 4.0

• No secrets on the device: Externalize sensitive data to avoid exposure
• Strict timeline: Ensure all integration steps are completed within deadlines
• Scalability: Plan for growth, ensuring the integration can handle increased load
• Monitoring and logging: Continuously track system performance and potential failures
• Compatibility: Ensure third-party hardware/software aligns with existing infrastructure.
• Security protocols: Use encryption and secure communication to protect data
• Version control: Manage updates and compatibility for seamless operation
• Integration risks: Potential issues with device failure, latency, compatibility, and security vulnerabilities

Data Volume Test

Module 13
Integrating ML/AI with Industry 4.0 Ecosystems

Today: April 7, 2025

• Course Review
• Sprint #10

Course Review (download FinalSample.docx)

Today: April 9, 2025

• Course Review via Case Study
• Team Presentation
• Sprint #11

Building an IoT Ship Navigation Software

• Real-time location tracking
• Route optimization and fuel efficiency
• Weather and obstacle alerts
• Integration with IoT sensors

Domain Knowledge on Cargo Ship and Vehicle

Cargo Ship Routing: Pre-Planned and Straightforward

Building an IoT Ship Navigation Software - Where to start?

• Real-time location tracking
• Route optimization and fuel efficiency
• Weather and obstacle alerts
• Integration with IoT sensors

Today: April 11, 2025

• Course Review
• Team Presentation
• Sprint #10

Course Review (download FinalSample3.docx)

Today: April 14, 2025

• Course Review
• Team Presentation
• Sprint #11 (MVP 2)

Building an IoT Forest Watering System

• Monitors soil moisture across different forest zones
• Automatically triggers irrigation during dry conditions
• Optimizes water usage using weather forecast data
• Alerts rangers for manual inspection when anomalies are detected

Building an IoT Glacier & Snow Monitoring System

• Measures snowpack depth, glacier movement, and melt rate
• Uses temperature, pressure, and weight sensors for precision
• Syncs with weather APIs for predictive analysis
• Sends alerts for avalanche risk and unusual melting patterns

Building an IoT Indoor Office Lighting System

• Adjusts lighting based on occupancy and natural light levels
• Uses motion, ambient light, and energy sensors
• Integrates with building management systems (BMS)
• Sends alerts for bulb failure or abnormal power usage

Questions

Today: April 16, 2025

• Semester Review
• Code Review
• Project Documentation
• Project Sprint #11 (MVP 2)

🌿 Sprout-ly Maintainability

https://github.com/SE4CPS/PlantWaterSystem

Questions

Sprint Demo #10

Backlog Grooming

Sprint Retrospective

Team Presentations

Module 14
Project Presentation

Module 15
Final Preparation

Syllabus

Software Engineering in Industry 4.0 Ecosystems (COMP 293F)

Class Schedule:

Time: 12:30 PM – 1:25 PM on Monday, Wednesday, Friday

Location: Benerd School of Education 208

Course Description

In this course on Software Engineering within Industry 4.0 ecosystems, we will explore the integration and application of IoT and Cyber-Physical Systems (CPS). The course takes a dual perspective approach.

• First, we focus on the design aspect, the team structure, the requirements, the user interface design, the architecture, and tracking.
• Second, we focus on the implementation, integration, testing, verification, validation, release, and maintenance part.

Industry 4.0 Ecosystem Exploration 1/2

• Exploring the requirements specific to Industry 4.0 ecosystems and their influence on software engineering practices
• Understanding the dynamics of team organization and coordination within these ecosystems.
• Examining resource constraints and their implications in Industry 4.0 settings
• Investigating the legal frameworks and regulations affecting Industry 4.0 projects
• Analyzing architectural constraints, including system design and scalability considerations.
• Studying the security challenges and strategies within Industry 4.0
• Reviewing resource management, optimization, and constraints in software projects

Industry 4.0 Ecosystem Exploration 2/2

• Delving into the development processes, standards, methodologies, and best practices for Industry 4.0 applications
• Focusing on testing and verification procedures specific to these advanced systems
• Addressing dependencies management in complex software environments
• Reviewing release cycles and continuous delivery in the context of Industry 4.0
• Updating strategies and lifecycle management for software in this dynamic field
• Integrating AI technologies with Industry 4.0 systems, exploring synergies and innovative solutions

Prerequisites

• COMP 51: Fundamental programming skills
• COMP 53: Basic data structures and algorithms

Teaching Assistant

Instructor

Textbooks:

• Managerial Challenges of Industry 4.0
• THE ESSENCE OF INDUSTRY 4.0
• Industry 4.0 Current Status and Future Trends
• Software Engineering

Grading

• Labs: 15%
• Homework: 15%
• Project: 40%
• Exams: 30%

Course Topics

• Industry 4.0 Ecosystems and Software Engineering Integration
• Organizational Dynamics in I4.0
• Addressing Legal Constraints
• Architectural Design Principles in I4.0
• Security Measures and Strategies
• Resource Management in I4.0 Environments
• Development Processes for I4.0 Applications
• Testing and Verification Methods
• Managing Dependencies in I4.0 Projects
• Release and Update Strategies for I4.0 Systems
• Incorporating AI in I4.0 Solutions

Assignments and Exams

Policies

• Attendance and Participation: Active participation is required. Additional points may be awarded for consistent engagement
• Late Submissions:
  • Late assignments accepted during the next class with a 20% penalty
  • No makeup exams unless excused for valid reasons
• Academic Integrity: Academic dishonesty (e.g., plagiarism, cheating) will result in a grade of zero for the assignment or more severe penalties for repeated offenses.
• Collaboration: Collaborative problem-solving is encouraged but must stop short of sharing code or written work
• Accommodations: Students requiring accommodations should contact the Office of Services for Students with Disabilities at McCaffrey Center, Rm. 137.
  • Phone: 209-946-3221
  • Email: ssd@pacific.edu
  • Website: Disabilities Support

Canvas and Course Updates

All course materials, announcements, and assignments will be posted on Canvas. Check regularly for updates

Honor Code

Students are expected to act with integrity, honesty, and responsibility. Violations of the Honor Code will be reported to the Office of Student Conduct and Community Standards

For more details, see the University Academic Honesty Policy

Source Document: Course Syllabus

Questions?

Project
